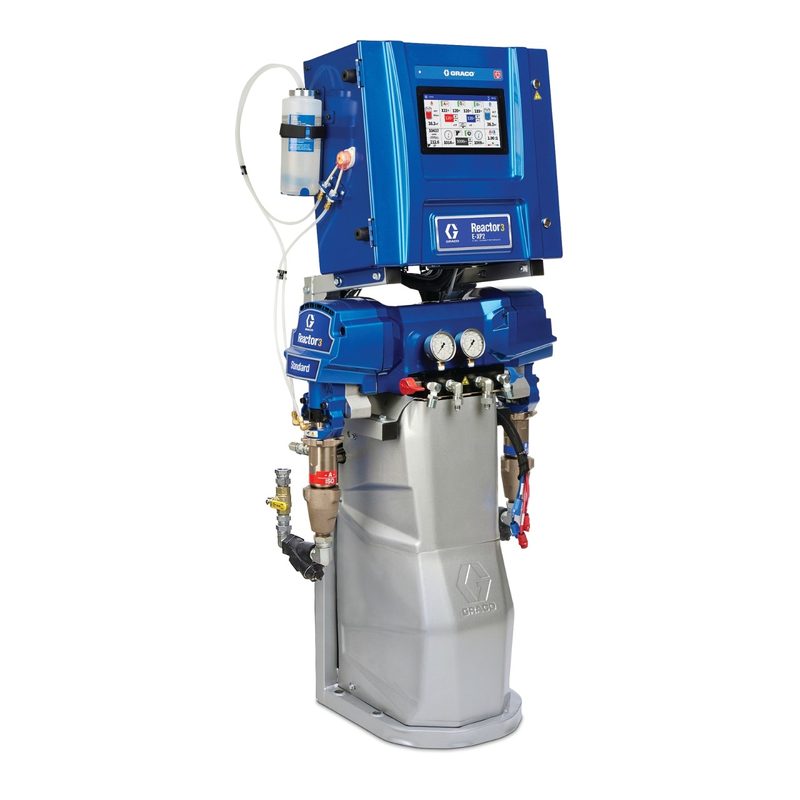

Graco Reactor 3 E-XP2 Standard Tier Polyurea Proportioner Package, 200 ft External Heated Hose, 15 kW
Pricing
Request a quote
We reply within 24 hours
Product Description
Graco EHR340 Reactor 3 E-XP2 Standard Tier Polyurea Proportioner Package, 200 ft External Heated Hose, 15 kW, part number EHR340. Graco Reactor 3 E-XP2 Standard Tier Polyurea Proportioner Package proportioner package. 15 kW heater. 3500 psi maximum spray pressure. 2 gpm maximum flow. 200 ft heated hose. All values read from the Graco product page (EHR340 on graco.com).
Technical Specifications
- Brand
- Graco
- Family
- Reactor 3 E-XP2 Standard Tier Polyurea Proportioner Package
- Part number
- EHR340
- Amperage (A)
- 97A 1–ph, 59A 3–ph DELTA, 35A 3–ph WYE
- Frequency (Hz)
- 50/60
- Hose Length (ft)
- 200
- Maximum Flow Rate (GPM)
- 2
- Maximum Fluid Temperature (°F)
- 190
- Maximum Spray Pressure (MPa)
- 24.1
- Maximum Spray Pressure (psi)
- 3500
- Model
- Reactor 3
- Overall Depth (in)
- 15
- Overall Height (in)
- 56.5
- Overall Width (in)
- 26.8
- Power Rating (kW)
- 15
- Product Series
- Standard
- Type
- Proportioner Package
- Voltage (V)
- 200-240 VAC, 1–ph, 200-240 VAC,3–ph DELTA, 350-415 VAC,3–ph WYE
- Weight (lb)
- 315
- Maximum Flow Rate (L/min)
- 7.6
- Maximum Fluid Temperature (°C)
- 88
- Maximum Spray Pressure (bar)
- 241
- Weight (kg)
- 143
Standards & Compliance
- Pressure Rating
- 3500 psi max
- Temperature Range
- fluid up to 190 °F
- HS Code
- 8424.20
Compatibility & Fitment
Complete proportioner/spray system package. Confirm voltage/phase, heater rating, mix ratio and heated-hose length against the coating and layout before ordering; bundled items are listed in the specifications.
