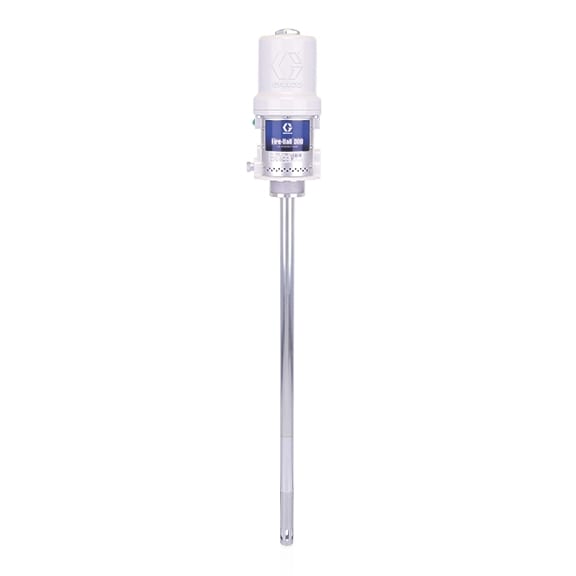

Graco Fire-Ball 300 50:1 grease pump, 400 lb (181 kg) drum length
Pricing
Request a quote
We reply within 24 hours
Product Description
Graco Fire-Ball 300 air-operated piston grease pump, model 239888 (Series E), 50:1 ratio, 400 lb (181 kg) drum length. Double-acting pump driven by a 3 in. (76 mm) differential air motor for grease dispense from 400 lb drums. Maximum fluid working pressure 8400 psi (58 MPa, 580 bar).
Technical Specifications
- Brand
- Graco Range: Fire-Ball 300 (air-operated piston grease pump) Model number: 239888 (Series E) Pump ratio: 50:1 Container size: 400 lb (181 kg) drum length Maximum fluid working pressure: 8400 psi (58 MPa, 580 bar) Maximum air input pressure: 140 psi (0.97 MPa, 9.7 bar) Air pressure operating range: 30-140 psi (0.3-0.97 MPa, 3-9.7 bar) Air motor effective diameter: 3.0 in (76 mm) Maximum delivery: 0.22 gpm (0.82 lpm) at 76 cycles/min Air consumption: approx. 22.8 cfm at 0.25 gpm at 100 psi Wetted parts: steel, brass, aluminium, acetal, nitrile rubber, polyurethane Weight: 22 lb (10 kg) Sound pressure level: 77.8 dB(A); sound power level: 85.6 dB(A)
Standards & Compliance
- Material
- Steel, brass, aluminium, acetal, nitrile rubber, polyurethane (wetted parts)
- Pressure Rating
- 8400 psi (58 MPa, 580 bar)
- HS Code
- 8413.50
Compatibility & Fitment
Fire-Ball 300 50:1 series; the 120 lb drum-length version is model 239887 and the pail-length version 239877. The 239888 fits 400 lb (181 kg) grease drums.
Product Documentation
More from Graco
Graco
Graco Husky 515 air-operated double diaphragm pump, polypropylene, 1/2 in., PTFE diaphragm
D52911
Graco
Graco Husky 716 air-operated double diaphragm pump, aluminium, 3/4 in., PP seats, PTFE diaphragm
D53911
Graco
Graco Husky 1590 air-operated double diaphragm pump, polypropylene, 1-1/2 in. ANSI flange
DB2966
Graco
Graco Husky 2150 air-operated double diaphragm pump, polypropylene, 2 in. NPT
DF2911
Graco
Graco Husky 2150 air-operated double diaphragm pump, PVDF, 2 in. NPT
DF5A11
Graco
Graco Husky 3300 air-operated double diaphragm pump, polypropylene, 3 in.
652404
Graco
Graco Husky 2150 air-operated double diaphragm pump, aluminium, 2 in. NPT, stainless steel seats, PTFE balls, PTFE overmolded diaphragm
24G413
Graco
Graco Husky 2150 air-operated double diaphragm pump, aluminium, 2 in. NPT, Santoprene seats, balls and diaphragm
DF3666
Catalogue entry last verified: 2026-08-30. A manufacturer datasheet is attached to this entry — confirm application-critical values against it.
Frequently asked questions
- Where can I buy 239888?
- 239888 can be ordered from cballast.com as a Graco catalogue item: request a quotation on this page or email sales@cballast.com, and the order ships worldwide.
- What is the manufacturer part number for this Graco product?
- The manufacturer part number is 239888.
- What is the HS code for 239888?
- The customs tariff (HS) code for 239888 is 8413.50.
- Who manufactures 239888?
- 239888 is a Graco product in the Lubrication Systems range.
- Is a datasheet available for 239888?
- Yes — the 239888 datasheet can be viewed and downloaded on this page.
- What is the minimum order quantity for 239888?
- The minimum order quantity is 1.
- Is 239888 available?
- Yes — 239888 is available to order: fulfilment is from supplier stock in cBallast's European network, dispatched directly from the warehouse to the customer, with the exact lead time stated in the quotation (reply within 24 hours).
