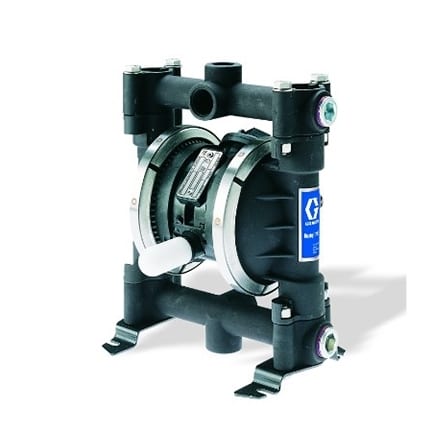

Graco Husky 716 air-operated double diaphragm pump, aluminium, 3/4 in., PP seats, PTFE diaphragm

Graco Husky 716 air-operated double diaphragm (AODD) pump, part number D53911, aluminium fluid section with a 3/4 in. fluid connection. Polypropylene seats, PTFE balls and a PTFE diaphragm. Stall-free, low-pulsation air valve for a smooth, rapid changeover; in-field serviceable air valve and ball checks. Maximum free-flow delivery 16 gpm (61 lpm) at up to 100 psi (7 bar) fluid pressure.

Brand

Graco

Range

Husky 716 (air-operated double diaphragm)

Part number

D53911

Fluid section

aluminium

Configuration

aluminium body, polypropylene seats, PTFE balls, PTFE diaphragm

Maximum fluid working pressure

100 psi (7 bar, 0.7 MPa)

Maximum free-flow delivery

16 gpm (61 lpm)

Maximum pump speed

400 cpm

Displacement per cycle

0.04 gallon (0.15 liter)

Maximum suction lift

15 ft (4.5 m) dry

Maximum size pumpable solids

0.09 in (2.5 mm)

Maximum ambient operating temperature

180 F (82 C)

Typical sound level at 70 psi air at 200 cpm

74 dBa

Maximum air consumption

28 scfm (0.672 m3/min)

Air pressure operating range

30 to 100 psi (2.1 to 7 bar, 0.21 to 0.7 MPa)

Air inlet size

1/4 npt(f)

Air exhaust port size

3/8 npt(f)

Fluid inlet and outlet size

3/4 npt(f) or bspt(f)

Weight

8.5 lb (3.9 kg)

Wetted parts (aluminium pump)

Aluminum, Stainless Steel, PTFE, Buna-N, Santoprene, Zinc-Plated Steel

Material

Aluminium (fluid section)

Pressure Rating

100 psi (7 bar, 0.7 MPa)

HS Code

8413.81
