Product Description

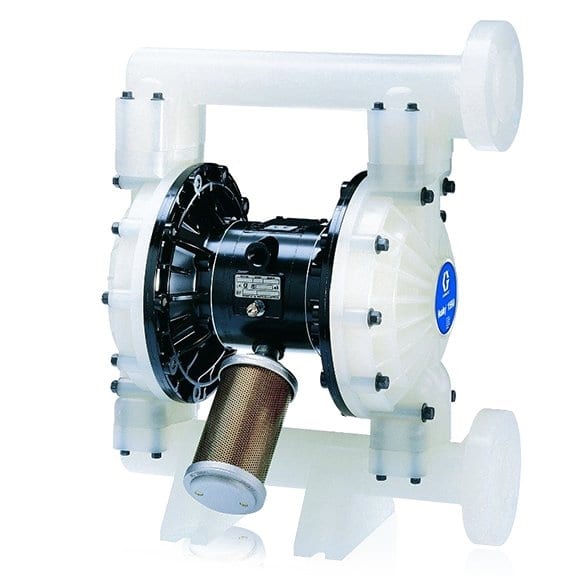

Graco Husky 1590 air-operated double diaphragm (AODD) pump, part number DB2966, polypropylene fluid section with an aluminium center section and 1-1/2 in. (38.1 mm) ANSI-flange ports. Polypropylene seats with Santoprene balls and a Santoprene diaphragm. Online-serviceable closed-center air valve and epoxy-coated air section. Maximum free-flow delivery 100 gpm (378.5 lpm) at up to 120 psi (8.4 bar) fluid pressure.
Technical Specifications
- Brand
- Graco
- Range
- Husky 1590 (air-operated double diaphragm)
- Part number
- DB2966
- Fluid section
- polypropylene
- Configuration
- polypropylene body, aluminium center section, polypropylene seats, Santoprene balls, Santoprene diaphragm
- Maximum fluid working pressure
- 120 psi (8.4 bar, 0.84 MPa)
- Maximum free-flow delivery
- 100 gpm (378.5 lpm)
- Maximum pump speed
- 200 cpm
- Displacement per cycle
- 0.5 gallon (1.96 liter)
- Maximum suction lift
- 20 ft (6.1 m) dry
- Maximum size pumpable solids
- 0.19 in (4.8 mm)
- Maximum operating temperature
- 150 F (65.5 C)
- Maximum diaphragm operating temperature (Santoprene)
- 180 F (82.2 C)
- Typical sound level at 70 psi air at 125 cpm
- 77 dBa
- Maximum air consumption
- 125 scfm (3.5 m3/min)
- Air pressure operating range
- 20 to 120 psi (1.4 to 8.4 bar, 0.14 to 0.84 MPa)
- Air inlet size
- 1/2 npt(f)
- Fluid inlet and outlet size
- 1-1/2 in (38.1 mm) ANSI flange
- Weight
- 35 lb (16 kg)
- Weight with stainless steel center section
- 48.3 lb (21.9 kg)
Standards & Compliance
- Material
- Polypropylene (fluid section)
- Pressure Rating
- 120 psi (8.4 bar, 0.84 MPa)
- HS Code
- 8413.81
Compatibility & Fitment
Husky 1590 series, 1-1/2 in. ANSI-flange AODD pump — the large-flow end of the Husky line above the 3/4 in. Husky 716 (D53911). Seat, ball and diaphragm materials are selected by configuration; confirm fluid compatibility before ordering.
