Product Description

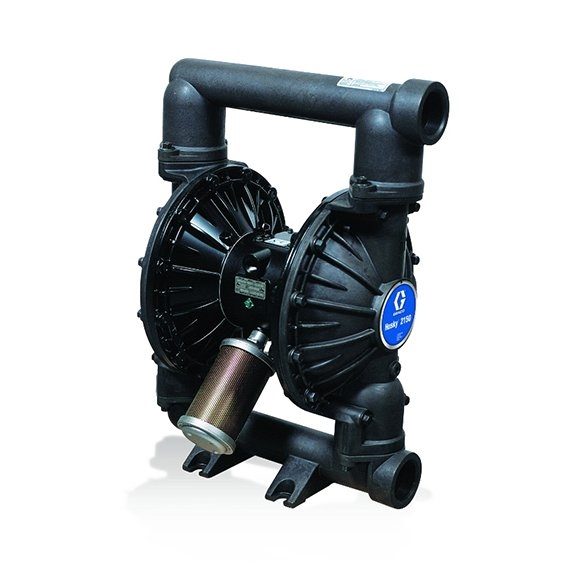

Graco DG3777 Husky 2150 AL 2 in. (51 mm) NPT Remote Pump, AL Center Section, BN Seats, BN Balls & BN Diaphragm, part number DG3777. Graco SG3 air-operated double-diaphragm (AODD) pump. 120 psi maximum fluid pressure. 150 gpm maximum flow rate. End Port manifold. Center section Aluminum. Fluid section Aluminum. Buna-N balls. Buna-N seats. Buna-N diaphragms. Handles solids to 0.25 in. All values read from the Graco product page (DG3777 on graco.com).
Technical Specifications
- Brand
- Graco
- Line
- SG3
- Part number
- DG3777
- Air Exhaust Port Size (in)
- 3/4
- Air Exhaust Port Thread Gender
- Female
- Air Exhaust Port Thread Type
- NPT
- Air Inlet Size (in)
- 1/2
- Air Inlet Thread Gender
- Female
- Air Inlet Thread Type
- NPT
- Application
- Industrial
- Ball Material
- Buna-N
- Center Section Material
- Aluminum
- Diaphragm Compatible Material
- Buna
- Diaphragm Material
- Buna-N
- Fluid Inlet Size (in)
- 2
- Fluid Inlet Thread Gender
- Female
- Fluid Inlet Thread Type
- NPT
- Fluid Outlet Size (in)
- 2
- Fluid Outlet Thread Gender
- Female
- Fluid Outlet Thread Type
- NPT
- Fluid Section Material
- Aluminum
- Manifold Configuration
- End Port
- Material
- Aluminum
- Maximum Air Consumption (SCFM)
- 175
- Maximum Air Pressure (psi)
- 120
- Maximum Cycle Rate (CPM)
- 145
- Maximum Flow Rate (GPM)
- 150
- Maximum Fluid Pressure (psi)
- 120
- Maximum Operating Temperature (°F)
- 150
- Maximum Solid Size (in)
- 0.25
- Model
- Husky
- Power Source
- Air
- Seat Material
- Buna-N
- Standards Met
- ATEX, CE
- Type
- Pneumatic Diaphragm Pump
- Weight (lb)
- 58
- Fluid Inlet Size (mm)
- 50.8
- Fluid Outlet Size (mm)
- 50.8
- Maximum Air Pressure (bar)
- 8
- Maximum Flow Rate (L/min)
- 568
- Maximum Fluid Pressure (bar)
- 8
- Maximum Operating Temperature (°C)
- 66
- Maximum Solid Size (cm)
- 0.635
- Maximum Solid Size (mm)
- 6.35
Standards & Compliance
- Material
- Fluid section: Aluminum
- Pressure Rating
- 120 psi max
- HS Code
- 8413.81
Compatibility & Fitment
Air-operated double-diaphragm (AODD) pump. Confirm center-section / fluid-section / ball / seat / diaphragm materials and the fluid and air port threads against the fluid before ordering; the "DG" prefix denotes the remote-mount manifold variant.
Product Documentation
More from Graco
Graco
Graco GMAX II 3900 Standard Series Gas Airless Sprayer, Lo-Boy
17E826
Graco
Graco GMAX 3400 Standard Series Gas Airless Sprayer
17E825
Graco
Graco GMAX II 3900 Standard Series Gas Airless Sprayer, Hi-Boy
17E827
Graco
Graco GMAX II 3900 ProContractor Series Gas Airless Sprayer
17E828
Graco

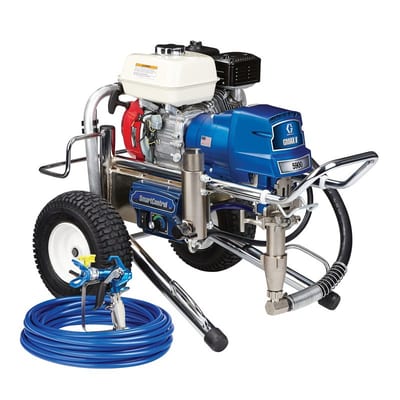

Graco GMAX II 5900 Standard Series Gas Airless Sprayer, Lo-Boy
17E829
Graco

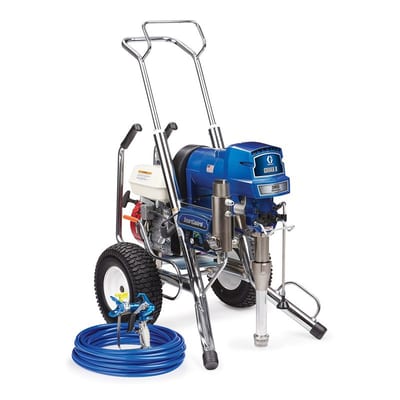

Graco GMAX II 5900 Convertible Standard Series Gas Airless Sprayer
17E830
Graco

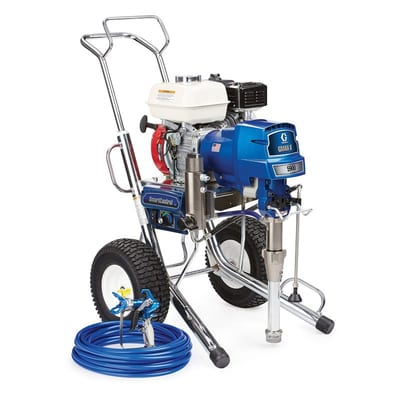

Graco GMAX II 5900 Standard Series Gas Airless Sprayer, Hi-Boy
17E831
Graco

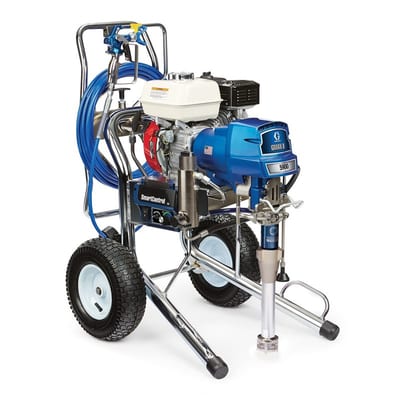

Graco GMAX II 5900 ProContractor Series Gas Airless Sprayer
