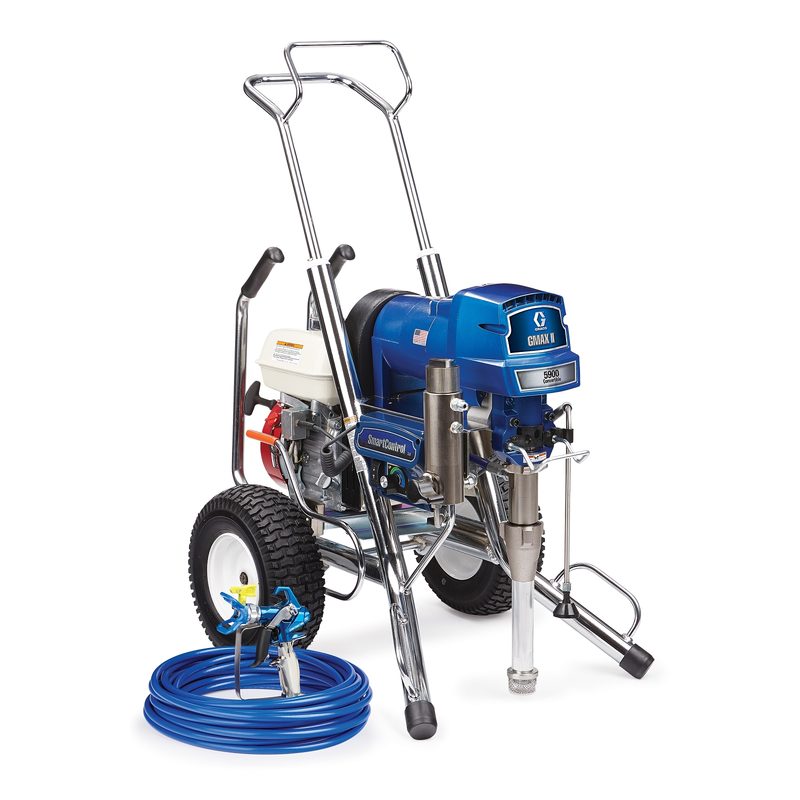

Graco GMAX II 5900 Convertible Standard Series Gas Airless Sprayer
Pricing
Request a quote
We reply within 24 hours
Product Description
Graco 17E830 GMAX II 5900 Convertible Standard Series Gas Airless Sprayer, part number 17E830. Graco GMax airless sprayer. Honda 6.5 HP engine. 3300 psi maximum working pressure. 1.6 gpm maximum flow rate. Maximum tip size 0.043 in. 3 gun(s) supported. Wetted material Acetal, Aluminum, Chrome Plating, Fluoroelastomer, Leather, Nylon, PTFE, Polyurethane, Stainless Steel, Tungsten Carbide, UHMWPE, Zinc-Plated Carbon Steel, Nickel-Plated Carbon Steel. All values read from the Graco product page (17E830 on graco.com).
Technical Specifications
- Brand
- Graco
- Line
- GMax
- Part number
- 17E830
- Compatible Electric Motor Kits
- 245095
- Convertible
- Convertible
- Engine Brand
- Honda
- Engine Size (HP)
- 6.5
- Features
- Endurance Chromex Pump, SmartControl 3.0, Honda Engine, Advantage Drive, Easy Out Filter, Heavy-Duty Prime Valve, Convertible, Contractor PC Gun
- Fluid Inlet Size (in)
- 1-5/16
- Fluid Inlet Thread Type
- UN-2A
- Fluid Outlet Size (in)
- 1/4
- Fluid Outlet Thread Type
- NPSM
- Hose Inlet Diameter (in)
- 1/4
- Includes
- Contractor PC Gun, RAC X LP 517 Spray Tip, RAC X Guard, 1/4 in x 50 ft BlueMax II Airless Hose
- Inlet Paint Strainer
- 8 Mesh Stainless Steel Screen
- Maximum Flow Rate (GPM)
- 1.6
- Maximum Sound Pressure Level (dB(A))
- 96
- Maximum Tip Size (in)
- 0.043
- Maximum Tip Size 1 Gun (in)
- 0.043
- Maximum Tip Size 1 Gun - Electric Motor (in)
- 0.031
- Maximum Tip Size 2 Guns (in)
- 0.029
- Maximum Tip Size 2 Guns - Electric Motor (in)
- 0.017
- Maximum Tip Size 3 Guns (in)
- 0.023
- Maximum Working Pressure (MPa)
- 22.8
- Maximum Working Pressure (psi)
- 3300
- Model
- GMAX II
- Number of Guns
- 3
- Outlet Paint Filter
- 60 Mesh Stainless Steel Screen
- Overall Height (in)
- 43.8
- Overall Length (in)
- 37.7
- Overall Width (in)
- 24.4
- Power Rating (HP)
- 6.5
- Power Rating (W)
- 4847
- Power Rating (kW)
- 4.85
- Power Source
- Gas
- Pressure Control Type
- SmartControl 3.0
- Product Series
- Standard
- Pump Mount Type
- QuikChange
- Pump Rod Type
- Chromex
- Pump Sleeve Material
- Stainless Steel
- Pump Type
- Endurance
- Series
- 5900
- Type
- Airless Sprayer
- Weight (lb)
- 167
- Wetted Material
- Acetal, Aluminum, Chrome Plating, Fluoroelastomer, Leather, Nylon, PTFE, Polyurethane, Stainless Steel, Tungsten Carbide, UHMWPE, Zinc-Plated Carbon Steel, Nickel-Plated Carbon Steel
- Fluid Inlet Size (mm)
- 33.34
- Fluid Outlet Size (mm)
- 6.35
- Hose Inlet Diameter (cm)
- 0.635
- Hose Inlet Diameter (mm)
- 6.35
- Maximum Flow Rate (L/min)
- 6.06
- Maximum Working Pressure (bar)
- 228
- Maximum Working Pressure (kPa)
- 22800
- Overall Height (cm)
- 111.3
- Overall Height (mm)
- 1113
- Overall Length (cm)
- 95.8
- Overall Length (mm)
- 958
- Overall Width (cm)
- 62.0
- Overall Width (mm)
- 620
- Power Rating (cc)
- 200
- Recommended Annual Usage
- Up to 1,000 gallons per week
- Weight (kg)
- 76
Standards & Compliance
- Material
- Acetal, Aluminum, Chrome Plating, Fluoroelastomer, Leather, Nylon, PTFE, Polyurethane, Stainless Steel, Tungsten Carbide, UHMWPE, Zinc-Plated Carbon Steel, Nickel-Plated Carbon Steel
- Pressure Rating
- 3300 psi max
- HS Code
- 8424.20
Compatibility & Fitment
Complete spray system/package. Confirm engine/power source, maximum tip size, number of guns and wetted material against the coating and layout before ordering; bundled items are listed under "Includes" in the specifications.
