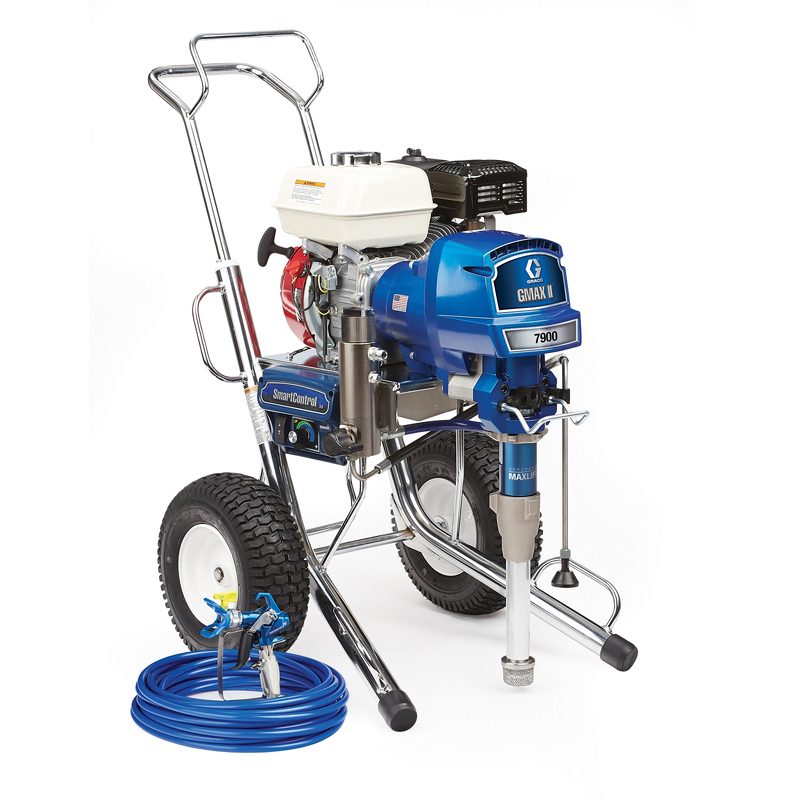

Graco GMAX II 7900 Standard Series Gas Airless Sprayer, Hi-Boy
Pricing
Request a quote
We reply within 24 hours
Product Description
Graco 17E836 GMAX II 7900 Standard Series Gas Airless Sprayer, Hi-Boy, part number 17E836. Graco GMax airless sprayer. Honda 6.5 HP engine. 3300 psi maximum working pressure. 2.2 gpm maximum flow rate. Maximum tip size 0.048 in. 4 gun(s) supported. Hi-Boy frame. Wetted material Acetal, Aluminum, Chrome Plating, Fluoroelastomer, Leather, Nylon, PTFE, Polyurethane, Stainless Steel, Tungsten Carbide, UHMWPE, Zinc-Plated Carbon Steel, Nickel-Plated Carbon Steel. All values read from the Graco product page (17E836 on graco.com).
Technical Specifications
- Brand
- Graco
- Line
- GMax
- Part number
- 17E836
- Convertible
- Non-Convertible
- Engine Brand
- Honda
- Engine Size (HP)
- 6.5
- Features
- Endurance MaxLife Pump, SmartControl 3.0, Honda Engine, Advantage Drive, Easy Out Filter, Heavy-Duty Prime Valve, Contractor PC Gun
- Fluid Inlet Size (in)
- 1-5/16
- Fluid Inlet Thread Type
- UN-2A
- Fluid Outlet Size (in)
- 3/8
- Fluid Outlet Thread Type
- NPSM
- Frame Configuration
- Hi-Boy
- Hose Inlet Diameter (in)
- 1/4
- Includes
- Contractor PC Gun, RAC X LP 517 Spray Tip, RAC X Guard, 3/8 in x 50 ft (15 m) BlueMax II Airless Hose, 1/4 in x 3 ft (0.9 m) BlueMax II Airless Whip Hose, TSL 4 oz (118 ml)
- Inlet Paint Strainer
- 8 Mesh Stainless Steel Screen
- Maximum Flow Rate (GPM)
- 2.2
- Maximum Sound Pressure Level (dB(A))
- 96
- Maximum Tip Size (in)
- 0.048
- Maximum Tip Size 1 Gun (in)
- 0.048
- Maximum Tip Size 2 Guns (in)
- 0.035
- Maximum Tip Size 3 Guns (in)
- 0.027
- Maximum Tip Size 4 Guns (in)
- 0.023
- Maximum Working Pressure (MPa)
- 22.8
- Maximum Working Pressure (psi)
- 3300
- Model
- GMAX II
- Number of Guns
- 4
- Outlet Paint Filter
- 60 Mesh Stainless Steel Screen
- Overall Height (in)
- 40.5
- Overall Length (in)
- 38.1
- Overall Width (in)
- 24.4
- Power Rating (HP)
- 6.5
- Power Rating (W)
- 4847
- Power Rating (kW)
- 4.85
- Power Source
- Gas
- Pressure Control Type
- SmartControl 3.0
- Product Series
- Standard
- Pump Mount Type
- QuikChange
- Pump Rod Type
- MaxLife
- Pump Sleeve Material
- MaxLife
- Pump Type
- Endurance
- Series
- 7900
- Type
- Airless Sprayer
- Weight (lb)
- 148
- Wetted Material
- Acetal, Aluminum, Chrome Plating, Fluoroelastomer, Leather, Nylon, PTFE, Polyurethane, Stainless Steel, Tungsten Carbide, UHMWPE, Zinc-Plated Carbon Steel, Nickel-Plated Carbon Steel
- Fluid Inlet Size (mm)
- 33.34
- Fluid Outlet Size (mm)
- 9.525
- Hose Inlet Diameter (cm)
- 0.635
- Hose Inlet Diameter (mm)
- 6.35
- Maximum Flow Rate (L/min)
- 8.33
- Maximum Working Pressure (bar)
- 228
- Maximum Working Pressure (kPa)
- 22800
- Overall Height (cm)
- 102.9
- Overall Height (mm)
- 1029
- Overall Length (cm)
- 96.8
- Overall Length (mm)
- 968
- Overall Width (cm)
- 62.0
- Overall Width (mm)
- 620
- Power Rating (cc)
- 200
- Recommended Annual Usage
- Up to 1,000 gallons per week
- Weight (kg)
- 67
Standards & Compliance
- Material
- Acetal, Aluminum, Chrome Plating, Fluoroelastomer, Leather, Nylon, PTFE, Polyurethane, Stainless Steel, Tungsten Carbide, UHMWPE, Zinc-Plated Carbon Steel, Nickel-Plated Carbon Steel
- Pressure Rating
- 3300 psi max
- HS Code
- 8424.20
Compatibility & Fitment
Complete spray system/package. Confirm engine/power source, maximum tip size, number of guns and wetted material against the coating and layout before ordering; bundled items are listed under "Includes" in the specifications.
