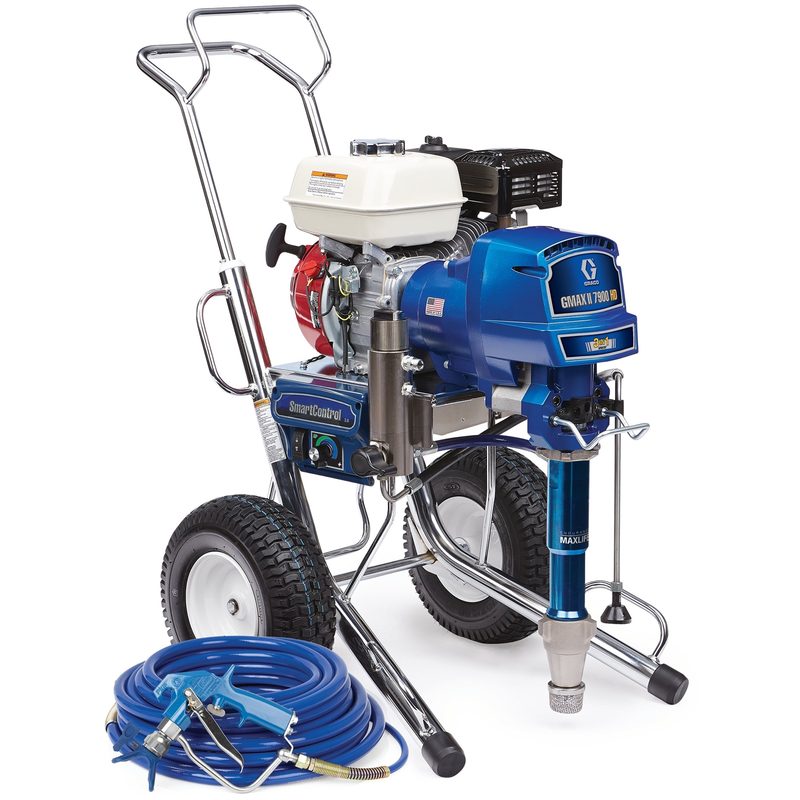

Graco GMAX II 7900 HD 3-IN-1 Standard Series Gas Airless Sprayer
Pricing
Request a quote
We reply within 24 hours
Product Description
Graco 17E841 GMAX II 7900 HD 3-in-1 Standard Series Gas Airless Sprayer, part number 17E841. Graco GMax airless sprayer. Honda 6.5 HP engine. 3300 psi maximum working pressure. 2.2 gpm maximum flow rate. Maximum tip size 0.048 in. 4 gun(s) supported. Cart frame. Wetted material Acetal, Aluminum, Chrome Plating, Fluoroelastomer, Leather, Nylon, PTFE, Polyurethane, Stainless Steel, Tungsten Carbide, UHMWPE, Zinc-Plated Carbon Steel, Nickel-Plated Carbon Steel. All values read from the Graco product page (17E841 on graco.com).
Technical Specifications
- Brand
- Graco
- Line
- GMax
- Part number
- 17E841
- Compatible Replacement Pump
- 25E689
- Convertible
- Non-Convertible
- Engine Brand
- Honda
- Engine Size (HP)
- 6.5
- Engine Size (kW)
- 4.85
- Features
- Endurance MaxLife Pump, MaxFlo 2, SmartControl 3.0, Advantage Drive, Honda Engine, Easy Out Filter, Heavy-Duty Prime Valve
- Fluid Inlet Size (in)
- 1-5/16
- Fluid Inlet Thread Type
- UN-2A
- Fluid Outlet Size (in)
- 3/8
- Fluid Outlet Thread Type
- NPSM
- Frame Configuration
- Cart
- Hose Inlet Diameter (in)
- 3/8
- Includes
- Heavy-Duty Blue Texture Gun, RAC X LTX 427 Spray Tip, RAC X LTX 531 Spray Tip, RAC X Guard, 3/8 in x 50 ft BlueMax II Airless Hose, 1/4 in x 3 ft BlueMax II Airless Whip Hose
- Inlet Paint Strainer
- 8 Mesh Stainless Steel Screen
- Maximum Flow Rate (GPM)
- 2.2
- Maximum Sound Pressure Level (dB(A))
- 96
- Maximum Tip Size (in)
- 0.048
- Maximum Tip Size 1 Gun (in)
- 0.048
- Maximum Tip Size 2 Guns (in)
- 0.035
- Maximum Tip Size 3 Guns (in)
- 0.027
- Maximum Tip Size 4 Guns (in)
- 0.023
- Maximum Working Pressure (MPa)
- 22.8
- Maximum Working Pressure (psi)
- 3300
- Model
- GMAX II HD
- Number of Guns
- 4
- Outlet Paint Filter
- 60 Mesh Stainless Steel Screen
- Overall Height (in)
- 40.5
- Overall Length (in)
- 38.1
- Overall Width (in)
- 24.4
- Power Rating (HP)
- 6.5
- Power Rating (W)
- 4847
- Power Rating (kW)
- 4.85
- Power Source
- Gas
- Pressure Control Type
- SmartControl 3.0
- Product Series
- Standard
- Pump Mount Type
- QuikChange
- Pump Rod Type
- MaxLife
- Pump Sleeve Material
- MaxLife
- Series
- 7900
- Type
- Airless Sprayer
- Weight (lb)
- 153
- Wetted Material
- Acetal, Aluminum, Chrome Plating, Fluoroelastomer, Leather, Nylon, PTFE, Polyurethane, Stainless Steel, Tungsten Carbide, UHMWPE, Zinc-Plated Carbon Steel, Nickel-Plated Carbon Steel
- Fluid Inlet Size (mm)
- 33.34
- Fluid Outlet Size (mm)
- 9.525
- Hose Inlet Diameter (cm)
- 0.9525
- Hose Inlet Diameter (mm)
- 9.525
- Maximum Flow Rate (L/min)
- 8.33
- Maximum Working Pressure (bar)
- 228
- Maximum Working Pressure (kPa)
- 22800
- Overall Height (cm)
- 102.9
- Overall Height (mm)
- 1029
- Overall Length (cm)
- 96.8
- Overall Length (mm)
- 968
- Overall Width (cm)
- 62.0
- Overall Width (mm)
- 620
- Recommended Annual Usage
- 100-200 gallons per week
- Weight (kg)
- 70
Standards & Compliance
- Material
- Acetal, Aluminum, Chrome Plating, Fluoroelastomer, Leather, Nylon, PTFE, Polyurethane, Stainless Steel, Tungsten Carbide, UHMWPE, Zinc-Plated Carbon Steel, Nickel-Plated Carbon Steel
- Pressure Rating
- 3300 psi max
- HS Code
- 8424.20
Compatibility & Fitment
Complete spray system/package. Confirm engine/power source, maximum tip size, number of guns and wetted material against the coating and layout before ordering; bundled items are listed under "Includes" in the specifications.
