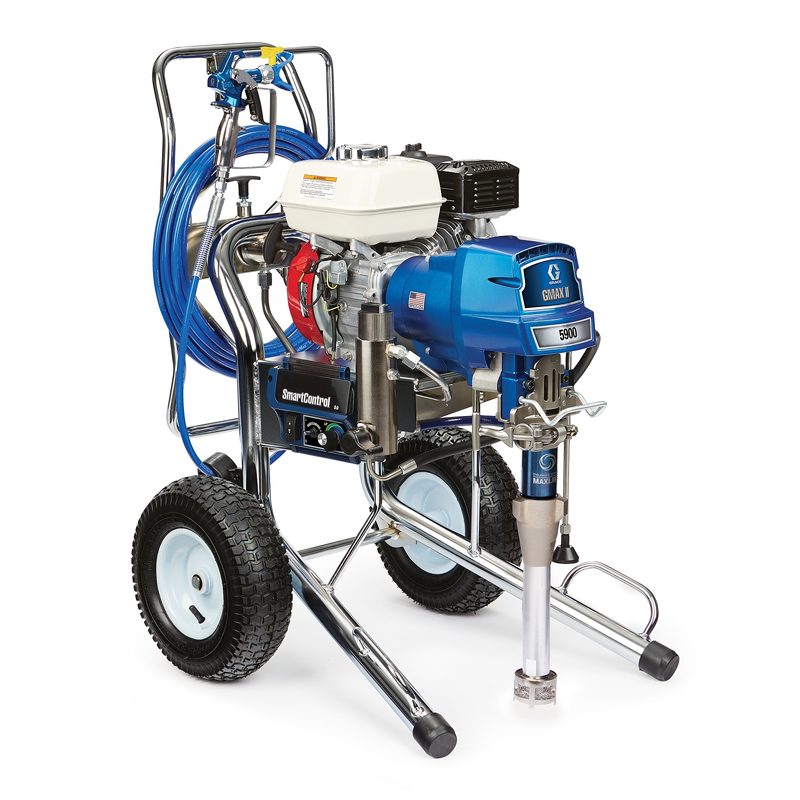

Graco GMAX II 5900 ProContractor Series Gas Airless Sprayer
Pricing
Request a quote
We reply within 24 hours
Product Description
Graco 17E832 GMAX II 5900 ProContractor Series Gas Airless Sprayer, part number 17E832. Graco GMax airless sprayer. Honda 6.5 HP engine. 3300 psi maximum working pressure. 1.6 gpm maximum flow rate. Maximum tip size 0.043 in. 3 gun(s) supported. Hi-Boy frame. Wetted material Acetal, Aluminum, Chrome Plating, Fluoroelastomer, Leather, Nylon, PTFE, Polyurethane, Stainless Steel, Tungsten Carbide, UHMWPE, Zinc-Plated Carbon Steel, Nickel-Plated Carbon Steel. All values read from the Graco product page (17E832 on graco.com).
Technical Specifications
- Brand
- Graco
- Line
- GMax
- Part number
- 17E832
- Compatible Material
- Stains, Oil, Lacquer, Primers, Fillers, Acrylics, Interior Emulsions, Exterior Emulsions, Latex, Anti-Corrosive Paints
- Compatible Replacement Pump
- 17H824
- Convertible
- Non-Convertible
- Engine Brand
- Honda
- Engine Size (HP)
- 6.5
- Features
- Endurance Vortex MaxLife Pump, SmartControl 3.0, QuikReel, Honda Engine, Advantage Drive, ProConnect 2, Easy Out Filter, Crushproof Inlet Strainer, Heavy-Duty Prime Valve, WatchDog, LED Display, Contractor PC Gun
- Filter Mesh Size
- 60
- Fluid Hose Inside Diameter (in)
- 1/4
- Fluid Inlet Size (in)
- 1-5/16
- Fluid Inlet Thread Type
- UN-2A
- Fluid Outlet Size (in)
- 1/4
- Fluid Outlet Thread Type
- NPSM
- Frame Configuration
- Hi-Boy
- Hose Inlet Diameter (in)
- 1/4
- Hose Reel Type
- QuikReel
- Includes
- Contractor PC Gun, RAC X LP 517 Spray Tip, RAC X Guard, 3/8 in x 50 ft (15 m) BlueMax II Airless Hose, 1/4 in x 3 ft (0.9 m) BlueMax II Airless Whip Hose, TSL 4 oz (118 ml)
- Inlet Paint Strainer
- 8 Mesh Stainless Steel Screen
- Maximum Flow Rate (GPM)
- 1.6
- Maximum Fluid Working Pressure (psi)
- 3300
- Maximum Hose Length (ft)
- 150
- Maximum Sound Pressure Level (dB(A))
- 96
- Maximum Tip Size (in)
- 0.043
- Maximum Tip Size 1 Gun (in)
- 0.043
- Maximum Tip Size 2 Guns (in)
- 0.056
- Maximum Tip Size 3 Guns (in)
- 0.023
- Maximum Working Pressure (MPa)
- 22.8
- Maximum Working Pressure (psi)
- 3300
- Model
- GMAX II
- Number of Guns
- 3
- Outlet Paint Filter
- 60 Mesh Stainless Steel Screen
- Overall Height (in)
- 38.0
- Overall Length (in)
- 32.7
- Overall Width (in)
- 24.4
- Power Rating (HP)
- 6.5
- Power Rating (W)
- 4847
- Power Rating (kW)
- 4.85
- Power Source
- Gas
- Pressure Control Type
- SmartControl 3.0
- Product Series
- ProContractor
- Pump Mount Type
- ProConnect 2
- Pump Rod Type
- MaxLife
- Pump Sleeve Material
- MaxLife
- Pump Type
- Endurance Vortex
- Series
- 5900
- Spray Gun Type
- Contractor PC Pro Gun
- Spray Type
- Airless
- Type
- Airless Sprayer
- Weight (lb)
- 160
- Wetted Material
- Acetal, Aluminum, Chrome Plating, Fluoroelastomer, Leather, Nylon, PTFE, Polyurethane, Stainless Steel, Tungsten Carbide, UHMWPE, Zinc-Plated Carbon Steel, Nickel-Plated Carbon Steel
- Fluid Inlet Size (mm)
- 33.34
- Fluid Outlet Size (mm)
- 6.35
- Hose Inlet Diameter (cm)
- 0.635
- Hose Inlet Diameter (mm)
- 6.35
- Maximum Flow Rate (L/min)
- 6.06
- Maximum Hose Length (m)
- 45
- Maximum Working Pressure (bar)
- 228
- Maximum Working Pressure (kPa)
- 22800
- Maximum Working Pressure (kg/cm²)
- 22.7
- Overall Height (cm)
- 96.5
- Overall Height (mm)
- 965
- Overall Length (cm)
- 83.1
- Overall Length (mm)
- 831
- Overall Width (cm)
- 62.0
- Overall Width (mm)
- 620
- Power Rating (cc)
- 200
- Recommended Annual Usage
- Up to 1,000 gallons per week
- Weight (kg)
- 73
Standards & Compliance
- Material
- Acetal, Aluminum, Chrome Plating, Fluoroelastomer, Leather, Nylon, PTFE, Polyurethane, Stainless Steel, Tungsten Carbide, UHMWPE, Zinc-Plated Carbon Steel, Nickel-Plated Carbon Steel
- Pressure Rating
- 3300 psi max
- HS Code
- 8424.20
Compatibility & Fitment
Complete spray system/package. Confirm engine/power source, maximum tip size, number of guns and wetted material against the coating and layout before ordering; bundled items are listed under "Includes" in the specifications.
Product Documentation
More from Graco
Graco
Graco GMAX II 5900 IronMan Series Gas Airless Sprayer
17E833
Graco
Graco GMAX II 7900 Standard Series Gas Airless Sprayer, Lo-Boy
17E834
Graco

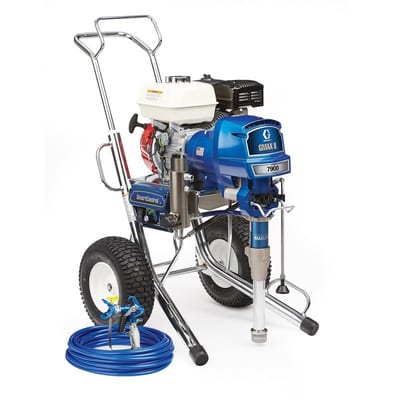

Graco GMAX II 7900 Standard Series Gas Airless Sprayer, Hi-Boy
17E836
Graco

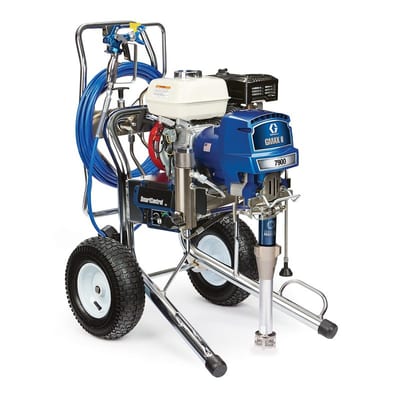

Graco GMAX II 7900 ProContractor Series Gas Airless Sprayer
17E837
Graco

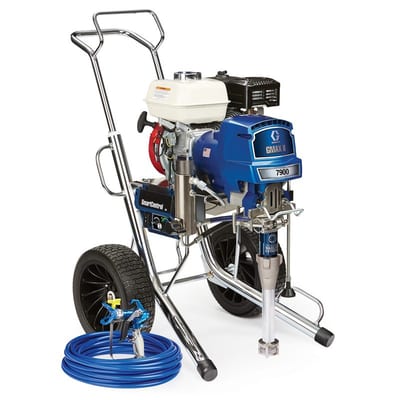

Graco GMAX II 7900 IronMan Series Gas Airless Sprayer
17E838
Graco

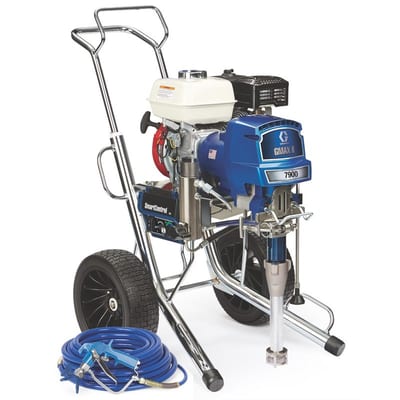

Graco GMAX II 7900 Roof Rig Gas Airless Sprayer
17E835
Graco

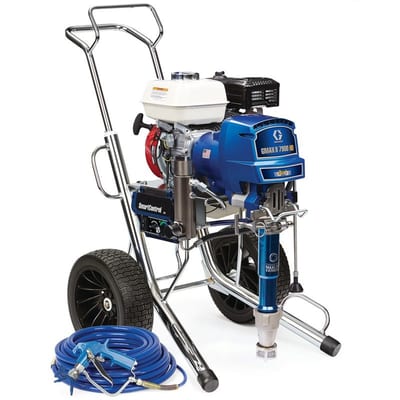

Graco GMAX II 7900 HD 3-IN-1 IronMan Series Gas Airless Sprayer
17E843
Graco

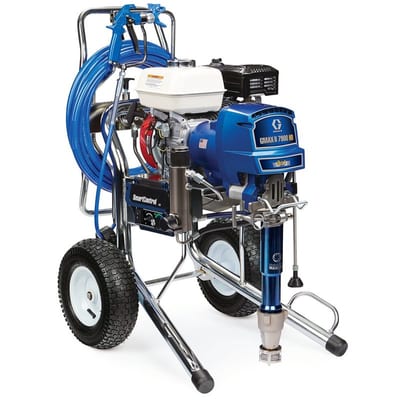

Graco GMAX II 7900 HD 3-IN-1 ProContractor Series Gas Airless Sprayer
