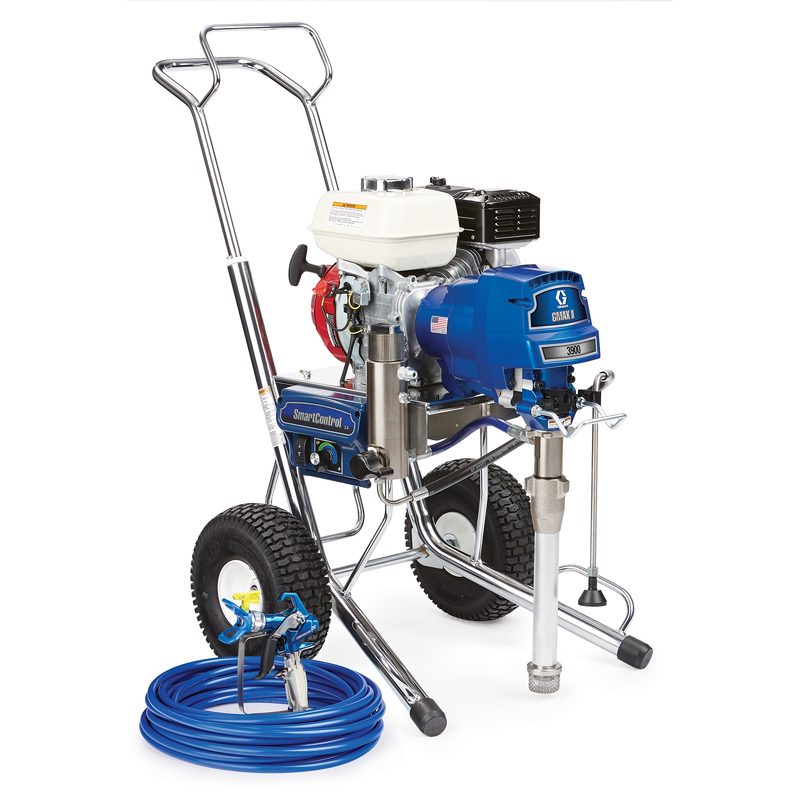

Graco GMAX II 3900 Standard Series Gas Airless Sprayer, Hi-Boy
Pricing
Request a quote
We reply within 24 hours
Product Description
Graco 17E827 GMAX II 3900 Standard Series Gas Airless Sprayer, Hi-Boy, part number 17E827. Graco GMax airless sprayer. Honda 4 HP engine. 3300 psi maximum working pressure. 1.25 gpm maximum flow rate. Maximum tip size 0.036 in. 2 gun(s) supported. Hi-Boy frame. Wetted material Acetal, Aluminum, Chrome Plating, Fluoroelastomer, Leather, Nylon, PTFE, Polyurethane, Stainless Steel, Tungsten Carbide, UHMWPE, Zinc-Plated Carbon Steel, Nickel-Plated Carbon Steel. All values read from the Graco product page (17E827 on graco.com).
Technical Specifications
- Brand
- Graco
- Line
- GMax
- Part number
- 17E827
- Convertible
- Non-Convertible
- Engine Brand
- Honda
- Engine Size (HP)
- 4
- Features
- Endurance Chromex Pump, SmartControl 3.0, Honda Engine, Advantage Drive, Easy Out Filter, Heavy-Duty Prime Valve, Contractor PC Gun
- Fluid Inlet Size (in)
- 1-5/16
- Fluid Inlet Thread Type
- UN-2A
- Fluid Outlet Size (in)
- 1/4
- Fluid Outlet Thread Type
- NPSM
- Frame Configuration
- Hi-Boy
- Hose Inlet Diameter (in)
- 1/4
- Includes
- Contractor PC Gun, RAC X LP 517 Spray Tip, RAC X Guard, 1/4 in x 50 ft BlueMax II Airless Hose, TSL 4 oz
- Inlet Paint Strainer
- 8 Mesh Stainless Steel Screen
- Maximum Flow Rate (GPM)
- 1.25
- Maximum Sound Pressure Level (dB(A))
- 96
- Maximum Tip Size (in)
- 0.036
- Maximum Tip Size 1 Gun (in)
- 0.036
- Maximum Tip Size 2 Guns (in)
- 0.023
- Maximum Working Pressure (MPa)
- 22.8
- Maximum Working Pressure (psi)
- 3300
- Model
- GMAX II
- Number of Guns
- 2
- Outlet Paint Filter
- 60 Mesh Stainless Steel Screen
- Overall Height (in)
- 40.8
- Overall Length (in)
- 38.3
- Overall Width (in)
- 22.3
- Power Rating (HP)
- 4.0
- Power Rating (W)
- 2983
- Power Rating (kW)
- 2.98
- Power Source
- Gas
- Pressure Control Type
- SmartControl 3.0
- Product Series
- Standard
- Pump Mount Type
- QuikChange
- Pump Rod Type
- Chromex
- Pump Sleeve Material
- Stainless Steel
- Pump Type
- Endurance
- Series
- 3900
- Type
- Airless Sprayer
- Weight (lb)
- 106
- Wetted Material
- Acetal, Aluminum, Chrome Plating, Fluoroelastomer, Leather, Nylon, PTFE, Polyurethane, Stainless Steel, Tungsten Carbide, UHMWPE, Zinc-Plated Carbon Steel, Nickel-Plated Carbon Steel
- Fluid Inlet Size (mm)
- 33.34
- Fluid Outlet Size (mm)
- 6.35
- Hose Inlet Diameter (cm)
- 0.635
- Hose Inlet Diameter (mm)
- 6.35
- Maximum Flow Rate (L/min)
- 4.73
- Maximum Working Pressure (bar)
- 228
- Maximum Working Pressure (kPa)
- 22800
- Overall Height (cm)
- 103.6
- Overall Height (mm)
- 1036
- Overall Length (cm)
- 97.3
- Overall Length (mm)
- 973
- Overall Width (cm)
- 56.6
- Overall Width (mm)
- 566
- Power Rating (cc)
- 120
- Recommended Annual Usage
- Up to 500 gallons per week
- Weight (kg)
- 48
Standards & Compliance
- Material
- Acetal, Aluminum, Chrome Plating, Fluoroelastomer, Leather, Nylon, PTFE, Polyurethane, Stainless Steel, Tungsten Carbide, UHMWPE, Zinc-Plated Carbon Steel, Nickel-Plated Carbon Steel
- Pressure Rating
- 3300 psi max
- HS Code
- 8424.20
Compatibility & Fitment
Complete spray system/package. Confirm engine/power source, maximum tip size, number of guns and wetted material against the coating and layout before ordering; bundled items are listed under "Includes" in the specifications.
