Graco Flat Pattern Automatic Fusion Mechanical Purge Direct Impingement Gun with 0.024 in (0.61 mm) Ceramic Tip and 0.018 in (0.46 mm) Impingement Port
Pricing
Request a quote
We reply within 24 hours
Product Description
Graco 248385 Flat Pattern Automatic Fusion Mechanical Purge Direct Impingement Gun with 0.024 in (0.61 mm) Ceramic Tip and 0.018 in (0.46 mm) Impingement Port, part number 248385. Fusion MP Auto plural-component impingement-mix spray gun, 0.024 in (0.61 mm) fluid orifice, Flat spray pattern. Maximum fluid pressure 3500 psi (241 bar). Maximum fluid temperature 200 °F. Compatible material: Polyurethane, Roof Coating, Polyurea, Spray Polyurethane Foam, No-Heat Foam. All values read from the Graco product page (248385 on graco.com).
Technical Specifications
- Brand
- Graco Model: Fusion MP Series: Auto Part number: 248385 Type: Spray Gun Gun type: Impingement Mix Air Purge Spray Gun Component type: Plural-Component Compatible material: Polyurethane, Roof Coating, Polyurea, Spray Polyurethane Foam, No-Heat Foam Spray pattern: Flat Pattern size: 8 Fluid orifice size: 0.024 in (0.61 mm) Maximum fluid pressure: 3500 psi (241 bar) Maximum fluid working pressure: 3500 psi (242 bar) Maximum air inlet pressure: 130 psi (9 bar) minimum air inlet pressure: 80 psi (5.5 bar) Maximum fluid temperature: 200 °F (93 °C) Maximum flow rate @ pressure: 50 lb/min Air inlet size: 1/8-27 in NPT Component A inlet size: 1/2-20 in UNF Component B inlet size: 9/16-18 in UNF Sound pressure level: 70 dB(A) Sound power level: 79.9 dB(A) Gun weight: 2.75 lb (1.24 kg) Overall length: 7.6 in (193 mm) Overall height: 3.75 in (95 mm) Overall width: 3.1 in (79 mm)
Standards & Compliance
- Pressure Rating
- 3500 psi (241 bar) max fluid
- Temperature Range
- up to 200 °F (93 °C)
- HS Code
- 8424.20
Compatibility & Fitment
Fusion is Graco's plural-component impingement-mix spray-gun line for the Reactor proportioner range. Auto series; Impingement Mix Air Purge Spray Gun; 0.024 in fluid orifice; Flat spray pattern. Confirm orifice size, mix chamber/module and spray pattern match the material and output before ordering.
Product Documentation
More from Graco
Graco
Graco Round Pattern Automatic Fusion Mechanical Purge Gun with 0.040 in (1.0 mm) Ceramic Tip and 0.035 in (0.9 mm) Impingement Port
248386
Graco
Graco Round Pattern Automatic Fusion Mechanical Purge Gun with 0.070 in (1.8 mm) Ceramic Tip and 0.057 in (1.45 mm) Impingement Port
248387
Graco
Graco UltraMAX Cordless Handheld Airless Sprayer
17M367
Graco
Graco UltraMAX Cordless Handheld Airless Sprayer, Tool-Only
17P928
Graco
Graco Ultra Max II 695 Standard Series Electric Airless Sprayer, Lo-Boy
17E572
Graco
Graco Ultra Max II 695 Standard Series Electric Airless Sprayer, Hi-Boy
17E574
Graco
Graco Ultra Max II 695 ProContractor Series Electric Airless Sprayer
17E577
Graco

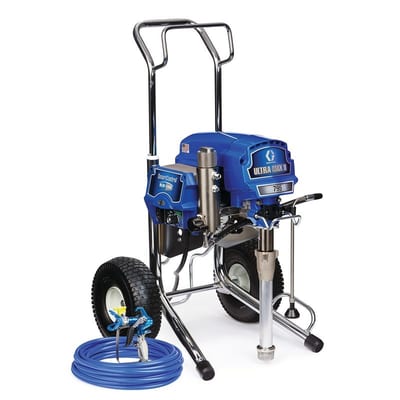

Graco Ultra Max II 795 Standard Series Electric Airless Sprayer
