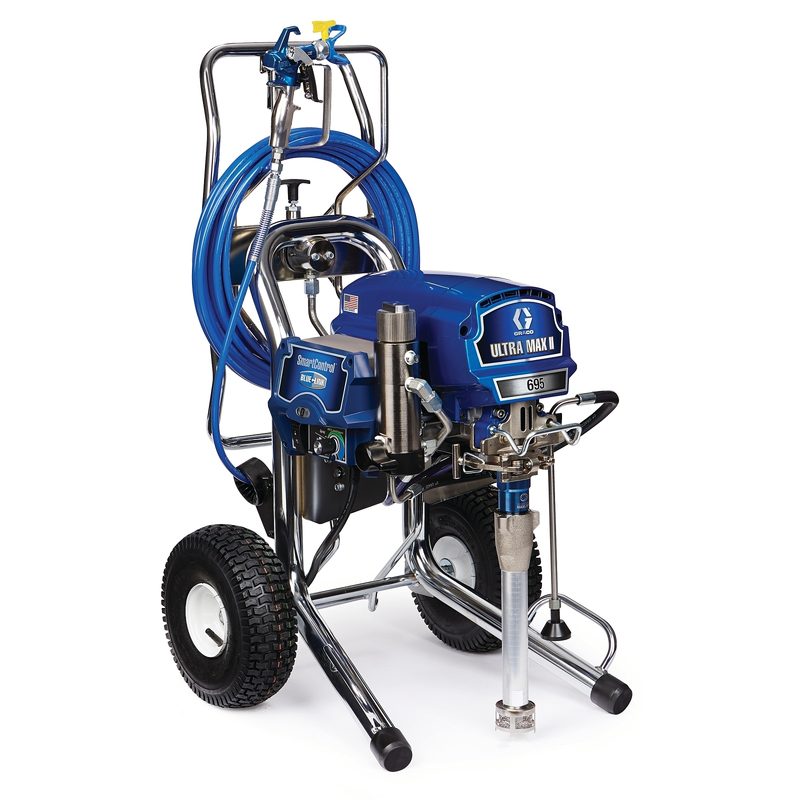

Graco Ultra Max II 695 ProContractor Series Electric Airless Sprayer
Pricing
Request a quote
We reply within 24 hours
Product Description
Graco 17E577 Ultra Max II 695 ProContractor Series Electric Airless Sprayer, part number 17E577. Ultra Max II ProContractor electric airless sprayer, Hi-Boy frame, 3300 psi (228 bar) maximum working pressure, 0.95 GPM maximum flow, 0.031 in maximum tip. 120 V/50/60 Hz, 15 A. Compatible material: Interior Latex, Exterior Latex, Oil-Based Primer, Block Filler. All values read from the Graco product page (17E577 on graco.com).
Technical Specifications
- Brand
- Graco Model: Ultra Max II Series: ProContractor Part number: 17E577 Type: Airless Sprayer Power source: Electric Motor type: MaxPower Pump type: Endurance Vortex Pump mount type: ProConnect 2 Pump sleeve material: MaxLife Pressure control type: SmartControl 4.0 Frame configuration: Hi-Boy Number of guns: 2 Compatible material: Interior Latex, Exterior Latex, Oil-Based Primer, Block Filler Filter mesh size: 60 Recommended annual usage: 100-200 gallons per week Maximum working pressure: 3300 psi (228 bar) Maximum flow rate: 0.95 GPM (3.6 L/min) Maximum tip size: 0.031 in Maximum tip size (1 gun): 0.031 in Maximum tip size (2 guns): 0.023 in Voltage: 120 V, 50/60 Hz, 15 A Power rating: 1491 W (2.0 HP) Engine size: 2 HP minimum generator power: 5000 W Fluid outlet size: 1/4 in NPSM Hose inlet diameter: 1/4 in (6.35 mm) Volume per cycle: 226 cycles/gal Maximum sound pressure level: 82 dB(A) Wetted material: Acetal, Aluminum, Brass, Leather, Nylon, PEEK, PTFE, Stainless Steel, Tungsten Carbide, UHMWPE, Zinc-Plated Carbon Steel, Nickel-Plated Carbon Steel Overall length: 26 in (660 mm) Overall height: 38.75 in (984 mm) Overall width: 22.5 in (572 mm) Weight: 94 lb (43 kg) Includes: Contractor PC Gun, RAC X LP 517 Spray Tip, RAC X Guard, 1/4 in x 50 ft BlueMax II Airless Hose
Standards & Compliance
- Pressure Rating
- 3300 psi (228 bar) max working
- HS Code
- 8424.20
Compatibility & Fitment
Ultra Max is Graco's electric airless sprayer line for protective and architectural coatings. ProContractor series; Hi-Boy frame; maximum tip 0.031 in; 0.95 GPM. Confirm voltage, maximum tip size and flow rate match the coating and gun count before ordering.
