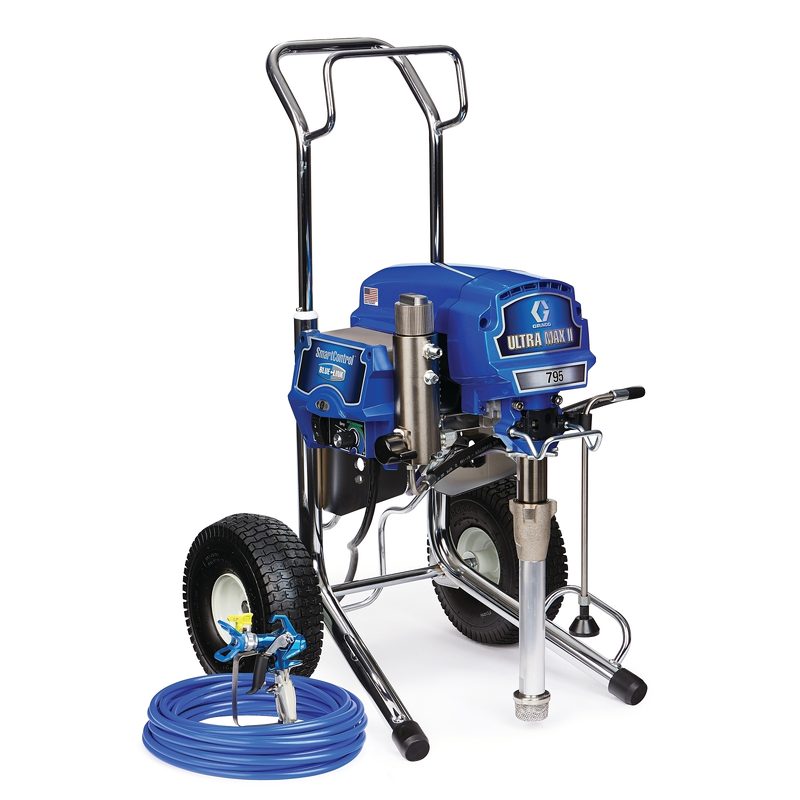

Graco Ultra Max II 795 Standard Series Electric Airless Sprayer

Graco 17E579 Ultra Max II 795 Standard Series Electric Airless Sprayer, part number 17E579. Ultra Max II Standard electric airless sprayer, Hi-Boy frame, 3300 psi (228 bar) maximum working pressure, 1.1 GPM maximum flow, 0.033 in maximum tip. 120 V/50/60 Hz, 15 A. Compatible material: Interior Latex, Exterior Latex, Oil-Based Primer, Acrylics, Block Filler. All values read from the Graco product page (17E579 on graco.com).

Brand

Graco Model: Ultra Max II Series: Standard Part number: 17E579 Type: Airless Sprayer Power source: Electric Motor type: MaxPower Pump type: Endurance Pump mount type: QuikChange Pump sleeve material: Hardened Stainless Steel Pressure control type: SmartControl 4.0 Frame configuration: Hi-Boy Number of guns: 3 Compatible material: Interior Latex, Exterior Latex, Oil-Based Primer, Acrylics, Block Filler Filter mesh size: 60 Recommended annual usage: 100-200 gallons per week Maximum working pressure: 3300 psi (228 bar) Maximum flow rate: 1.1 GPM (4.1 L/min) Maximum tip size: 0.033 in Maximum tip size (1 gun): 0.033 in Maximum tip size (2 guns): 0.025 in Voltage: 120 V, 50/60 Hz, 15 A Power rating: 1641 W (2.2 HP) Engine size: 2.2 HP minimum generator power: 5000 W Fluid outlet size: 1/4 in NPSM Hose inlet diameter: 1/4 in (6.35 mm) Volume per cycle: 195 cycles/gal Maximum sound pressure level: 82 dB(A) Wetted material: Acetal, Aluminum, Brass, Leather, Nylon, PEEK, PTFE, Stainless Steel, Tungsten Carbide, UHMWPE, Zinc-Plated Carbon Steel, Nickel-Plated Carbon Steel Overall length: 26 in (660 mm) Overall height: 38.75 in (984 mm) Overall width: 22.5 in (572 mm) Weight: 98 lb (45 kg) Includes: Contractor PC Gun, RAC X LP 517 Spray Tip, RAC X Guard, 1/4 in x 50 ft BlueMax II Airless Hose

Pressure Rating

3300 psi (228 bar) max working

HS Code

8424.20
