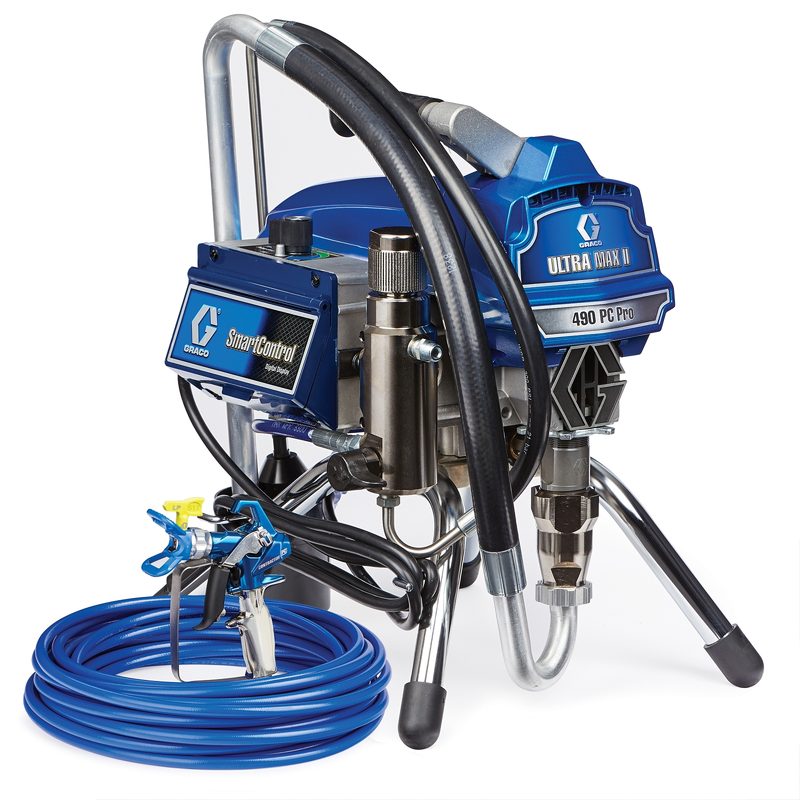

Graco Ultra Max II 490 PC Pro Electric Airless Sprayer, Stand
Pricing
Request a quote
We reply within 24 hours
Product Description
Graco 17E852 Ultra Max II 490 PC Pro Electric Airless Sprayer, Stand, part number 17E852. Ultra Max II 490 PC Pro electric airless sprayer, Stand frame, 3300 psi (228 bar) maximum working pressure, 0.54 GPM maximum flow, 0.023 in maximum tip. 120 V/50/60 Hz, 12 A. Compatible material: Lacquer, Stain, Interior Latex, Exterior Latex, Enamel, Acrylic, Oil-Based Primer. All values read from the Graco product page (17E852 on graco.com).
Technical Specifications
- Brand
- Graco Model: Ultra Max II Series: 490 PC Pro Part number: 17E852 Type: Airless Sprayer Power source: Electric Motor type: MaxPower Pump type: Endurance Pump mount type: ProConnect Pressure control type: SmartControl 3.0 Frame configuration: Stand Number of guns: 1 Compatible material: Lacquer, Stain, Interior Latex, Exterior Latex, Enamel, Acrylic, Oil-Based Primer Filter mesh size: 60 Recommended annual usage: 50-100 gallons per week Maximum working pressure: 3300 psi (228 bar) Maximum flow rate: 0.54 GPM (2.0 L/min) Maximum tip size: 0.023 in Maximum tip size (1 gun): 0.023 in Voltage: 120 V, 50/60 Hz, 12 A Power rating: 746 W (1.0 HP) Engine size: 1 HP minimum generator power: 3500 W Fluid outlet size: 1/4 in NPSM Hose inlet diameter: 1/4 in (6.35 mm) Volume per cycle: 620 cycles/gal Maximum sound pressure level: 90 dB(A) Wetted material: Acetal, Aluminum, Fluoroelastomer, Leather, Nylon, PTFE, Polyethylene, Stainless Steel, Tungsten Carbide, UHMWPE, Urethane, Zinc-Plated Carbon Steel, Nickel-Plated Carbon Steel Overall length: 16 in (406 mm) Overall height: 18.5 in (470 mm) Overall width: 14 in (356 mm) Weight: 34 lb (15 kg) Includes: Contractor PC Gun, RAC X LP 517 Spray Tip, RAC X Guard, 1/4 in x 50 ft BlueMax II Airless Hose, TSL 4 oz
Standards & Compliance
- Pressure Rating
- 3300 psi (228 bar) max working
- HS Code
- 8424.20
Compatibility & Fitment
Ultra Max is Graco's electric airless sprayer line for protective and architectural coatings. 490 PC Pro series; Stand frame; maximum tip 0.023 in; 0.54 GPM. Confirm voltage, maximum tip size and flow rate match the coating and gun count before ordering.
Product Documentation
More from Graco
Graco
Graco Ultra Max II 490 PC Pro Electric Airless Sprayer, Lo-Boy
17E853
Graco
Graco Ultra Max II 490 PC Pro Electric Airless Sprayer, Hi-Boy
17E854
Graco
Graco Ultra Max II 495 PC Pro Electric Airless Sprayer, Stand
17E855
Graco
Graco Ultra Max II 495 PC Pro Electric Airless Sprayer, Lo-Boy
17E856
Graco
Graco Ultra Max II 495 PC Pro Electric Airless Sprayer, Hi-Boy
17E857
Graco
Graco Ultra Max II 595 PC Pro Electric Airless Sprayer, Lo-Boy
17E858
Graco
Graco Ultra Max II 595 PC Pro Electric Airless Sprayer, Hi-Boy
17E859
Graco

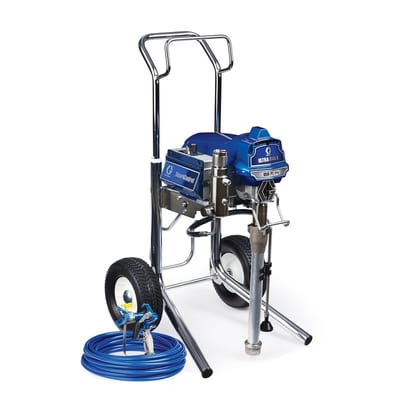

Graco Ultra Max II 650 PC Pro Electric Airless Sprayer, Hi-Boy
19Y128
Catalogue entry last verified: 2026-08-30. A manufacturer datasheet is attached to this entry — confirm application-critical values against it.
Frequently asked questions
- Where can I buy 17E852?
- 17E852 can be ordered from cballast.com as a Graco catalogue item: request a quotation on this page or email sales@cballast.com, and the order ships worldwide.
- What is the manufacturer part number for this Graco product?
- The manufacturer part number is 17E852.
- What is the HS code for 17E852?
- The customs tariff (HS) code for 17E852 is 8424.20.
- Who manufactures 17E852?
- 17E852 is a Graco product in the Tools & Workshop Consumables range.
- Is a datasheet available for 17E852?
- Yes — the 17E852 datasheet can be viewed and downloaded on this page.
- What is the minimum order quantity for 17E852?
- The minimum order quantity is 1.
- Is 17E852 available?
- Yes — 17E852 is available to order: fulfilment is from supplier stock in cBallast's European network, dispatched directly from the warehouse to the customer, with the exact lead time stated in the quotation (reply within 24 hours).
