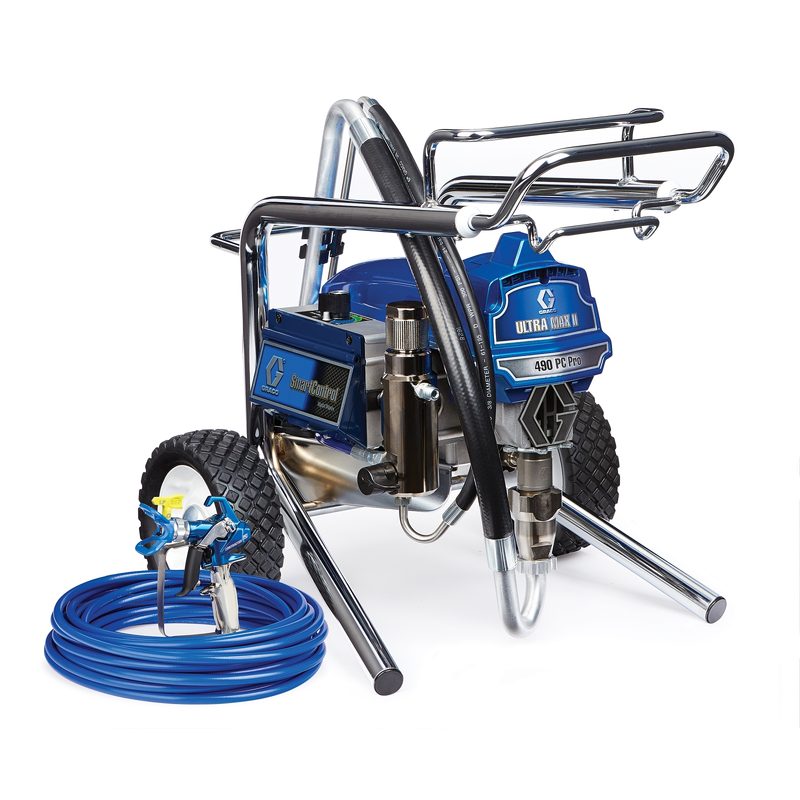

Graco Ultra Max II 490 PC Pro Electric Airless Sprayer, Lo-Boy

Graco 17E853 Ultra Max II 490 PC Pro Electric Airless Sprayer, Lo-Boy, part number 17E853. Ultra Max II 490 PC Pro electric airless sprayer, Lo-Boy frame, 3300 psi (228 bar) maximum working pressure, 0.54 GPM maximum flow, 0.023 in maximum tip. 120 V/50/60 Hz, 12 A. Compatible material: Lacquer, Stain, Interior Latex, Exterior Latex, Enamel, Acrylic, Oil-Based Primer. All values read from the Graco product page (17E853 on graco.com).

Brand

Graco Model: Ultra Max II Series: 490 PC Pro Part number: 17E853 Type: Airless Sprayer Power source: Electric Motor type: MaxPower Pump type: Endurance Pump mount type: ProConnect Pressure control type: SmartControl 3.0 Frame configuration: Lo-Boy Number of guns: 1 Compatible material: Lacquer, Stain, Interior Latex, Exterior Latex, Enamel, Acrylic, Oil-Based Primer Filter mesh size: 60 Recommended annual usage: 50-100 gallons per week Maximum working pressure: 3300 psi (228 bar) Maximum flow rate: 0.54 GPM (2.0 L/min) Maximum tip size: 0.023 in Maximum tip size (1 gun): 0.023 in Voltage: 120 V, 50/60 Hz, 12 A Power rating: 746 W (1.0 HP) Engine size: 1 HP minimum generator power: 3500 W Fluid outlet size: 1/4 in NPSM Hose inlet diameter: 1/4 in (6.35 mm) Volume per cycle: 620 cycles/gal Maximum sound pressure level: 90 dB(A) Wetted material: Acetal, Aluminum, Fluoroelastomer, Leather, Nylon, PTFE, Polyethylene, Stainless Steel, Tungsten Carbide, UHMWPE, Urethane, Zinc-Plated Carbon Steel, Nickel-Plated Carbon Steel Overall length: 26.5 in (673 mm) Overall height: 22.5 in (572 mm) Overall width: 20 in (506 mm) Weight: 59 lb (27 kg) Includes: Contractor PC Gun, RAC X LP 517 Spray Tip, RAC X Guard, 1/4 in x 50 ft BlueMax II Airless Hose, TSL 4 oz

Pressure Rating

3300 psi (228 bar) max working

HS Code

8424.20
