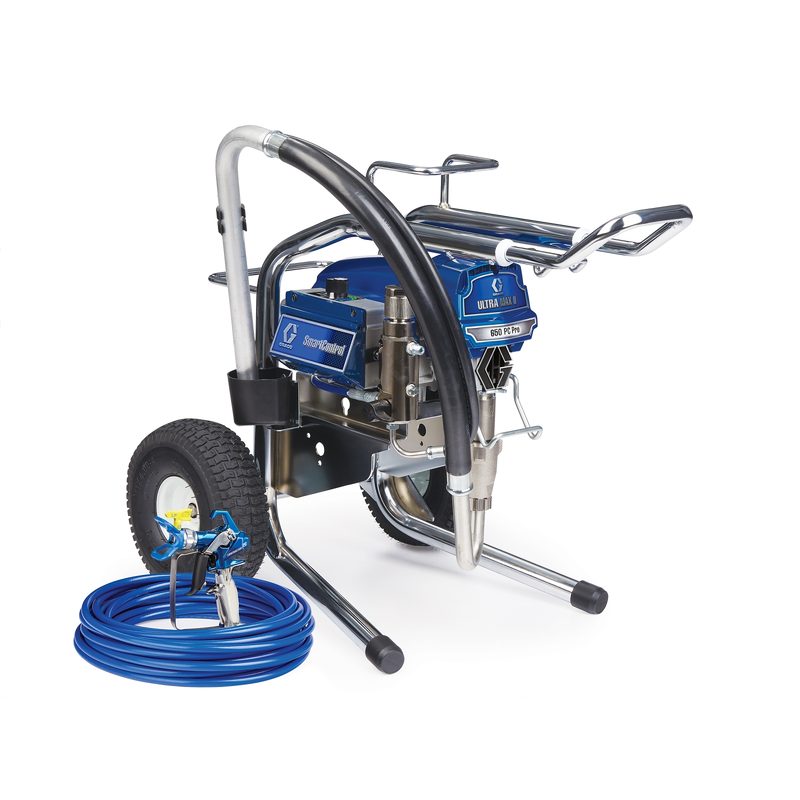

Graco Ultra Max II 650 PC Pro Electric Airless Sprayer, Lo-Boy
Pricing
Request a quote
We reply within 24 hours
Product Description
Graco 19Y129 Ultra Max II 650 PC Pro Electric Airless Sprayer, Lo-Boy, part number 19Y129. Ultra Max II 650 PC Pro electric airless sprayer, Lo-Boy frame, 3300 psi (231 bar) maximum working pressure, 0.8 GPM maximum flow, 0.029 in maximum tip. 120 V/50/60 Hz, 15 A. All values read from the Graco product page (19Y129 on graco.com).
Technical Specifications
- Brand
- Graco Model: Ultra Max II Series: 650 PC Pro Part number: 19Y129 Type: Airless Sprayer Power source: Electric Motor type: MaxPower Pump type: Endurance Pump mount type: ProConnect Pressure control type: SmartControl 3.0 Frame configuration: Lo-Boy Number of guns: 2 Filter mesh size: 60 Maximum working pressure: 3300 psi (231 bar) Maximum flow rate: 0.8 GPM Maximum tip size: 0.029 in Maximum tip size (1 gun): 0.029 in Maximum tip size (2 guns): 0.019 in Voltage: 120 V, 50/60 Hz, 15 A Engine size: 6.7 HP minimum generator power: 4000 W Fluid outlet size: 1/4 in NPSM Hose inlet diameter: 1/4 in Volume per cycle: 570 cycles/gal Maximum sound pressure level: 90 dB(A) Wetted material: Acetal, Aluminum, Fluoroelastomer, Leather, Nickel-Plated Carbon Steel, Nylon, PTFE, Polyethylene, Stainless Steel, Tungsten Carbide, UHMWPE, Urethane, Zinc-Plated Carbon Steel Overall length: 37 in (939.8 mm) Overall height: 27.5 in (698.5000 mm) Overall width: 22.5 in (571.5000 mm) Weight: 77 lb (3.4958 kg) Includes: Contractor PC Gun, RAC X LP 517 Spray Tip, RAC X Guard, 1/4 in x 50 ft BlueMax II Airless Hose, TSL 4 oz
Standards & Compliance
- Pressure Rating
- 3300 psi (231 bar) max working
- HS Code
- 8424.20
Compatibility & Fitment
Ultra Max is Graco's electric airless sprayer line for protective and architectural coatings. 650 PC Pro series; Lo-Boy frame; maximum tip 0.029 in; 0.8 GPM. Confirm voltage, maximum tip size and flow rate match the coating and gun count before ordering.
Product Documentation
