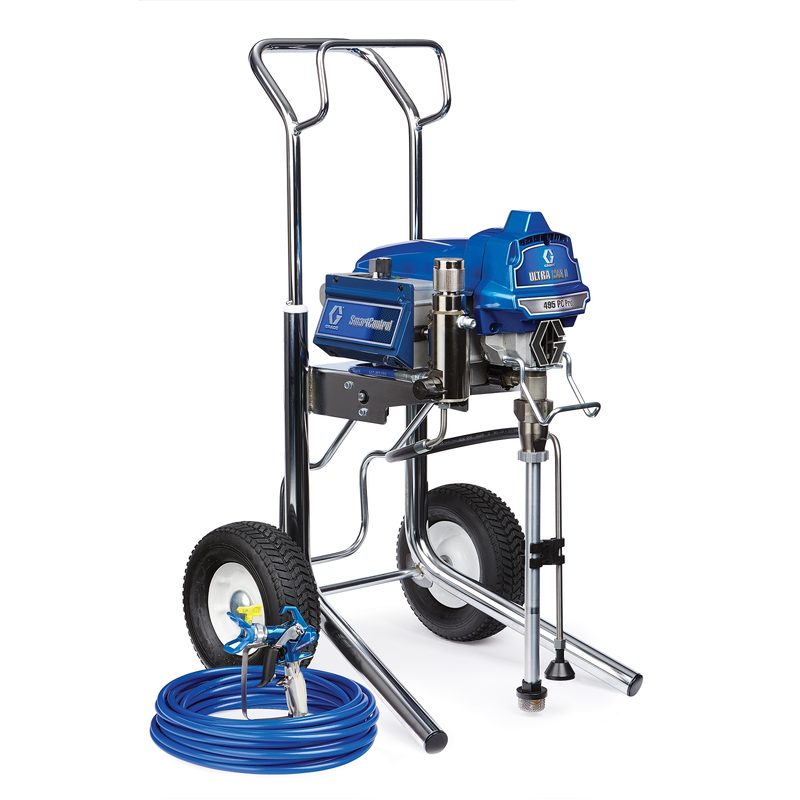

Graco Ultra Max II 495 PC Pro Electric Airless Sprayer, Hi-Boy
Pricing
Request a quote
We reply within 24 hours
Product Description
Graco 17E857 Ultra Max II 495 PC Pro Electric Airless Sprayer, Hi-Boy, part number 17E857. Ultra Max II 495 PC Pro electric airless sprayer, Hi-Boy frame, 3300 psi (228 bar) maximum working pressure, 0.6 GPM maximum flow, 0.025 in maximum tip. 120 V/50/60 Hz, 15 A. Compatible material: Lacquer, Stain, Interior Latex, Exterior Latex, Enamel, Acrylic, Oil-Based Primer. All values read from the Graco product page (17E857 on graco.com).
Technical Specifications
- Brand
- Graco Model: Ultra Max II Series: 495 PC Pro Part number: 17E857 Type: Airless Sprayer Power source: Electric Motor type: MaxPower Pump type: Endurance Pump mount type: ProConnect Pressure control type: SmartControl 3.0 Frame configuration: Hi-Boy Number of guns: 1 Compatible material: Lacquer, Stain, Interior Latex, Exterior Latex, Enamel, Acrylic, Oil-Based Primer Filter mesh size: 60 Recommended annual usage: 50-100 gallons per week Maximum working pressure: 3300 psi (228 bar) Maximum flow rate: 0.6 GPM (2.3 L/min) Maximum tip size: 0.025 in Maximum tip size (1 gun): 0.025 in Voltage: 120 V, 50/60 Hz, 15 A Power rating: 895 W (1.2 HP) Engine size: 1.2 HP minimum generator power: 3750 W Fluid outlet size: 1/4 in NPSM Hose inlet diameter: 1/4 in (6.35 mm) Volume per cycle: 620 cycles/gal Maximum sound pressure level: 90 dB(A) Wetted material: Acetal, Aluminum, Fluoroelastomer, Leather, Nylon, PTFE, Polyethylene, Stainless Steel, Tungsten Carbide, UHMWPE, Urethane, Zinc-Plated Carbon Steel, Nickel-Plated Carbon Steel Overall length: 23.25 in (591 mm) Overall height: 38.25 in (972 mm) Overall width: 20.5 in (521 mm) Weight: 66 lb (30 kg) Includes: Contractor PC Gun, RAC X LP 517 Spray Tip, RAC X Guard, 1/4 in x 50 ft BlueMax II Airless Hose, TSL 4 oz
Standards & Compliance
- Pressure Rating
- 3300 psi (228 bar) max working
- HS Code
- 8424.20
Compatibility & Fitment
Ultra Max is Graco's electric airless sprayer line for protective and architectural coatings. 495 PC Pro series; Hi-Boy frame; maximum tip 0.025 in; 0.6 GPM. Confirm voltage, maximum tip size and flow rate match the coating and gun count before ordering.
