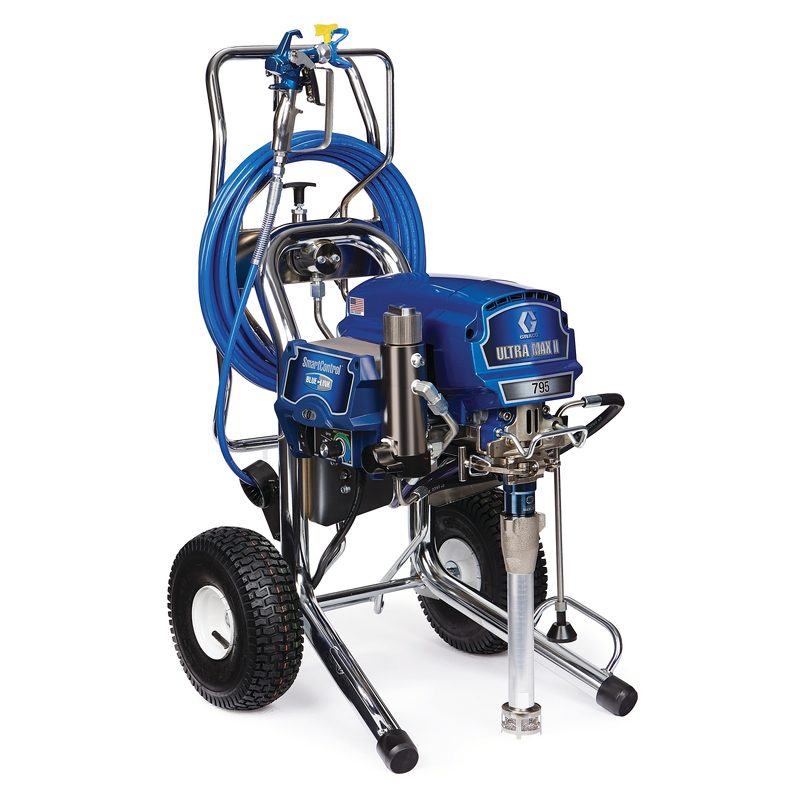

Graco Ultra Max II 795 ProContractor Series Electric Airless Sprayer
Pricing
Request a quote
We reply within 24 hours
Product Description
Graco 17E582 Ultra Max II 795 ProContractor Series Electric Airless Sprayer, part number 17E582. Ultra Max II ProContractor electric airless sprayer, Hi-Boy frame, 3300 psi (228 bar) maximum working pressure, 1.1 GPM maximum flow, 0.033 in maximum tip. 120 V/50/60 Hz, 15 A. Compatible material: Interior Latex, Exterior Latex, Oil-Based Primer, Acrylics, Block Filler. All values read from the Graco product page (17E582 on graco.com).
Technical Specifications
- Brand
- Graco Model: Ultra Max II Series: ProContractor Part number: 17E582 Type: Airless Sprayer Power source: Electric Motor type: MaxPower Pump type: Endurance Vortex Pump mount type: ProConnect 2 Pump sleeve material: MaxLife Pressure control type: SmartControl 4.0 Frame configuration: Hi-Boy Number of guns: 3 Compatible material: Interior Latex, Exterior Latex, Oil-Based Primer, Acrylics, Block Filler Filter mesh size: 60 Recommended annual usage: 100-200 gallons per week Maximum working pressure: 3300 psi (228 bar) Maximum flow rate: 1.1 GPM (4.1 L/min) Maximum tip size: 0.033 in Maximum tip size (1 gun): 0.033 in Maximum tip size (2 guns): 0.025 in Voltage: 120 V, 50/60 Hz, 15 A Power rating: 1641 W (2.2 HP) Engine size: 2.2 HP minimum generator power: 5000 W Fluid outlet size: 1/4 in NPSM Hose inlet diameter: 1/4 in (6.35 mm) Volume per cycle: 195 cycles/gal Maximum sound pressure level: 82 dB(A) Wetted material: Acetal, Aluminum, Brass, Leather, Nylon, PEEK, PTFE, Stainless Steel, Tungsten Carbide, UHMWPE, Zinc-Plated Carbon Steel, Nickel-Plated Carbon Steel Overall length: 26 in (660 mm) Overall height: 38.75 in (984 mm) Overall width: 22.5 in (572 mm) Weight: 98 lb (45 kg) Includes: Contractor PC Gun, RAC X LP 517 Spray Tip, RAC X Guard, 1/4 in x 50 ft BlueMax II Airless Hose
Standards & Compliance
- Pressure Rating
- 3300 psi (228 bar) max working
- HS Code
- 8424.20
Compatibility & Fitment
Ultra Max is Graco's electric airless sprayer line for protective and architectural coatings. ProContractor series; Hi-Boy frame; maximum tip 0.033 in; 1.1 GPM. Confirm voltage, maximum tip size and flow rate match the coating and gun count before ordering.
Product Documentation
More from Graco
Graco
Graco Ultra Max II 1095 Standard Series Electric Airless Sprayer
17E583
Graco
Graco Ultra Max II 1095 ProContractor Series Electric Airless Sprayer
17E585
Graco
Graco Ultra Max II 1095 IronMan Series Electric Airless Sprayer
17E586
Graco
Graco Ultra Max II 1595 Standard Series Electric Airless Sprayer
17E589
Graco
Graco Ultra Max II 1595 IronMan Series Electric Airless Sprayer
17E594
Graco
Graco Ultra Max II 1595 ProContractor Series Electric Airless Sprayer
17E596
Graco
Graco Ultra Max II 490 PC Pro Electric Airless Sprayer, Stand
17E852
Graco

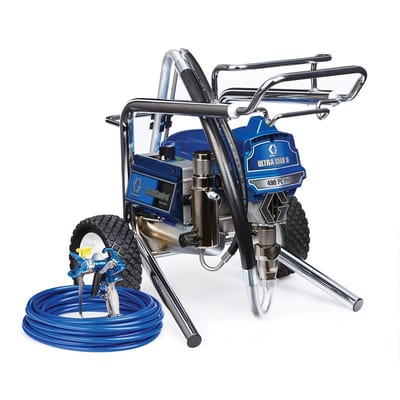

Graco Ultra Max II 490 PC Pro Electric Airless Sprayer, Lo-Boy
