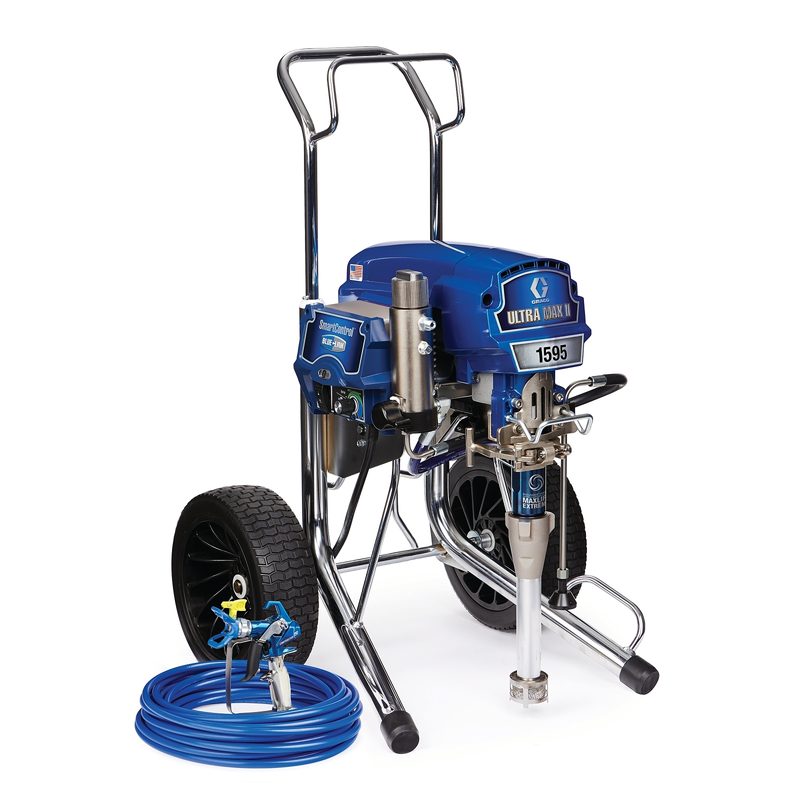

Graco Ultra Max II 1595 IronMan Series Electric Airless Sprayer

Graco 17E594 Ultra Max II 1595 IronMan Series Electric Airless Sprayer, part number 17E594. Ultra Max II IronMan electric airless sprayer, Hi-Boy frame, 3300 psi (228 bar) maximum working pressure, 1.35 GPM maximum flow, 0.039 in maximum tip. 120 V/50/60 Hz, 20 A. Compatible material: Interior Latex, Exterior Latex, Oil-Based Primer, Acrylics, Block Filler, Dry Fall, Elastomerics. All values read from the Graco product page (17E594 on graco.com).

Brand

Graco Model: Ultra Max II Series: IronMan Part number: 17E594 Type: Airless Sprayer Power source: Electric Motor type: MaxPower Pump type: Endurance Vortex Pump mount type: ProConnect 2 Pump sleeve material: MaxLife Pressure control type: SmartControl 4.0 Frame configuration: Hi-Boy Number of guns: 3 Compatible material: Interior Latex, Exterior Latex, Oil-Based Primer, Acrylics, Block Filler, Dry Fall, Elastomerics Filter mesh size: 60 Recommended annual usage: Over 200 gallons per week Maximum working pressure: 3300 psi (228 bar) Maximum flow rate: 1.35 GPM (5.1 L/min) Maximum tip size: 0.039 in Maximum tip size (1 gun): 0.039 in Maximum tip size (2 guns): 0.029 in Voltage: 120 V, 50/60 Hz, 20 A Power rating: 2088 W (2.8 HP) Engine size: 2.8 HP minimum generator power: 5000 W Fluid outlet size: 1/4 in NPSM Hose inlet diameter: 1/4 in (6.35 mm) Volume per cycle: 110 cycles/gal Maximum sound pressure level: 82 dB(A) Wetted material: Acetal, Aluminum, Brass, Leather, Nylon, PEEK, PTFE, Stainless Steel, Tungsten Carbide, UHMWPE, Zinc-Plated Carbon Steel, Nickel-Plated Carbon Steel Overall length: 26 in (660 mm) Overall height: 38.5 in (978 mm) Overall width: 24 in (610 mm) Weight: 132 lb (60 kg) Includes: Contractor PC Gun, RAC X LP 517 Spray Tip, RAC X Guard, 1/4 in x 50 ft BlueMax II Airless Hose

Pressure Rating

3300 psi (228 bar) max working

HS Code

8424.20
