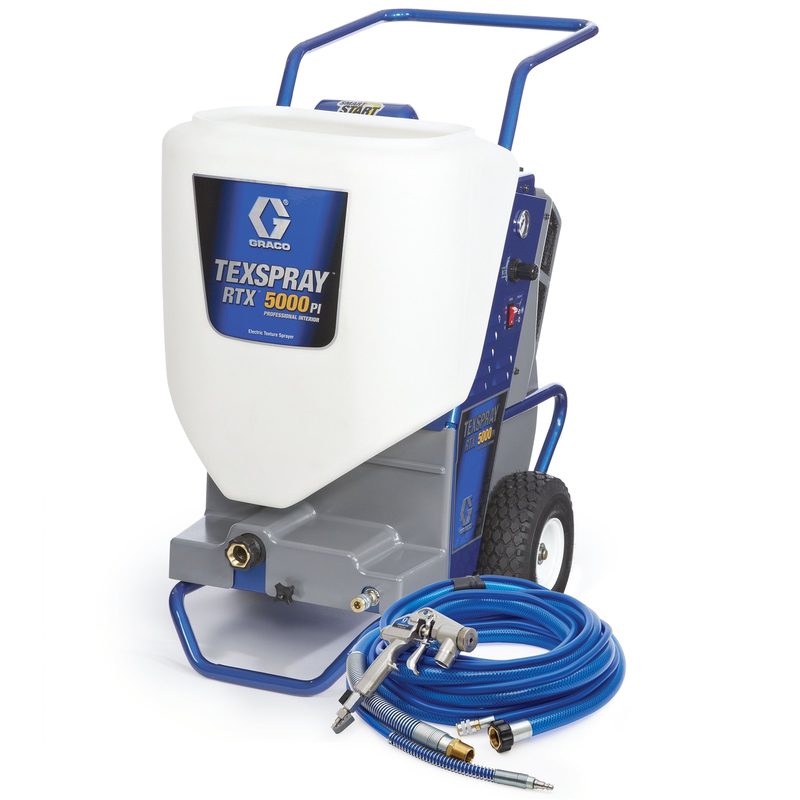

Graco TexSpray RTX 5000PI Texture Sprayer

Graco 17H575 TexSpray RTX 5000PI Texture Sprayer, part number 17H575. Graco TexSpray air-assisted airless sprayer for spraying architectural texture, drywall, fireproofing and heavy-bodied finish materials. 100 psi maximum working pressure. Maximum tip size 0.473 in. Weight 164 lb. All values read from the Graco product page (17H575 on graco.com).

Brand

Graco Line: TexSpray Part number: 17H575 Amperage (A): 15, 20 Compatible material: Acrylic Texture, Drywall Mud, Simulated Acoustic, Water-Based material Hopper Capacity (gal): 15 Includes: Heavy-Duty Air Spray Trigger Gun, 1 in x 25 ft material/Air Hose, 3 mm Round Nozzle, 4 mm Round Nozzle, 6 mm Round Nozzle, 8 mm Round Nozzle, 10 mm Round Nozzle, 12 mm Round Nozzle, 4 mm WideTex Tip, 6 mm WideTex Tip, 8 mm WideTex Tip, 10 mm WideTex Tip, 12 mm WideTex Tip, XL WideTex Tip, WideTex Adapter material Application: Liquid Waterproofing Maximum Flow Rate (GPM): 5 Maximum Hose Length (ft): 100 Maximum Sound Pressure Level (dB(A)): 81.8 Maximum Tip Size (in): 0.473 Maximum Working Pressure (MPa): 0.7 Maximum Working Pressure (psi): 100 minimum Generator Power (W): 7500 Model: TexSpray RTX Overall Height (in): 39.5 Overall Length (in): 33.75 Overall Width (in): 22.75 Power Rating (HP): 2 Power Source: Electric Product Series: Pro Interior Series: 5000PI Type: Air-Assisted Airless Sprayer Voltage (V): 120 Weight (lb): 164 Wetted material: Aluminum, Brass, Elastomer, Plastic, Carbon Steel, Stainless Steel Hopper Capacity (L): 57 Maximum Hose Length (m): 30.5 Maximum Tip Size (cm): 1.2009 Maximum Tip Size (mm): 12 Maximum Working Pressure (bar): 6.9 Maximum Working Pressure (kPa): 690 Overall Height (cm): 100 Overall Height (mm): 1000 Overall Length (cm): 86 Overall Length (mm): 860 Overall Width (cm): 58 Overall Width (mm): 580 Recommended Annual Usage: Up to 2500 gallons per year Weight (kg): 74.4

Pressure Rating

100 psi max working

HS Code

8424.20
