Graco TexSpray HTX 2030 Complete Plus+, Trigger Gun
Pricing
Request a quote
We reply within 24 hours
Product Description

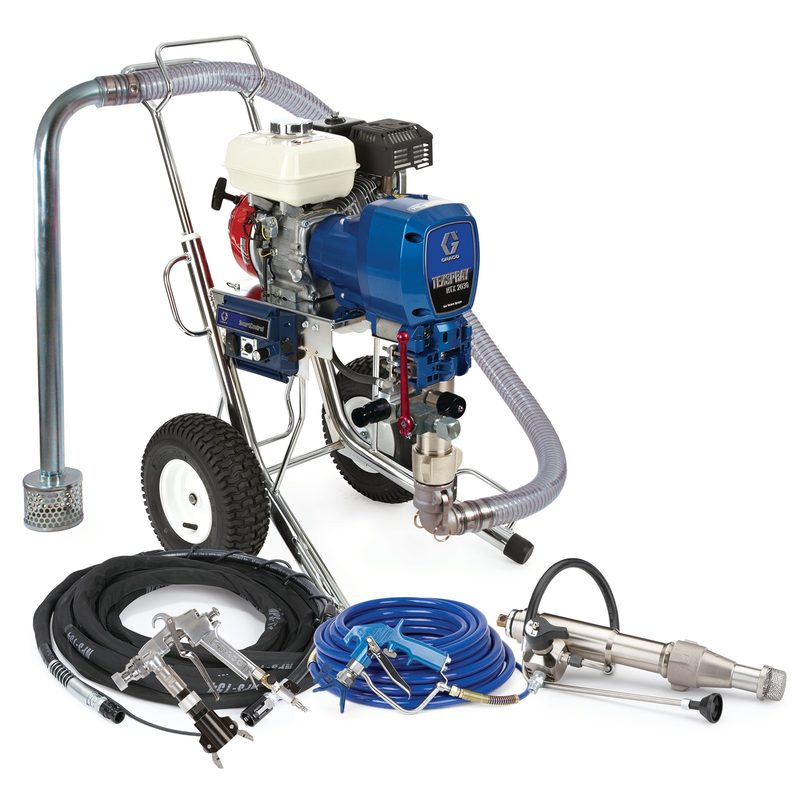

Graco 278678 TexSpray HTX 2030 Complete Plus+, Trigger Gun, part number 278678. Graco TexSpray airless sprayer for spraying architectural texture, drywall, fireproofing and heavy-bodied finish materials. 3300 psi maximum working pressure. Maximum tip size 0.048 in. Weight 150 lb. All values read from the Graco product page (278678 on graco.com).
Technical Specifications
- Brand
- Graco
- Line
- TexSpray
- Part number
- 278678
- Compatible Material
- Block Filler, Drywall Mud, Elastomeric Coating
- Convertible
- Non-Convertible
- Engine Brand
- Honda
- Engine Size (HP)
- 6.5
- Frame Configuration
- Cart
- Includes
- MaxLife Endurance High-Pressure Pump, Trigger Gun Applicator, Heavy-Duty Blue Texture Gun, 3/4 in x 50 ft (15.2 m) Hose, 3/8 in x 50 ft BlueMax II Airless Hose, 1/4 in x 3 ft BlueMax II Airless Whip Hose, RAC X LTX 643 Spray Tip, RAC X Guard, Fine Finish Kit with 1/8 in, 1/4 in, 5/16 in, 3/8 in Nozzles, 55 gal Suction Set
- Material Application
- Liquid Waterproofing
- Maximum Flow Rate (GPM)
- 2.2
- Maximum Tip Size (in)
- 0.048
- Maximum Tip Size 1 Gun (in)
- 0.048
- Maximum Working Pressure (MPa)
- 22.8
- Maximum Working Pressure (psi)
- 3300
- Model
- TexSpray HTX
- Number of Guns
- 1
- Power Source
- Gas
- Pump Rod Type
- Chromex
- Pump Type
- MaxLife
- Series
- 2030
- Type
- Airless Sprayer
- Weight (lb)
- 150
- Maximum Flow Rate (L/min)
- 8.33
- Maximum Tip Size (cm)
- 0.1219
- Maximum Tip Size (mm)
- 1.219
- Maximum Tip Size 1 Gun (cm)
- 0.1219
- Maximum Tip Size 1 Gun (mm)
- 1.219
- Maximum Working Pressure (bar)
- 228
- Maximum Working Pressure (kPa)
- 22800
- Weight (kg)
- 68
Standards & Compliance
- Pressure Rating
- 3300 psi max working
- HS Code
- 8424.20
Compatibility & Fitment
Complete TexSpray unit. Match tip size, hose length and material viscosity to the application; confirm power supply (electric / pneumatic) before ordering.
Product Documentation
More from Graco
Graco
Graco TexSpray FastFinish Pro System
25D492
Graco
Graco TexSpray FastFinish Standard System
25D494
Graco
Graco FastFinish CF9 Air Compressor
25D490
Graco
Graco FastFinish Pressure-Boosted Hopper Gun
25D496
Graco
Graco G-TEX Gravity-Feed Hopper Gun
25D497
Graco
Graco TexSpray RTX 2500PI Texture Sprayer
17U219
Graco
Graco Mark IV HD 3-IN-1 Standard Series Electric Airless Sprayer
17E603
Graco
Graco Mark IV HD 3-IN-1 ProContractor Series Electric Airless Sprayer
17E604
Catalogue entry last verified: 2026-08-13. A manufacturer datasheet is attached to this entry — confirm application-critical values against it.
Frequently asked questions
- Where can I buy 278678?
- 278678 can be ordered from cballast.com as a Graco catalogue item: request a quotation on this page or email sales@cballast.com, and the order ships worldwide.
- What is the manufacturer part number for this Graco product?
- The manufacturer part number is 278678.
- What is the HS code for 278678?
- The customs tariff (HS) code for 278678 is 8424.20.
- Who manufactures 278678?
- 278678 is a Graco product in the Tools & Workshop Consumables range.
- Is a datasheet available for 278678?
- Yes — the 278678 datasheet can be viewed and downloaded on this page.
- What is the minimum order quantity for 278678?
- The minimum order quantity is 1.
- Is 278678 available?
- Yes — 278678 is available to order: fulfilment is from supplier stock in cBallast's European network, dispatched directly from the warehouse to the customer, with the exact lead time stated in the quotation (reply within 24 hours).
