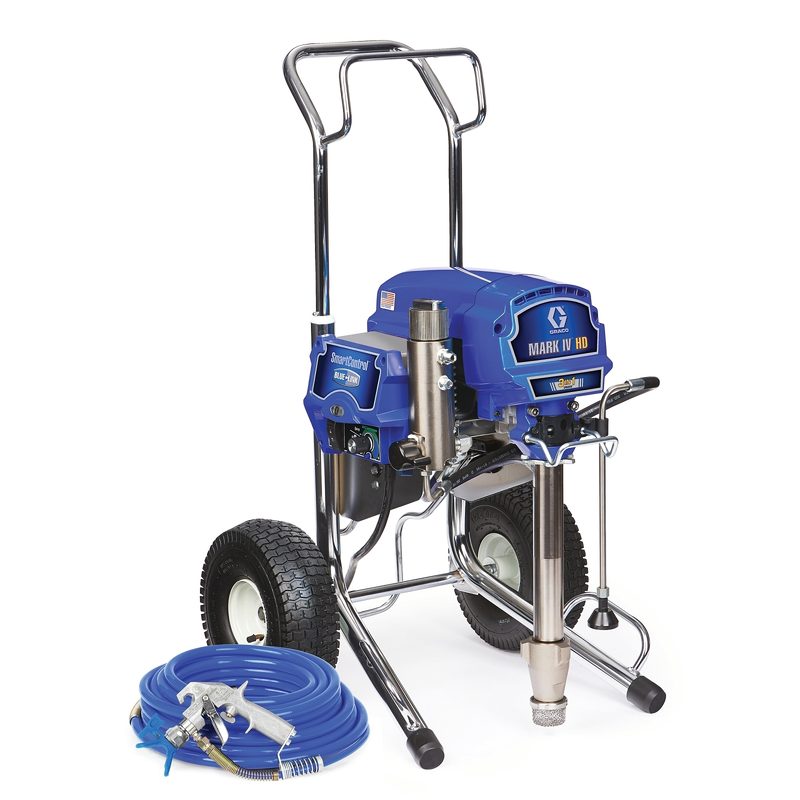

Graco Mark IV HD 3-IN-1 Standard Series Electric Airless Sprayer

Graco 17E603 Mark IV HD 3-in-1 Standard Series Electric Airless Sprayer, part number 17E603. Electric airless paint sprayer for applying architectural, protective and industrial coatings at high film build. 3300 psi maximum working pressure. Maximum tip size 0.033 in. MaxPower motor. SmartControl 4.0 pressure control. QuikChange pump mount. Weight 98 lb. All values read from the Graco product page (17E603 on graco.com).

Brand

Graco Line: Mark Part number: 17E603 Amperage (A): 15 Compatible Replacement Pump: 17H828 Convertible: Non-Convertible Engine Size (HP): 2.2 Features: Endurance Chromex Pump, MaxFlo 2, BlueLink System, SmartControl 4.0, FastFlush 2, MaxPower Brushless, Advantage Drive, WatchDog, Easy Out Filter, Heavy-Duty Prime Valve Fluid Outlet Size (in): 3/8 Fluid Outlet Thread Type: NPSM Frame Configuration: Hi-Boy Frequency (Hz): 50/60 Includes: FlexPlus Gun, RAC X LTX 425 Spray Tip, RAC X Guard, 3/8 in x 50 ft BlueMax II Airless Hose, 1/4 in x 3 ft BlueMax II Airless Whip Hose Maximum Flow Rate (GPM): 1.1 Maximum Sound Pressure Level (dB(A)): 82 Maximum Tip Size (in): 0.033 Maximum Tip Size 1 Gun (in): 0.033 Maximum Working Pressure (MPa): 22.8 Maximum Working Pressure (psi): 3300 minimum Generator Power (W): 5000 Model: Mark HD Motor Type: MaxPower Number of Guns: 1 Overall Height (in): 38.75 Overall Length (in): 26 Overall Width (in): 22.5 Power Rating (HP): 2.2 Power Rating (W): 1641 Power Rating (kW): 1.64 Power Source: Electric Pressure Control Type: SmartControl 4.0 Product Series: Standard Pump Mount Type: QuikChange Pump Rod Type: Chromex Pump Sleeve material: Stainless Steel Series: IV Type: Airless Sprayer Voltage (V): 120 Volume Per Cycle (cycles/gal): 195 Weight (lb): 98 Wetted material: Zinc-Plated Carbon Steel, Nickel-Plated Carbon Steel, Nylon, Stainless Steel, PTFE, Acetal, Leather, UHMWPE, Aluminum, Tungsten Carbide, PEEK, Brass Fluid Outlet Size (mm): 9.525 Maximum Flow Rate (L/min): 4.1 Maximum Working Pressure (bar): 228 Maximum Working Pressure (kPa): 22800 Overall Height (cm): 98.4 Overall Height (mm): 984 Overall Length (cm): 66 Overall Length (mm): 660 Overall Width (cm): 57.2 Overall Width (mm): 572 Recommended Annual Usage: 100-200 gallons per week Weight (kg): 45

Pressure Rating

3300 psi max working

HS Code

8424.20
