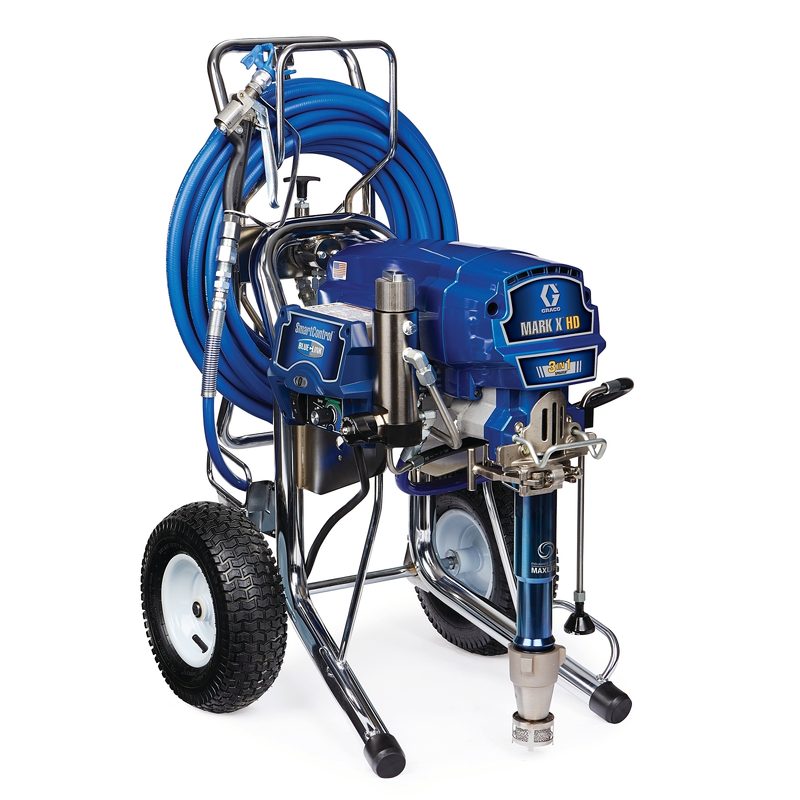

Graco Mark X HD 3-IN-1 ProContractor Series Electric Airless Sprayer

Graco 17E609 Mark X HD 3-in-1 ProContractor Series Electric Airless Sprayer, part number 17E609. Electric airless paint sprayer for applying architectural, protective and industrial coatings at high film build. 3300 psi maximum working pressure. Maximum tip size 0.045 in. MaxPower motor. SmartControl 4.0 pressure control. ProConnect 2 pump mount. Weight 178 lb. All values read from the Graco product page (17E609 on graco.com).

Brand

Graco Line: Mark Part number: 17E609 Amperage (A): 16 Compatible Replacement Pump: 17H835 Convertible: Non-Convertible Engine Size (HP): 4 Features: Endurance Vortex MaxLife Pump, MaxFlo 2, BlueLink System, SmartControl 4.0, QuikReel, ProConnect 2, Crushproof Inlet Strainer, MaxPower Brushless, Advantage Drive, WatchDog, Easy Out Filter, Heavy-Duty Prime Valve Fluid Outlet Size (in): 1/2 Fluid Outlet Thread Type: NPSM Frame Configuration: Hi-Boy Frequency (Hz): 50/60 Hose Reel Type: QuikReel Includes: Inline Heavy-Duty Texture Gun, RAC X LTX 531 Spray Tip, RAC X LTX 541 Spray Tip, RAC X Guard, 1/2 in x 50 ft BlueMax II Airless Hose, 3/8 in x 11 ft 10 in Airless Whip Hose Maximum Flow Rate (GPM): 2.1 Maximum Sound Pressure Level (dB(A)): 82 Maximum Tip Size (in): 0.045 Maximum Tip Size 1 Gun (in): 0.045 Maximum Working Pressure (MPa): 22.8 Maximum Working Pressure (psi): 3300 minimum Generator Power (W): 5000 Model: Mark HD Motor Type: MaxPower Number of Guns: 1 Overall Height (in): 39 Overall Length (in): 30 Overall Width (in): 24 Power Rating (HP): 4.0 Power Rating (W): 2983 Power Rating (kW): 2.98 Power Source: Electric Pressure Control Type: SmartControl 4.0 Product Series: ProContractor Pump Mount Type: ProConnect 2 Pump Rod Type: MaxLife Pump Sleeve material: MaxLife Series: X Type: Airless Sprayer Voltage (V): 230 Volume Per Cycle (cycles/gal): 70 Weight (lb): 178 Wetted material: Zinc-Plated Carbon Steel, Nickel-Plated Carbon Steel, Nylon, Stainless Steel, PTFE, Acetal, Leather, UHMWPE, Aluminum, Tungsten Carbide, PEEK, Brass Fluid Outlet Size (mm): 12.7 Maximum Flow Rate (L/min): 8.0 Maximum Working Pressure (bar): 228 Maximum Working Pressure (kPa): 22800 Overall Height (cm): 99 Overall Height (mm): 990 Overall Length (cm): 75 Overall Length (mm): 750 Overall Width (cm): 61 Overall Width (mm): 610 Weight (kg): 81

Pressure Rating

3300 psi max working

HS Code

8424.20
