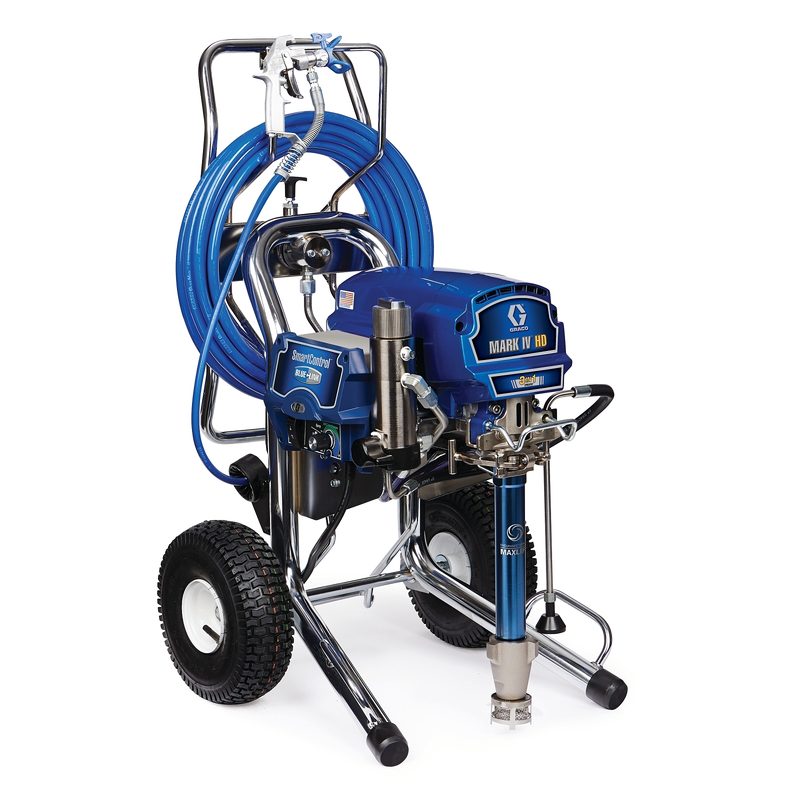

Graco Mark IV HD 3-IN-1 ProContractor Series Electric Airless Sprayer

Graco 17E604 Mark IV HD 3-in-1 ProContractor Series Electric Airless Sprayer, part number 17E604. Electric airless paint sprayer for applying architectural, protective and industrial coatings at high film build. 3300 psi maximum working pressure. Maximum tip size 0.033 in. MaxPower motor. SmartControl 4.0 pressure control. ProConnect 2 pump mount. Weight 119 lb. All values read from the Graco product page (17E604 on graco.com).

Brand

Graco Line: Mark Part number: 17E604 Amperage (A): 15 Compatible Replacement Pump: 17H832 Convertible: Non-Convertible Engine Size (HP): 2.2 Features: Endurance Vortex MaxLife Pump, MaxFlo 2, BlueLink System, SmartControl 4.0, QuikReel, ProConnect 2, FastFlush 2, Crushproof Inlet Strainer, MaxPower Brushless, Advantage Drive, WatchDog, Easy Out Filter, Heavy-Duty Prime Valve Fluid Outlet Size (in): 3/8 Fluid Outlet Thread Type: NPSM Frame Configuration: Hi-Boy Frequency (Hz): 50/60 Hose Reel Type: QuikReel Includes: FlexPlus Gun, RAC X LTX 425 Spray Tip, RAC X Guard, 3/8 in x 50 ft BlueMax II Airless Hose, 1/4 in x 3 ft BlueMax II Airless Whip Hose Maximum Flow Rate (GPM): 1.1 Maximum Sound Pressure Level (dB(A)): 82 Maximum Tip Size (in): 0.033 Maximum Tip Size 1 Gun (in): 0.033 Maximum Working Pressure (MPa): 22.8 Maximum Working Pressure (psi): 3300 minimum Generator Power (W): 5000 Model: Mark HD Motor Type: MaxPower Number of Guns: 1 Overall Height (in): 39 Overall Length (in): 29.5 Overall Width (in): 22.5 Power Rating (HP): 2.2 Power Rating (W): 1641 Power Rating (kW): 1.64 Power Source: Electric Pressure Control Type: SmartControl 4.0 Product Series: ProContractor Pump Mount Type: ProConnect 2 Pump Rod Type: MaxLife Pump Sleeve material: MaxLife Series: IV Type: Airless Sprayer Volume Per Cycle (cycles/gal): 195 Weight (lb): 119 Wetted material: Zinc-Plated Carbon Steel, Nickel-Plated Carbon Steel, Nylon, Stainless Steel, PTFE, Acetal, Leather, UHMWPE, Aluminum, Tungsten Carbide, PEEK, Brass Fluid Outlet Size (mm): 9.525 Maximum Flow Rate (L/min): 4.1 Maximum Working Pressure (bar): 228 Maximum Working Pressure (kPa): 22800 Overall Height (cm): 99 Overall Height (mm): 990 Overall Length (cm): 75 Overall Length (mm): 750 Overall Width (cm): 57.2 Overall Width (mm): 572 Recommended Annual Usage: 100-200 gallons per week Weight (kg): 54

Pressure Rating

3300 psi max working

HS Code

8424.20
