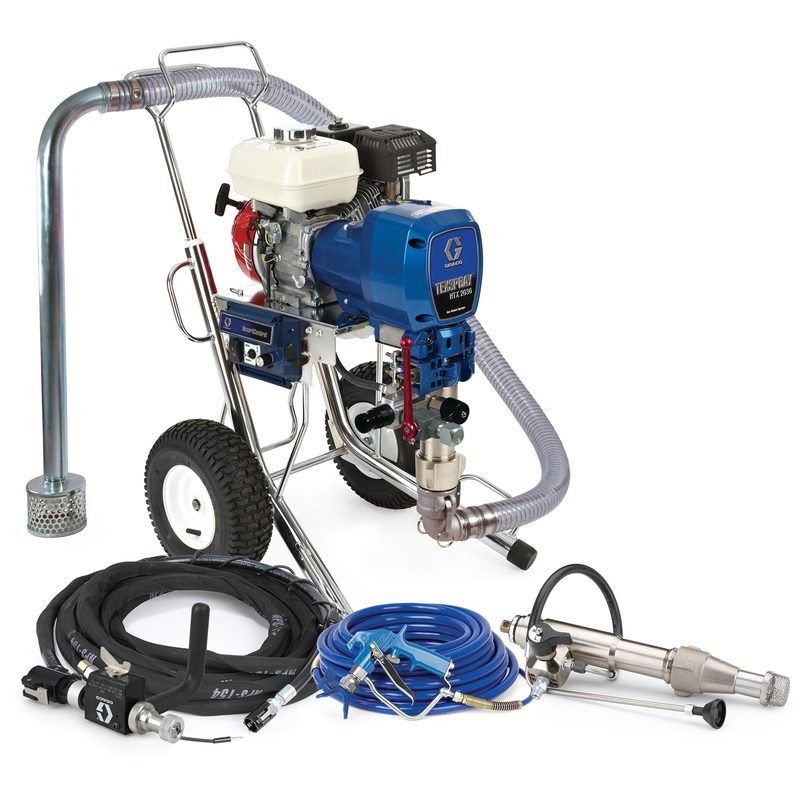

Graco TexSpray HTX 2030 Complete Plus+, FreeFlo Inline Gun and 100 ft Hose
Pricing
Request a quote
We reply within 24 hours
Product Description
Graco 258741 TexSpray HTX 2030 Complete Plus+, FreeFlo Inline Gun and 100 ft Hose, part number 258741. Graco TexSpray airless sprayer for spraying architectural texture, drywall, fireproofing and heavy-bodied finish materials. 3300 psi maximum working pressure. Maximum tip size 0.048 in. Weight 150 lb. All values read from the Graco product page (258741 on graco.com).
Technical Specifications
- Brand
- Graco
- Line
- TexSpray
- Part number
- 258741
- Compatible Material
- Block Filler, Drywall Mud, Elastomeric Coating
- Convertible
- Non-Convertible
- Engine Brand
- Honda
- Engine Size (HP)
- 6.5
- Frame Configuration
- Cart
- Includes
- MaxLife Endurance High-Pressure Pump, FreeFlo Inline Gun, Heavy-Duty Blue Texture Gun, 3/4 in x 50 ft (15.2 m) Hose, 3/8 in x 50 ft BlueMax II Airless Hose, 1/4 in x 3 ft BlueMax II Airless Whip Hose, RAC X LTX 643 Spray Tip, RAC X LTX 671 Spray Tip, RAC X Guard, 4 mm, 6 mm, 8 mm, 10 mm Nozzles, Fine Finish Kit with 1/8 in, 1/4 in, 5/16 in, 3/8 in Nozzles, 55 gal Suction Set
- Material Application
- Liquid Waterproofing
- Maximum Flow Rate (GPM)
- 2.2
- Maximum Tip Size (in)
- 0.048
- Maximum Tip Size 1 Gun (in)
- 0.048
- Maximum Tip Size 2 Guns (in)
- 0.035
- Maximum Tip Size 3 Guns (in)
- 0.027
- Maximum Tip Size 4 Guns (in)
- 0.023
- Maximum Working Pressure (MPa)
- 22.8
- Maximum Working Pressure (psi)
- 3300
- Model
- TexSpray HTX
- Number of Guns
- 4
- Power Source
- Gas
- Pump Rod Type
- Chromex
- Pump Type
- MaxLife
- Series
- 2030
- Type
- Airless Sprayer
- Weight (lb)
- 150
- Maximum Flow Rate (L/min)
- 8.33
- Maximum Working Pressure (bar)
- 228
- Maximum Working Pressure (kPa)
- 22800
- Weight (kg)
- 68
Standards & Compliance
- Pressure Rating
- 3300 psi max working
- HS Code
- 8424.20
Compatibility & Fitment
Complete TexSpray unit. Match tip size, hose length and material viscosity to the application; confirm power supply (electric / pneumatic) before ordering.
