Glamox
RLXCXZ1 160WAC1D Wide 2HCBABK
Part numberLN1002259EAN / GTIN7072720000298HS code8543.70
Lighting & Electrical Accessories
Floodlights
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description

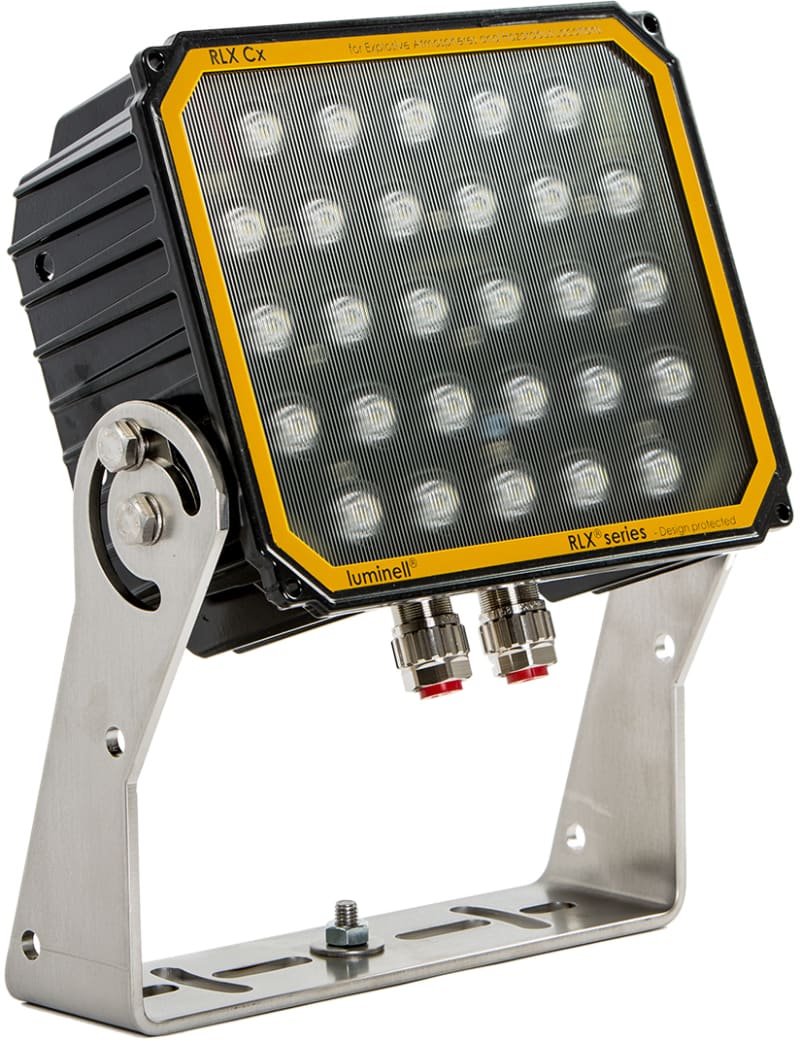

Glamox LN1002259 Luminell - RLX Cx Floodlight Ex Zone 1, 160W, Wide beam, 9,7kg, dimmable, 2xM25, 2xM20.
Technical Specifications
- Manufacturer part number (MPN)
- LN1002259 EAN / GTIN: 7072720000298 HS code: 8543.70 Sales unit: pcs EMC Category: EMC1 : EMC B – IEC 60533 Bridge and Open deck minimum Voltage -10% (VAC): 100 Maximum voltage +10% (VAC): 277 minimum frequency -5% (Hz): 50 Maximum frequency +5% (Hz): 60 Main Feed DC (V) Min: 100 Main Feed DC (V) Max: 300 Total consumption (W): 160 Inrush current (A): 50 Number of luminaires on a 10A MCB type B: 7 Number of luminaires on a 10A MCB type C: 11 Number of luminaires on a 16A MCB type B: 12 Number of luminaires on a 16A MCB type C: 20 Power factor: 0.90 Certification: ATEX,Ex Zone 1,Ex Zone 2,Ex Zone 21,Ex Zone 22,IECEx,INMETRO Marine Approved: Yes Ignition Class: T3200° Atex code: Ex II 2G II 2D Class Ex Gas: IIC Class Ex Dust: IIIC Max surface temp Dust: 200 Class III: No EX zone: Ex zone 1,Ex zone 2,Ex zone 21,Ex zone 22 minimum ambient temperature (ºC): -55 Maximum ambient temperature (°C): 55 IP classification: 66/67 Corrosion class: C5-M Light source: LED Lumen out (lm): 13.391 Lumen per Watt (lm/W): 84 Lamp colour temp (K): 5000 CRI Colour rendering index: >70 Light source included: Yes Dimmable: Yes Beam angle (°): 80x60 Type of LED Driver: HFDa: Dimming Analogue 1-10V L70 Median useful life LED Ta45 (hr): 100000 Main body material: Seawater-resistant aluminium Surface treatment: Anodized Body colour: BL - Black Main body colour name: Graphite black Main body colour surface: Powder coated Main body colour RAL code: RAL 9011 Mounting bracket material: Stainless steel AISI 316 Length (mm): 306 Width (mm): 144 Height (mm): 367 Net weight (kg): 9.60 Termination: 4x6+2x16+8x2.5mm2 Spring Cage Cable gland: M25-Nickel plated brass Number of cable glands: 2 Blind plugs: M20-Nickel plated brass Number of blind plugs: 2 Max cable diameter (mm): 10 Min cable diameter (mm): 18 Item gross weight (kg): 10.43
Standards & Compliance
- HS Code
- 8543.70
Cross References
- EAN 7072720000298
- SAP 1200122195
- Code 81987601
Product Documentation
Document preview: RLXCXZ1 160WAC1D Wide 2HCBABK (LN1002259) — Specification sheet
More from Glamox
Glamox
RLX DXZ1 240WAC1D MB40 3HEAABK
LN1002397
Glamox
MIR KIT-1200 G2 5000 HF840 FR/PC IP66/67
MIR102147
Glamox
RLX DXZ1 160WAC1D Wide 3HEBABK
LN1002393
Glamox
Glamox I60-1200 LED Luminaire 4600 lm DALI MPW Sensor 840
I60097050
Glamox

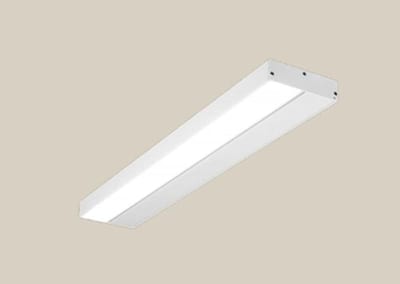

A41-W1200 LED 1600 HF 830 SW
A41141231
Glamox

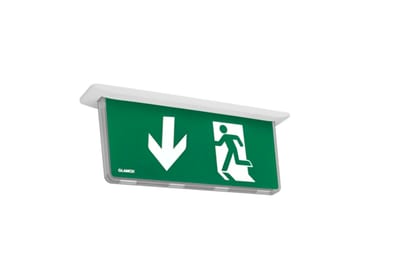

E80-R 10X26 DOWNE1/DALI
E80001310
Glamox

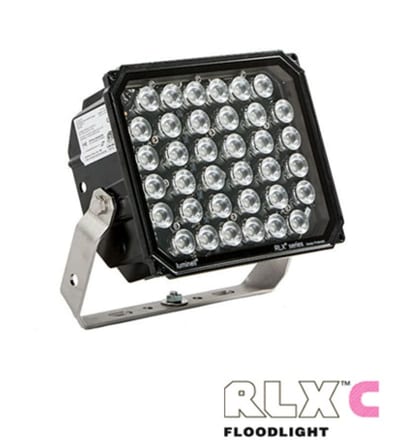

RLXC 80WAC1 Wide 2ABAABK
LN1000021
Glamox

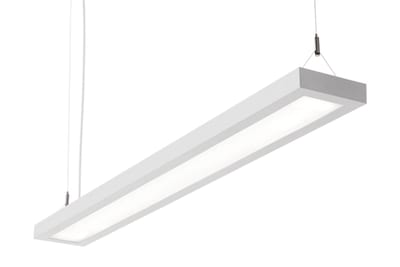

C70-P1280 40/60 LED 5800 DALI
C70229722
Catalogue entry last verified: 2026-09-30. A manufacturer datasheet is attached to this entry — confirm application-critical values against it.
Frequently asked questions
- Where can I buy LN1002259?
- LN1002259 can be ordered from cballast.com as a Glamox catalogue item: request a quotation on this page or email sales@cballast.com, and the order ships worldwide.
- What is the manufacturer part number for this Glamox product?
- The manufacturer part number is LN1002259.
- What is the HS code for LN1002259?
- The customs tariff (HS) code for LN1002259 is 8543.70.
- Who manufactures LN1002259?
- LN1002259 is a Glamox product in the Lighting & Electrical Accessories range.
- Is a datasheet available for LN1002259?
- Yes — the LN1002259 datasheet can be viewed and downloaded on this page.
- What is the minimum order quantity for LN1002259?
- The minimum order quantity is 1.
- Is LN1002259 available?
- Yes — LN1002259 is available to order: fulfilment is from supplier stock in cBallast's European network, dispatched directly from the warehouse to the customer, with the exact lead time stated in the quotation (reply within 24 hours).
