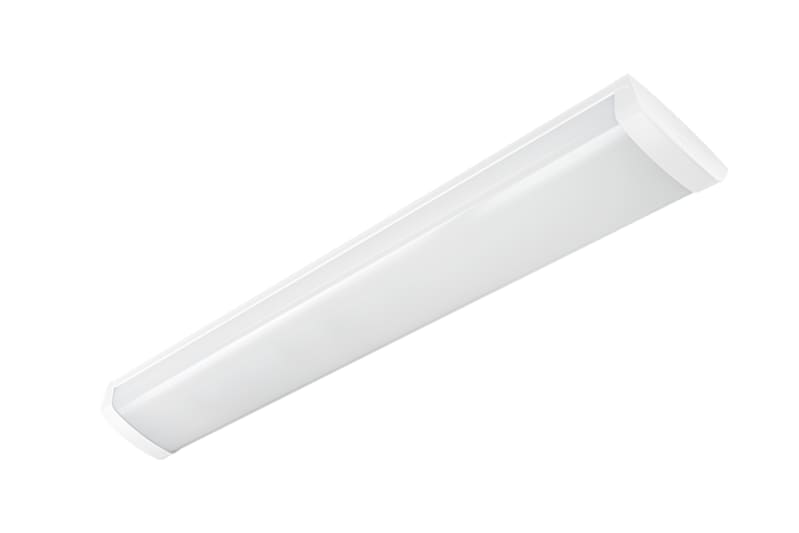

Glamox I60-1200 LED Luminaire 4600 lm DALI MPW Sensor 840

Splash-proof linear LED luminaire for interior and industrial spaces, 4968 lm output at 4000 K, IP44 and IK07. DALI-D control with integrated PIR presence and daylight-harvesting sensor supports occupancy-based dimming and constant-light regulation. Zigbee wireless (EasyAir) driver, 37 W total input, >100 000 h L80B50 LED lifetime for long service intervals.

Manufacturer part number (MPN)

I60097050 EAN / GTIN: 7054130970507 HS code: 8543.70 Sales unit: pcs Product shape: Linear User Control: App Type of User Interface: Screen User Control Short Text: App based control LMS Wireless solution: ZigBee LMS Protocol: Wireless Leakage Current (mA): 0.50 Main Feed AC (V) Min: 220 Main Feed AC (V) Max: 240 Main Feed Frequency Min: 50 Main Feed Frequency Max: 60 Main Feed DC (V) Min: 186 Main Feed DC (V) Max: 250 Total Consumption (W): 37 Number Of Luminaire MCB 10B: 13 Number Of Luminaire MCB 10C: 20 Number Of Luminaire MCB 16B: 21 Number Of Luminaire MCB 16C: 35 minimum TA (ºC): -25 Maximum TA (ºC): 45 IK classification: 07 IP classification: 44 Light source: LED Lumen Out (lm): 4.968 Lumen Per Watt (lm/W): 146 Lamp colour temp (K): 4000 Colour Rendering Index: >80 Light Distribution Up %: 5 Light Distribution Down %: 95 MacAdam step: 3 Energy Class Light Source: C Type of LED Driver: WZ: Wireless Zigbee Number of Driver: 1 LED Lifetime L80B50 Ta25 (h): >100000 LED Lifetime L80B50 Max Ta (h): 100000 Driver lifetime at Ta=25, 10% failure rate (h): 100.000 Driver lifetime at Ta=45, 10% failure rate (h): 50.000 Luminous flux decline (LLMF) 50.000h Ta25: 0.90 Sensor Type: PIR+Daylight harvesting (CLS) Pre-set functionality daylight sensor: CLS Light Sensor Max Lux: 999 Light Sensor Min Lux: 0 Sensor Cover Cross (°): 62 Sensor Cover Length (°): 84 Sensor Cover Cross Presence: 45 Pre-set functionality presence sensor: PROG Max mounting height: 3 Max Hold Time: Programmable Min Hold Time: 5 sec Optic Name: OP - Opal diffuser in acrylic UGR (70/50/20 & 4H-8H crosswise): 24 Diffuser material: Polycarbonate Diffuser material Design: Opal Optic main category: Diffuser Body material: Steel Treatment housing: Galvanised Body Colour: WH - White Main Body Colour Name: White Length (mm): 1.222 Width (mm): 165 Height (mm): 57 Item Net Weight (kg): 3.07 Termination: 5x2x2.5mm2 Push In Through Wiring: 5x2.5 Repairable/Changeable Parts: Internal driver,Optic,Sensor,End caps Packaging material: Cardboard,Recycled cardboard Product Mounting: Ceiling surface,Wall surface Item Gross Weight (kg): 3.34

HS Code

8543.70

• EAN 7054130970507
• SAP 1200713195
• Code 83819189
