Glamox

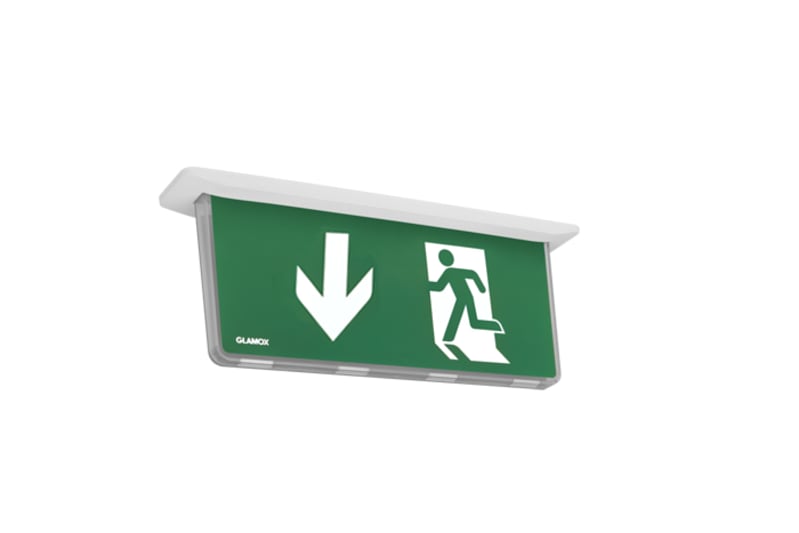

E80-R 10X26 DOWNE1/DALI
Part numberE80001310EAN / GTIN4741145127622
Lighting & Electrical Accessories
Emergency Lighting
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
Glamox E80001310 E80-R 10x26 DOWN LED E1/DALI.
Technical Specifications
- Manufacturer part number (MPN)
- E80001310 EAN / GTIN: 4741145127622 Sales unit: pcs Product shape: Rectangular Additional information: Seperate Emg Light source Certification: ENEC Leakage Current (mA): 0.10 Main Feed AC (V) Min: 220 Main Feed AC (V) Max: 240 Main Feed Frequency Min: 50 Main Feed Frequency Max: 60 Total Consumption (W): 4 IEC Protection Class: II minimum TA (ºC): 0 Maximum TA (ºC): 45 IP classification: 20 Light source: LED Lumen Out (lm): 2 Lumen Per Watt (lm/W): 60 MacAdam step: 3 Number of Driver: 1 LED Lifetime L70B50 Ta25 (h): >100000 LED Lifetime L80B50 Max Ta (h): 80000 Driver lifetime at Ta=45, 10% failure rate (h): 50.000 Luminous flux decline (LLMF) 50.000h Ta25: 0.80 Emergency Type: DALI Duration (hrs): 1 Charging power consumption (Emg) (W): 1.50 Percentage Light Out In Emergency: 100 Reading distance sign (m): 20 Battery Type: NiMh Battery Form: Stick Battery mAh: 2.000 Battery Voltage (V): 2.40 Battery Sparepart No: SP-19596224-I1 Battery Termination: Molex 5556/57 Body material: Aluminium Body Colour: WH - White Main Body Colour Name: White Length (mm): 316 Width (mm): 55 Height (mm): 198 Item Net Weight (kg): 1.38 Termination: 5x2x2.5mm2 Push In Packaging material: Recycled cardboard,Paper Product Mounting: Ceiling recessed,Ceiling surface Item Gross Weight (kg): 1.50
Cross References
- EAN 4741145127622
- SAP 1200927506
- Code 84212805
Product Documentation
Document preview: E80-R 10X26 DOWNE1/DALI (E80001310) — Specification sheet
