Glamox
A41-W1200 LED 1600 HF 830 SW
Part numberA41141231EAN / GTIN4741145212731HS code9405.11
Lighting & Electrical Accessories
Ceiling & Wall Luminaires
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description

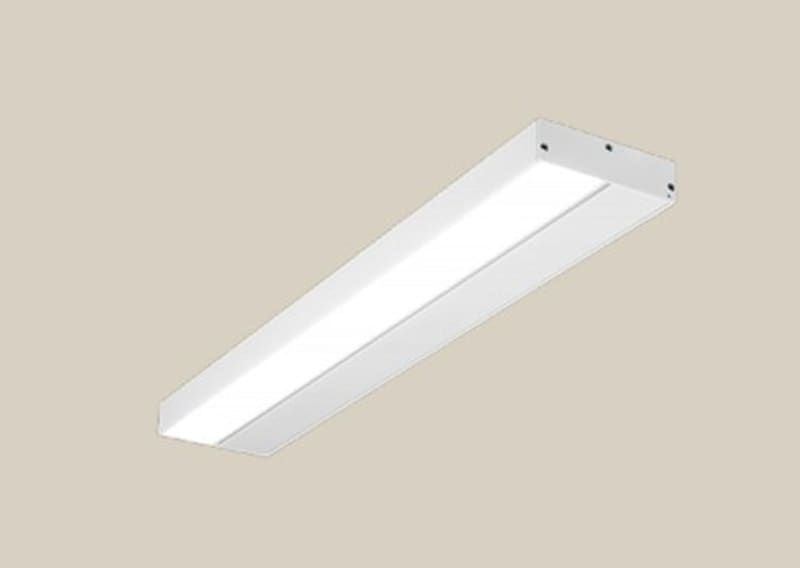

Glamox A41141231 A41-W1200 LED 1600 HF 830 SW.
Technical Specifications
- Manufacturer part number (MPN)
- A41141231
- EAN / GTIN
- 4741145212731
- Sales unit
- pcs
- Product shape
- Linear
- EPD (Environmental Product Declaration)
- Yes
- Leakage Current (mA)
- 0.25
- Main Feed AC (V) Min
- 220
- Main Feed AC (V) Max
- 240
- Main Feed Frequency Min
- 50
- Main Feed Frequency Max
- 60
- Total Consumption (W)
- 22
- Number Of Luminaire MCB 10B
- 22
- Number Of Luminaire MCB 10C
- 37
- Number Of Luminaire MCB 16B
- 36
- Number Of Luminaire MCB 16C
- 60
- Maximum TA (ºC)
- 25
- IP classification
- 40
- Light source
- LED
- Lumen Out (lm)
- 1.642
- Lumen Per Watt (lm/W)
- 75
- Lamp colour temp (K)
- 3000
- Colour Rendering Index
- >80
- MacAdam step
- 3
- Energy Class Light Source
- C
- Type of LED Driver
- HF: Non dimmable
- Number of Driver
- 1
- LED Lifetime L80B50 Ta25 (h)
- 100000
- LED Lifetime L90B50 Ta25 (h)
- 60000
- Luminous flux decline (LLMF) 50.000h Ta25
- 0.90
- Optic Name
- OP - Opal diffuser in acrylic
- Optic main category
- Diffuser
- Body Material
- Aluminium
- Body Colour
- WH - White
- Main Body Colour Name
- White
- Length (mm)
- 1.194
- Width (mm)
- 105
- Height (mm)
- 30
- Item Net Weight (kg)
- 2.02
- Termination
- 3x2x2.5mm2 Push In
- Cradle To Gate A1-A3 (Kg C02-eq)
- 26.2
- Total Recyclable Material %
- 59.08
- Actual Recycled Material - EN15804 %
- 75.83
- Repairable/Changeable Parts
- LED module,Internal driver,Optic,Sensor,End caps
- Packaging Material
- Recycled cardboard,Plastic
- Product Mounting
- Ceiling surface,Wall surface
- Item Gross Weight (kg)
- 2.20
Standards & Compliance
- HS Code
- 9405.11
Cross References
- EAN 4741145212731
- SAP 1200391514
- Code 82423318
Product Documentation
Document preview: A41-W1200 LED 1600 HF 830 SW (A41141231) — Specification sheet
