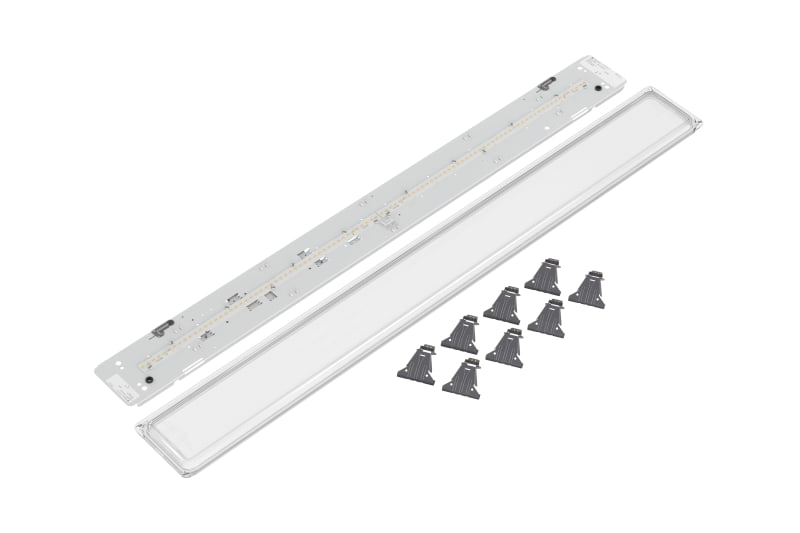

MIR KIT-1200 G2 5000 HF840 FR/PC IP66/67

Glamox MIR102147 MIR KIT-1200 G2 5000 HF 840 FR/PC IP66/67.

Manufacturer part number (MPN)

MIR102147 EAN / GTIN: 7054131021475 Sales unit: pcs IP rating: IP66 Product shape: Linear EMC Category: EMC1 : EMC B – IEC 60533 Bridge and Open deck Leakage current (mA): 0.30 Voltage from (V): 220 Maximum voltage (V): 240 minimum frequency (Hz): 50 Maximum frequency (Hz): 60 Main Feed DC (V) Min: 180 Main Feed DC (V) Max: 270 Total consumption (W): 34 Total power consumption start (A): 30 Number of luminaires on a 10A MCB type B: 13 Number of luminaires on a 10A MCB type C: 21 Number of luminaires on a 16A MCB type C: 35 Marine Approved: No EX zone: No Ex minimum ambient temperature (ºC): -25 Maximum ambient temperature (°C): 45 IP classification: 66/67 Light source: LED Lumen out (lm): 5.168 Number of lamps: 1 Lumen per Watt (lm/W): 153 Lamp colour temp (K): 4000 CRI Colour rendering index: >80 Light distribution up %: 2 Light distribution down %: 98 MacAdam step: 3 Energy class light source: C Light source included: Yes Type of LED Driver: HF: Non dimmable Number of Driver: 1 L80 Median useful life LED Ta45 (hr): 100000 Optic: FR/PC - Frosted diffuser in polycarbonate material of diffuser: Polycarbonate Optic main category: Diffuser Main body material: Steel Body colour: WH - White Main body colour name: White Length (mm): 1.250 Net weight (kg): 2.83 Termination: 5X6.0mm2 Screw Terminal Type of through wiring: 5x2.5 Repairable/Changeable Parts: Internal driver,Optic Packaging material: Recycled cardboard Item gross weight (kg): 3.08

• EAN 7054131021475
• SAP 1200790597
• Code 83957636
