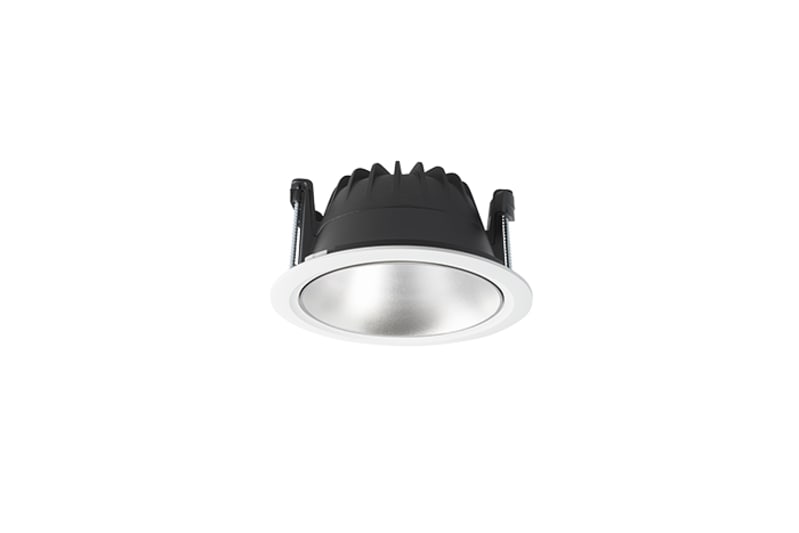

D70-R155 G2 2200 HF 830 LI SM/WH

Glamox D70554378 D70-R155 G2 2200 HF 830 LI SM/WH.

Manufacturer part number (MPN)

D70554378 EAN / GTIN: 4741145543781 Sales unit: pcs Product shape: Round EPD (Environmental Product Declaration): Yes Certification: ENEC minimum TA (ºC): -20 Maximum TA (ºC): 35 IP classification: 54 from underneath \ 20 from above Light source: LED Lumen Out (lm): 2.141 Number Of Light Source: 1 Lumen Per Watt (lm/W): 133 Lamp colour temp (K): 3000 Colour Rendering Index: >80 Light Distribution Up %: 0 Light Distribution Down %: 100 MacAdam step: 3 Energy Class Light Source: C Type of LED Driver: HF: Non dimmable Number of Driver: 1 LED Lifetime L80B50 Ta25 (h): >100000 LED Lifetime L90B50 Ta25 (h): 100000 Luminous flux decline (LLMF) 50.000h Ta25: 0.95 Main Feed AC (V) Min: 220 Main Feed AC (V) Max: 240 Main Feed Frequency Min: 50 Main Feed Frequency Max: 60 Total Consumption (W): 16 IEC Protection Class: II Number Of Luminaire MCB 10B: 19 Number Of Luminaire MCB 10C: 31 Number Of Luminaire MCB 16C: 51 Number Of Luminaire MCB 20C: 70 Optic Name: SM - Silver matt reflector UGR (70/50/20 & 4H-8H crosswise): 20 Optic main category: Reflector Body material: Aluminium Main Body material Production Method: Die-casted Body Colour: WH - White Main Body Colour Name: White Decor material: ABS plastic Height (mm): 78 Diameter (mm): 168 Cut out (mm): 155 Item Net Weight (kg): 0.79 Cut out diameter: 155 Termination: 3x2x2.5mm2 Push In Plug Type: Linect Repairable/Changeable Parts: LED module,Internal driver,Optic,Sensor Packaging material: Cardboard Product Mounting: Ceiling recessed Item Gross Weight (kg): 0.86

• EAN 4741145543781
• SAP 1200790588
• Code 83957644
