Glamox
D70-R155 G2 1400 HF 830 LI SM/WH
Part numberD70549766EAN / GTIN4741145497664
Lighting & Electrical Accessories
Track Lighting
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description

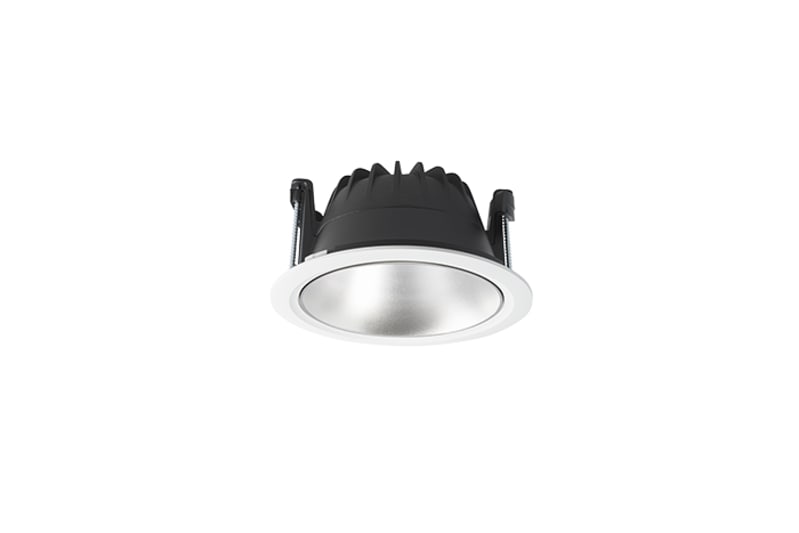

Glamox D70549766 D70-R155 G2 1400 HF 830 LI SM/WH.
Technical Specifications
- Manufacturer part number (MPN)
- D70549766 EAN / GTIN: 4741145497664 Sales unit: pcs Product shape: Round EPD (Environmental Product Declaration): Yes Certification: ENEC minimum TA (ºC): -20 Maximum TA (ºC): 45 IP classification: 54 from underneath \ 20 from above Light source: LED Lumen Out (lm): 1.350 Number Of Light Source: 1 Lumen Per Watt (lm/W): 135 Lamp colour temp (K): 3000 Colour Rendering Index: >80 Light Distribution Up %: 0 Light Distribution Down %: 100 MacAdam step: 3 Energy Class Light Source: C Type of LED Driver: HF: Non dimmable Number of Driver: 1 LED Lifetime L80B50 Ta25 (h): >100000 LED Lifetime L90B50 Ta25 (h): 100000 Luminous flux decline (LLMF) 50.000h Ta25: 0.95 Main Feed AC (V) Min: 220 Main Feed AC (V) Max: 240 Main Feed Frequency Min: 50 Main Feed Frequency Max: 60 Total Consumption (W): 10 IEC Protection Class: II Number Of Luminaire MCB 10B: 86 Number Of Luminaire MCB 16B: 139 Number Of Luminaire MCB 20C: 173 Optic Name: SM - Silver matt reflector UGR (70/50/20 & 4H-8H crosswise): 18 Optic main category: Reflector Body material: Aluminium Main Body material Production Method: Die-casted Body Colour: WH - White Main Body Colour Name: White Decor material: ABS plastic Height (mm): 78 Diameter (mm): 168 Cut out (mm): 155 Item Net Weight (kg): 0.77 Cut out diameter: 155 Termination: 3x2x2.5mm2 Push In Plug Type: Linect Repairable/Changeable Parts: LED module,Internal driver,Optic,Sensor Packaging material: Cardboard Product Mounting: Ceiling recessed Item Gross Weight (kg): 0.84
Cross References
- EAN 4741145497664
- SAP 1200790586
- Code 83957580
Product Documentation
Document preview: D70-R155 G2 1400 HF 830 LI SM/WH (D70549766) — Specification sheet
