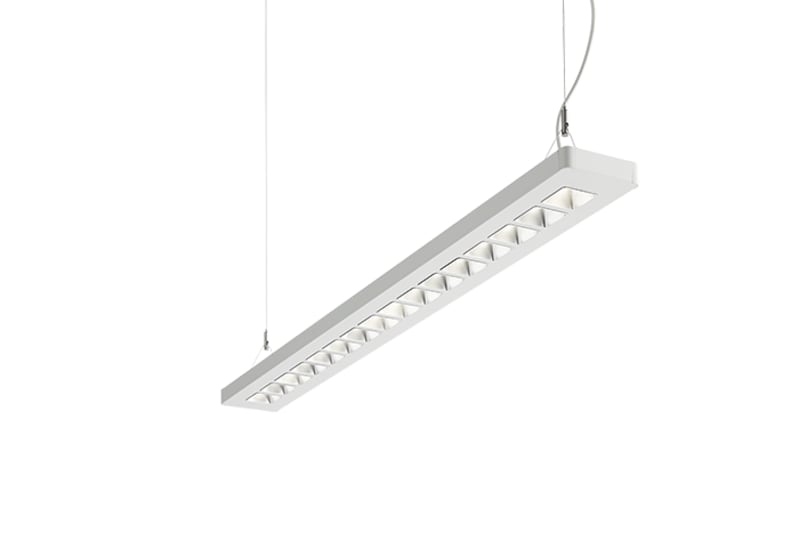

C77-P125X1200 WH 30/70 4000 DALI 830

Glamox C77099268 C77 is a series slim luminaires with rounded corners and et commercial appearance.

Manufacturer part number (MPN)

C77099268 EAN / GTIN: 7054130992684 Sales unit: pcs Product shape: Rectangular EPD (Environmental Product Declaration): Yes Certification: ENEC DALI 2 certified: Yes Number of DALI addresses: 1 minimum TA (ºC): -25 Maximum TA (ºC): 40 IK classification: 02 IP classification: 20 Light source: LED Lumen Out (lm): 4.208 Lumen Per Watt (lm/W): 126 Lamp colour temp (K): 3000 Colour Rendering Index: >80 Light Distribution Up %: 30 Light Distribution Down %: 70 MacAdam step: 3 Energy Class Light Source: D minimum Dim Level (%): 1 Type of LED Driver: DALI: Dimming Number of Driver: 1 LED Lifetime L80B50 Ta25 (h): 100000 Driver lifetime at Ta=25, 10% failure rate (h): 100.000 Driver lifetime at Ta=45, 10% failure rate (h): 50.000 Luminous flux decline (LLMF) 50.000h Ta25: 0.96 Main Feed AC (V) Min: 220 Main Feed AC (V) Max: 240 Main Feed Frequency Min: 50 Main Feed Frequency Max: 60 Total Consumption (W): 33.38 Number Of Luminaire MCB 10B: 12 Number Of Luminaire MCB 10C: 21 Number Of Luminaire MCB 16C: 35 Optic Name: SM - Silver matt reflector UGR (70/50/20 & 4H-8H crosswise): 16 Optic main category: Reflector Body material: Steel Body Colour: WH - White Main Body Colour Name: Traffic white Main Body Colour RAL code: RAL 9016 Length (mm): 1.179 Width (mm): 125 Height (mm): 32 Item Net Weight (kg): 2.74 Termination: 5x2x2.5mm2 Push In Cable Cross section (mm²): 0.75 Cable End / Plug Name: Open End Cable Length (m): 2.50 Cable material: PVC No of Leads: 5 Cable diameter variation max (mm): 8 Cradle To Gate A1-A3 (Kg C02-eq): 46.96 Total Recyclable material %: 59.89 Actual Recycled material - EN15804 %: 33.22 Repairable/Changeable Parts: LED module,Internal driver,Optic,Sensor Packaging material: Recycled cardboard Product Mounting: Pendant Item Gross Weight (kg): 2.98

HS Code

9405.11

• EAN 7054130992684
• SAP 1200713196
• Code 83835952
