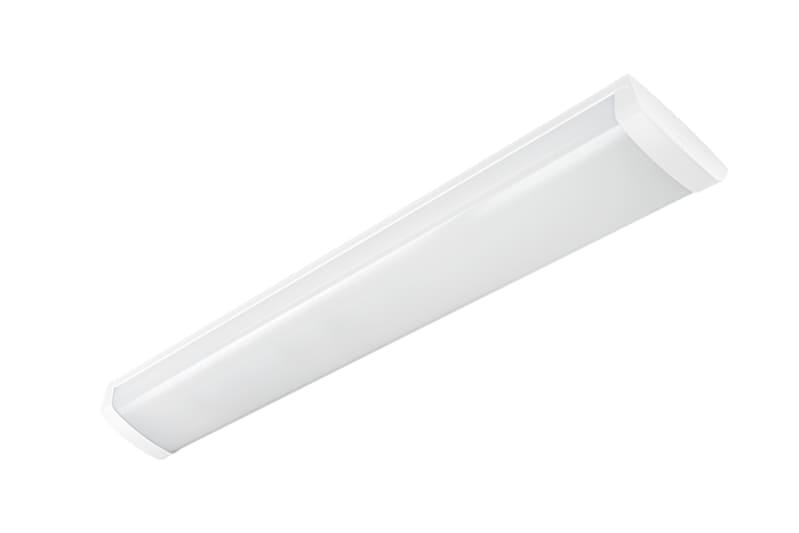

Glamox I60-1500 6000 lm DALI LED Luminaire 840 with Zigbee EasyAir Sensor IP44

Glamox I60097051 is a splash-protected linear LED luminaire from the I60-1500 series delivering 6655 lm at 4000 K (CRI >80) with an efficacy of 142 lm/W and 50 W total system consumption. It is fitted with a wireless Zigbee driver and an integrated PIR-plus-daylight (CLS) EasyAir sensor for occupancy and constant-light control, and carries an IP44 / IK07 rating for industrial and interior use. Rated life is >100,000 h at L80B50 (Ta25) and the luminaire operates from 220-240 V AC or 186-250 V DC. Typical installations are warehouses, workshops, corridors and technical rooms.

Manufacturer part number (MPN)

I60097051 EAN / GTIN: 7054130970514 HS code: 8543.70 Sales unit: pcs Product shape: Linear EPD (Environmental Product Declaration): Yes User Control: App Type of User Interface: Screen User Control Short Text: App based control LMS Wireless solution: ZigBee LMS Protocol: Wireless Leakage Current (mA): 0.50 Main Feed AC (V) Min: 220 Main Feed AC (V) Max: 240 Main Feed Frequency Min: 50 Main Feed Frequency Max: 60 Main Feed DC (V) Min: 186 Main Feed DC (V) Max: 250 Total Consumption (W): 50 Number Of Luminaire MCB 10B: 15 Number Of Luminaire MCB 10C: 24 Number Of Luminaire MCB 16C: 38 minimum TA (ºC): -25 Maximum TA (ºC): 45 IK classification: 07 IP classification: 44 Light source: LED Lumen Out (lm): 6.655 Lumen Per Watt (lm/W): 142 Lamp colour temp (K): 4000 Colour Rendering Index: >80 Light Distribution Up %: 5 Light Distribution Down %: 95 MacAdam step: 3 Energy Class Light Source: C Type of LED Driver: WZ: Wireless Zigbee Number of Driver: 1 LED Lifetime L80B50 Ta25 (h): >100000 LED Lifetime L80B50 Max Ta (h): 100000 Driver lifetime at Ta=25, 10% failure rate (h): 100.000 Driver lifetime at Ta=45, 10% failure rate (h): 50.000 Luminous flux decline (LLMF) 50.000h Ta25: 0.90 Sensor Type: PIR+Daylight harvesting (CLS) Pre-set functionality daylight sensor: CLS Light Sensor Max Lux: 999 Light Sensor Min Lux: 0 Sensor Cover Cross (°): 62 Sensor Cover Length (°): 84 Sensor Cover Cross Presence: 45 Pre-set functionality presence sensor: PROG Max mounting height: 3 Max Hold Time: Programmable Min Hold Time: 5 sec Optic Name: OP - Opal diffuser in acrylic UGR (70/50/20 & 4H-8H crosswise): 24 Diffuser material: Polycarbonate Diffuser material Design: Opal Optic main category: Diffuser Body material: Steel Treatment housing: Galvanised Body Colour: WH - White Main Body Colour Name: White Length (mm): 1.502 Width (mm): 165 Height (mm): 57 CC max: 1.360 Item Net Weight (kg): 3.70 Termination: 5x2x2.5mm2 Push In Through Wiring: 5x2.5 Cradle To Gate A1-A3 (Kg C02-eq): 53.26 Total Recyclable material %: 53.27 Actual Recycled material - EN15804 %: 24.96 Repairable/Changeable Parts: Internal driver,Optic,Sensor,End caps Packaging material: Cardboard,Recycled cardboard Product Mounting: Ceiling surface,Wall surface Item Gross Weight (kg): 4.02

HS Code

8543.70

• EAN 7054130970514
• SAP 1200713194
• Code 83819179
