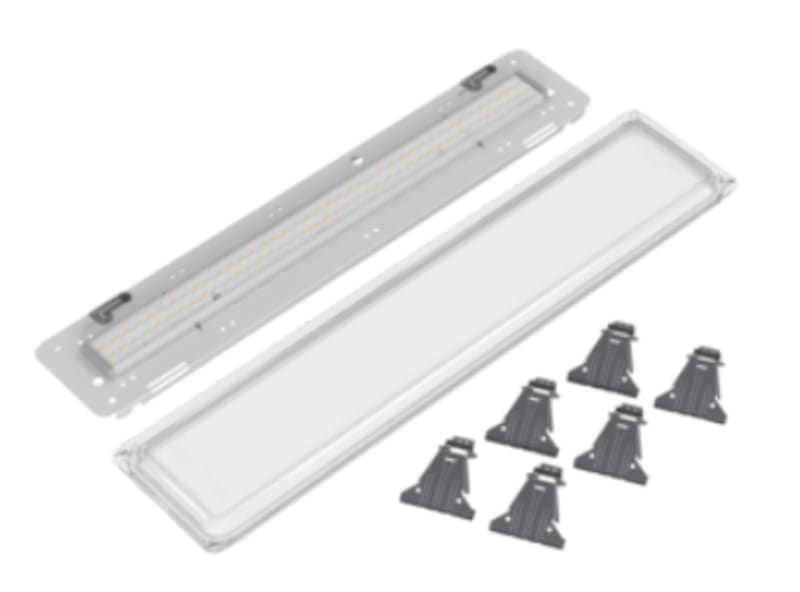

MAX KIT-600 G2 2500HF 840 FR/PC 220-254V

Kit for to oppgradere MAX T8 18W for energieffektiv LED-solution. MAX KIT-600 G2 2500 HF 840 FR/PC 220-254V IP66/67.

Manufacturer part number (MPN)

MAX102868 EAN / GTIN: 7054131028689 Sales unit: pcs Product shape: Linear EMC Category: EMC1 : EMC B – IEC 60533 Bridge and Open deck Leakage current (mA): 0.45 Voltage from (V): 220 Maximum voltage (V): 254 minimum frequency (Hz): 50 Maximum frequency (Hz): 60 Main Feed DC (V) Min: 220 Main Feed DC (V) Max: 250 Total consumption (W): 21 Total power consumption start (A): 22 Number of luminaires on a 10A MCB type B: 15 Number of luminaires on a 10A MCB type C: 25 Number of luminaires on a 16A MCB type B: 24 Number of luminaires on a 16A MCB type C: 40 Certification: ATEX,IECEx Marine approved: Yes Ignition Class: T4135° Atex start code: II 2GD Class Ex Gas: Ex eb mb IIC Gb Class Ex Dust: Ex tb IIIC Db Max surface temp Dust: 81 EX zone: Ex zone 1,Ex zone 2,Ex zone 21,Ex zone 22 minimum ambient temperature (ºC): -40 Maximum ambient temperature (°C): 55 IP classification: 66/67 Light source: LED Lumen out (lm): 2.803 Number of lamps: 1 Lumen per Watt (lm/W): 133 Lamp colour temp (K): 4000 CRI Colour rendering index: >80 Light distribution up %: 1 Light distribution down %: 99 MacAdam step: 3 Energy class light source: D Light source included: Yes Type of LED Driver: HF: Non dimmable Number of Driver: 1 L70 Median useful life LED MaxTa (hr): 100000 Luminous flux decline (LLMF) 50.000h Ta25: 0.90 Optic: FR/PC - Frosted diffuser in polycarbonate material of diffuser: Polycarbonate Optic main category: Diffuser Main body material: Aluminium/ zinc-treated steel Body colour: WH - White Main body colour name: White Length (mm): 645 Net weight (kg): 2.48 Item gross weight (kg): 2.70

• EAN 7054131028689
• SAP 1200739145
• Code 83932796
