RLXD 160WAC1 MB40 2ADAABK

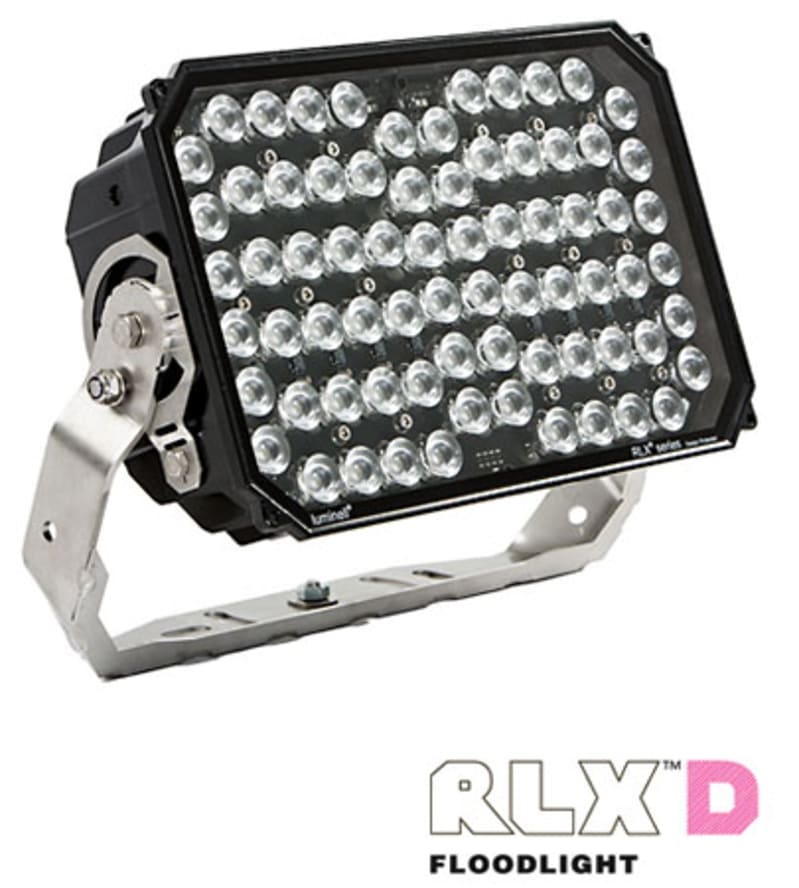

Glamox LN100006 RLX D Floodlight 160W 230VAC Medium beam 40.

Manufacturer part number (MPN)

LN100006 EAN / GTIN: 7072720000908 HS code: 8543.70 Sales unit: pcs EPD (Environmental Product Declaration): Yes EMC Category: EMC1 : EMC B – IEC 60533 Bridge and Open deck minimum Voltage -10% (VAC): 100 Maximum voltage +10% (VAC): 277 minimum frequency -5% (Hz): 50 Maximum frequency +5% (Hz): 60 Main Feed DC (V) Min: 130 Main Feed DC (V) Max: 300 Total consumption (W): 160 Inrush current (A): 65 Inrush Current Remarks: Inrush current (50% I-peak @ 230VAC) ~65A (445 µs) Number of luminaires on a 10A MCB type B: 9 Number of luminaires on a 10A MCB type C: 11 Number of luminaires on a 16A MCB type B: 14 Number of luminaires on a 16A MCB type C: 16 Power factor: 0.90 Certification: 5 year warranty,DNV,UL,UL1598/1598A Marine Listed Marine Approved: Yes minimum ambient temperature (ºC): -40 Maximum ambient temperature (°C): 55 IP classification: 66/67 Corrosion class: C5-M Light source: LED Lumen out (lm): 18.642 Number of lamps: 1 Lumen per Watt (lm/W): 117 Lamp colour temp (K): 5000 CRI Colour rendering index: >70 MacAdam step: 3 Light source included: Yes Dimmable: No Beam angle (°): 40 Optic: MB40 - Medium Beam 40° material of diffuser: Glass Diffuser material design: Clear Type of LED Driver: HF: Non dimmable Number of Driver: 1 L70 Median useful life LED Ta45 (hr): 100000 Main body material: Seawater-resistant aluminium Surface treatment: Anodized Body colour: BL - Black Main body colour name: Graphite black Main body colour surface: Powder coated Main body colour RAL code: RAL 9011 Mounting bracket material: Stainless steel AISI 316 Length (mm): 449 Width (mm): 171 Height (mm): 329 Net weight (kg): 10.50 Termination: 3x2x2.5mm2 Push In Maximum core diameter: 2.5 mm2 minimum core diameter: 0.5 mm2 Type of through wiring: 3x2.5 Cable gland: M20-Nickel plated brass Number of cable glands: 1 Blind plugs: M20-Nickel plated brass Number of blind plugs: 1 Max cable diameter (mm): 13 Min cable diameter (mm): 7 Cradle To Gate A1-A3 (Kg C02-eq): 343.16 Total Recyclable material %: 66.56 Actual Recycled material - EN15804 %: 15.91 Item gross weight (kg): 11.41

HS Code

8543.70

• EAN 7072720000908
• SAP 1200575747
• Code 82939766
