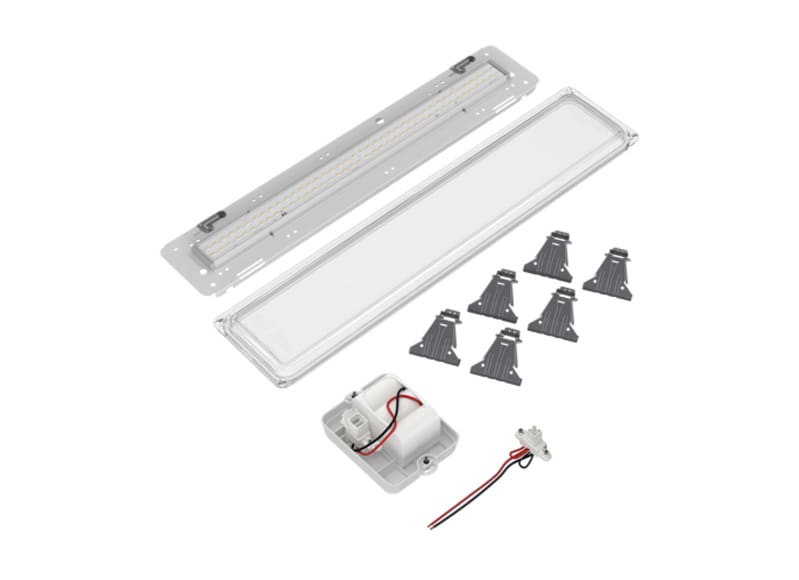

MAX KIT-600 G2 2500 HF EB3/S 840 w/Batt

Glamox MAX106005 MAX KIT-600 G2 2500 HF EB3/S 840 FR/PC 220-254V IP66/67 Incl. Battery.

Manufacturer part number (MPN)

MAX106005 EAN / GTIN: 7054131060054 Sales unit: pcs Product shape: Linear Remarks: The battery is charging down to 0°C, discharging down to -20°C. Including gear tray, battery, diffuser, diffuser clips, in addition to a new quick connector with wires, screw and safety wire for changeout in the existing battery box. EMC Category: EMC1 : EMC B – IEC 60533 Bridge and Open deck Leakage current (mA): 0.45 minimum Voltage -10% (VAC): 220 Maximum voltage +10% (VAC): 254 minimum frequency -5% (Hz): 50 Maximum frequency +5% (Hz): 60 Main Feed DC (V) Min: 220 Main Feed DC (V) Max: 250 Total consumption (W): 23 Inrush current (A): 22 Number of luminaires on a 10A MCB type B: 15 Number of luminaires on a 10A MCB type C: 25 Number of luminaires on a 16A MCB type B: 24 Number of luminaires on a 16A MCB type C: 40 Certification: ATEX,IECEx Marine Approved: Yes Ignition Class: T4135° Atex code: II 2GD Class Ex Gas: Ex eb mb IIC Gb Class Ex Dust: Ex tb IIIC Db Max surface temp Dust: 81 EX zone: Ex zone 1,Ex zone 2,Ex zone 21,Ex zone 22 minimum ambient temperature (ºC): -20 Maximum ambient temperature (°C): 50 IP classification: 66/67 Light source: LED Lumen out (lm): 2.803 Number of lamps: 1 Lumen per Watt (lm/W): 122 Lamp colour temp (K): 4000 CRI Colour rendering index: >80 Light distribution up %: 1 Light distribution down %: 99 MacAdam step: 3 Energy class light source: D Light source included: Yes Type of LED Driver: HF: Non dimmable Number of Driver: 1 L70 Median useful life LED MaxTa (hr): 100000 Luminous flux decline (LLMF) 50000h Ta25: 0.90 Type of emergency: Standard battery backup Duration in battery mode (hrs): 3 Charging power consumption (Emg) (W): 1.50 Output in battery mode (%): 36 Battery Type: NiCd Battery form: Multi Battery Box Battery mAh: 4.000 Battery Voltage (V): 7.20 Battery sparepart no: PM220105801 Optic: FR/PC - Frosted diffuser in polycarbonate material of diffuser: Polycarbonate Optic main category: Diffuser Main body material: Aluminium/ zinc-treated steel Body colour: WH - White Main body colour name: White Length (mm): 645 Net weight (kg): 3.79 Item gross weight (kg): 4.12

• EAN 7054131060054
• SAP 1200794763
• Code 83965366
