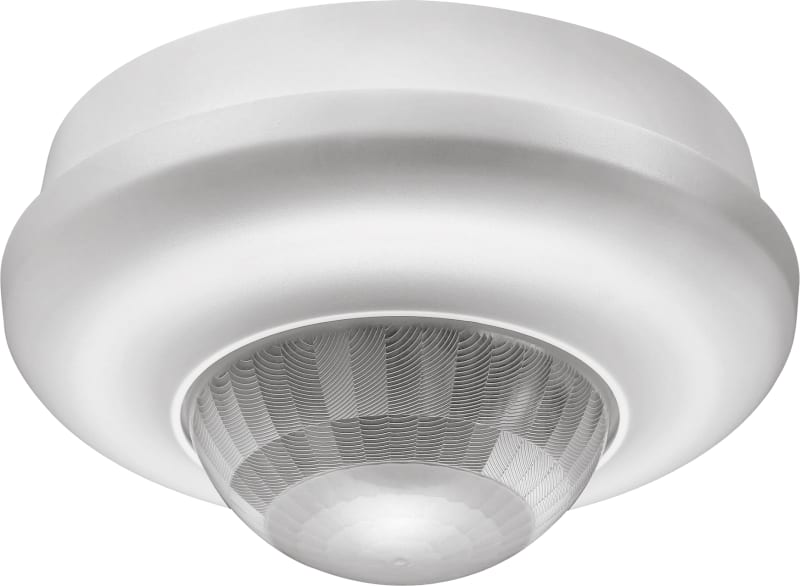

Function KNX Presence Detector PIR 360° Surface Ceiling
Pricing
Request a quote
We reply within 24 hours
Product Description
Function SE41731 is a KNX 360° PIR presence detector with an integrated bus coupler for surface-mounted ceiling installation. Optimum mounting height is 2.5 m with a floor coverage diameter of 24 m across eight independent channels providing switching, dimming and constant-light control. Features include a self-learning switch-off delay, adjustable luminosity threshold and staircase-light function.
Technical Specifications
- Manufacturer part number (MPN)
- SE41731
- EAN / GTIN
- 5703102208378
- Sales unit
- pcs
- Package quantity
- 44 pcs
- Bus system KNX
- Yes
- Bus system KNX-RF (Radio Frequency)
- No
- Bus system radio frequency
- No
- Bus system LON
- No
- Bus system Powernet
- No
- Other bus systems
- None
- Radio frequency bidirectional
- No
- Model
- Movement sensor
- Mounting method
- Surface mounted
- Material quality
- Thermoplastic
- Surface finishing
- Matt
- Transparent
- No
- With bus connection
- Yes
- Substation input
- No
- Creep-under protection
- No
- Operation mode switch
- No
- Animal zone
- Yes
- Staircase light controller
- Yes
- Response value luminosity adjustable
- Yes
- Teach-function for response value luminosity
- Yes
- Switch-off delay self-learning
- Yes
- Optimum mounting height
- 2.5 m
- Diameter reach on floor
- 24 m
- Detection angle vertical
- 360 °
- Detection angle horizontal
- 360 °
- Number of channels
- 8
- Min. switch-on time
- 1 s
- Max. duty cycle
- 255 min
- Country of origin
- Denmark
Standards & Compliance
- HS Code
- 8536.20
Cross References
- EAN 5703102208378
- SAP 1000602321
- Code 8719049
Product Documentation
