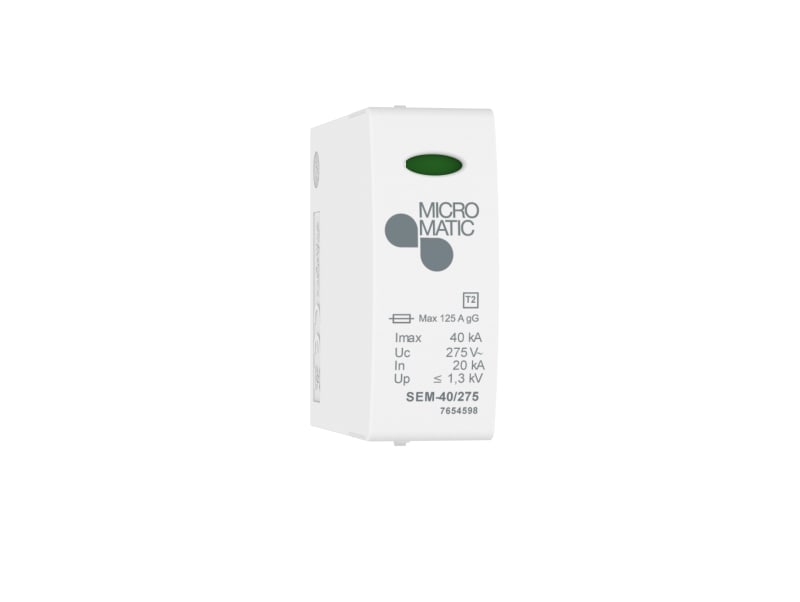

Surge-plug SEM-40/275 (1661484)
Pricing
Request a quote
We reply within 24 hours
Product Description
Function 1661484 Surge protection device SEM-40/275.
Technical Specifications
- Manufacturer part number (MPN)
- 1661484 Sales unit: pcs El-nummer (NO): 1661484 ETIM class: SC000941 System configuration DC: No System configuration IT: No System configuration TN: Yes System configuration TN-C: Yes System configuration TT: Yes Number of conductors (without earthing): 1 Nominal discharge surge current (8/20): 20 kA Max. discharge surge current (8/20): 40 kA Nominal voltage AC: 400 V Max. continuous voltage AC: 550 V Voltage protection level L-N: 1.3 kV Short-circuit breaking capacity (Isccr): 25 kA Integrated backup fuse: No Mounting method: DIN rail (top hat rail) 35 mm Construction size: 1 modular spacing Max. conductor cross section solid (solid, stranded): 25 mm² Max. conductor cross section flexible (fine-strand): 25 mm² With remote signalling contact: No Signalling at the device: Optical Category type 2: Yes Degree of protection (IP): IP20 Country of origin: Spain
Standards & Compliance
- HS Code
- 8536.30
Cross References
- 7070587117876
- El-nr 1661484
Product Documentation
More from Function
Function
Function RGU-10 Earth Leakage Relay — Type A, 30 mA–30 A, 0.02–10 s, Programmable
Function
Function NI1055 TR40 Automatic Snow-Melt Control for Gutters IP55
Function
Function WRU-10 Earth Leakage Relay with Built-In Toroid — Type A, Ø28 mm Integral Toroid, Adjustable, Self-Reclosing
1661579
Function
OPP.TR.UR O-6 TIM. (GI32730)
Function
Function P42MR 230 V Ceiling Presence Detector 360° 12-13 m Master
353-602121
Function
Meteromkobler 3X230V (SE-MK-2T, 3X230V)
Function
Tilst.-sensor P47LR DALI-2 M 32-37M SF
353-751321
Function
UR MM7596 Astro UKE 2K NFC
LA1053NFC
Catalogue entry last verified: 2026-09-29. A manufacturer datasheet is attached to this entry — confirm application-critical values against it.
Frequently asked questions
- Where can I buy 1661484?
- 1661484 can be ordered from cballast.com as a Function catalogue item: request a quotation on this page or email sales@cballast.com, and the order ships worldwide.
- What is the manufacturer part number for this Function product?
- The manufacturer part number is 1661484.
- What is the HS code for 1661484?
- The customs tariff (HS) code for 1661484 is 8536.30.
- Who manufactures 1661484?
- 1661484 is a Function product in the Switchgear & Protection range.
- Is a datasheet available for 1661484?
- Yes — the 1661484 datasheet can be viewed and downloaded on this page.
- What is the minimum order quantity for 1661484?
- The minimum order quantity is 1.
- Is 1661484 available?
- Yes — 1661484 is available to order: fulfilment is from supplier stock in cBallast's European network, dispatched directly from the warehouse to the customer, with the exact lead time stated in the quotation (reply within 24 hours).
