Function

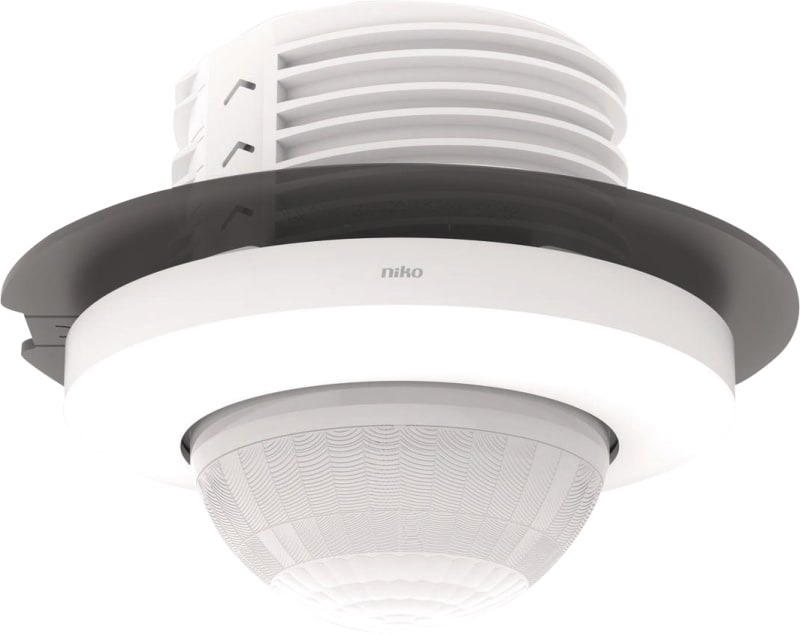

Tilst.-sensor P47LR DALI-2 M 32-37M SF

Name: Tilst.-sensor P47LR DALI-2 M 32-37M SF
Brand: Function
SKU: 353-751321

Part number353-751321EAN / GTIN5413736374171HS code8536.90

Lighting & Electrical Accessories

Motion Sensors

MOQ:1

Pricing

Request a quote

We reply within 24 hours

Request Quote

Email Datasheet

Product Description

Function 353-751321 Tilst.-sensor P47LR, DALI-2, master, 32-37m, for recessed mounting with SnapFit.

Technical Specifications

Manufacturer part number (MPN): 353-751321
EAN / GTIN: 5413736374171
HS code: 8536.90
Sales unit: pcs
Package quantity: 27 pcs
Nominal voltage: 230 V
Mounting method: Flush-mounted
Colour: White
Width: 100 mm
Model: Presence detector
Halogen free: Yes
Height: 99 mm
Depth: 99 mm
Connection type: Push-in clamp
Surface protection: Untreated
Creep-under protection: Yes
Voltage type: AC
Switch-off delay: 7200 s
Built-in depth: 57 mm
Frequency: 50 Hz
With remote control: No
Diameter: 100 mm
Built-in width: 70 mm
Built-in diameter: 70 mm
Staircase light controller: No
Bridging switch: No
Suitable for wireless transmission: Yes
Material quality: Thermoplastic
Max. reach frontally: 10 m
Max. reach sideways: 37 m
Max. switching power: 2300 W
Temperature: -25–40 °C
Max. starting current: 800 A
Material: Plastic
Response value sensitivity adjustable: Yes
Dim function with dimmer basic element: Yes
Response value luminosity: 20–2000 lx
Suitable for C-load: Yes
Diameter reach on floor: 37 m
Remote operation: Yes
HVAC-control: No
Constant light control: Yes
Substation input: Yes
RAL-number (similar): 9010
With signal unit: No
Control current: 100 mA
Teach-function for response value luminosity: No
Networkable: No
Forced switch off: Yes
Scan angle: 360 °
Built-in length: 70 mm
Impact strength: IK04
Degree of protection (IP): IP20
With alarm function: No
Transparent: No
Animal zone: No
Surface finishing: Matt
Detection angle horizontal: 360 °
Min. switch-on time: 15 s
Max. duty cycle: 120 min
Suitable for wall mounting: No
Response value luminosity adjustable: Yes
Optimum mounting height: 3 m
Pivoting range sensor, horizontal: 360 °
Pivoting range sensor, vertical: 360 °
Number of switching zones: 5
With DALI interface: Yes
IFTTT support available: No
Forced switch on: No
Min. starting current: 0 A
Min. depth of built-in installation box: 60 mm
Max. presence range: 50 m²
Compatible with Apple HomeKit: No
Compatible with Google Assistant: No
Compatible with Amazon Alexa: No
Max. switching power LED: 350 W
Sensor type: Passive infrared
Suitable for ceiling mounting: Yes
Anti-bacterial treatment: No
Country of origin: Thailand

Standards & Compliance

HS Code: 8536.90

Cross References

EAN 5413736374171
SAP 1200624494
Code 83030504

Product Documentation

Tilst.-sensor P47LR DALI-2 M 32-37M SF (353-751321) — Specification sheet Download

Document preview: Tilst.-sensor P47LR DALI-2 M 32-37M SF (353-751321) — Specification sheet
