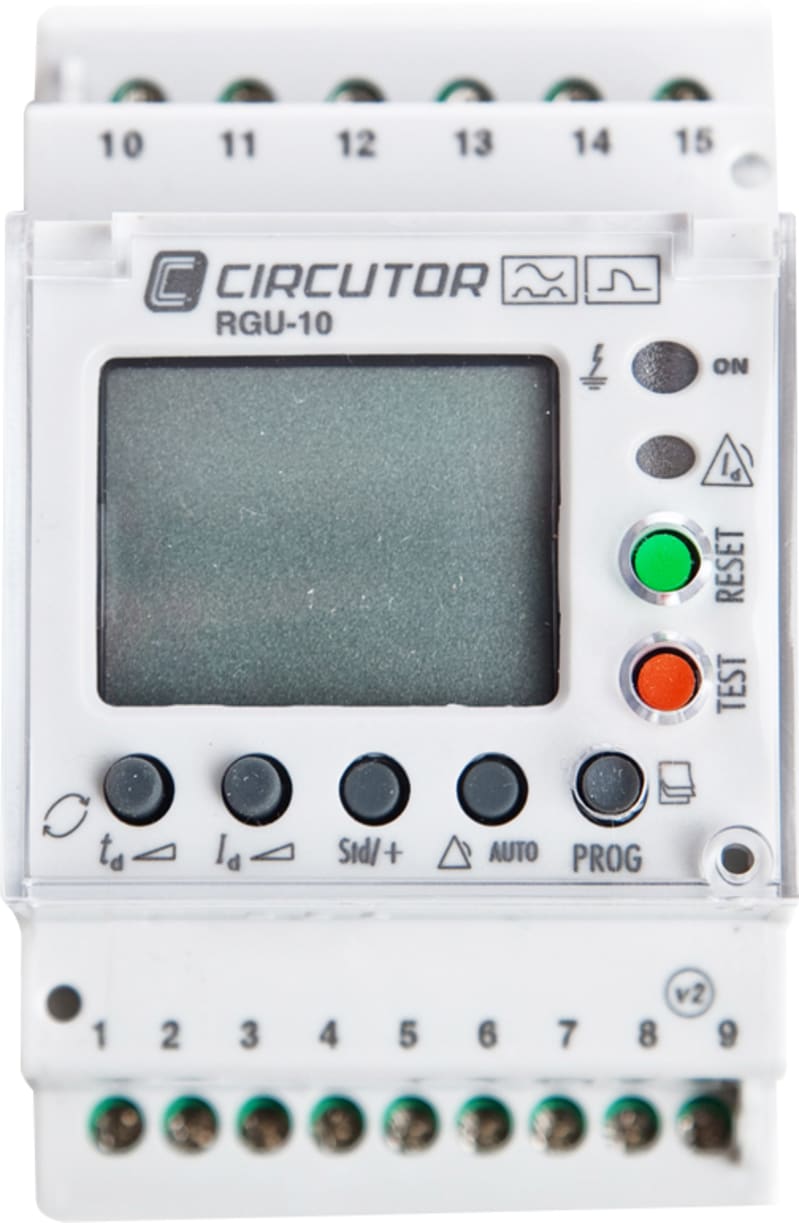

Function RGU-10 Earth Leakage Relay — Type A, 30 mA–30 A, 0.02–10 s, Programmable

The RGU-10 is a programmable electronic earth leakage relay for use with an external toroidal transformer of the Circutor WG/WGC range, which is ordered separately and sized to the cable it encircles. An earth leakage relay does not break the circuit itself. It measures the residual current — the difference between the current flowing out to a load and the current returning from it, which is only non-zero when some of it is escaping to earth — and signals a separate switching device to open. That split is what allows it to protect circuits far larger than any self-contained RCD can handle, and to be set for sensitivity and time delay independently of the breaker it drives. Sensitivity is adjustable from 30 mA to 30 A and the trip delay from 0.02 to 10 seconds, which together let the device be set for genuine selectivity against RCDs downstream of it. It provides two independently programmable outputs — a main trip and a pre-alarm — and an external 230 V AC input for remote reset and remote test. It occupies three DIN modules, runs from 230 V AC, is fully programmable and suits all neutral earthing arrangements: TT, TN and IT. It is a type A device: it responds to sinusoidal AC residual currents and to pulsating DC residual currents. Circutor specify it as superimmunised, with high-frequency filtering and true RMS (TRMS) measurement, so that the harmonic leakage normal in an installation full of switch-mode loads does not read as a fault. Manufactured by Circutor (Spain) and supplied under the Function brand; the Circutor catalogue reference is RGU-10. Supplied by cBallast on quote-to-invoice terms; lead time and freight are quoted per RFQ against the destination Incoterm.

Manufacturer part number (MPN)

RGU-10

EAN / GTIN

7070587114301

Sales unit

pcs

Type of electric connection

Screw connection

Rated control supply voltage AC 50 Hz

230 V

Rated control supply voltage AC 60 Hz

230 V

Voltage type for actuating

AC

With detachable clamps

No

Rated frequency

50–60 Hz

Indication of insulation value

Yes

Error registration possible

No

Number of contacts as normally closed contact

2

Number of contacts as normally open contact

2

Number of contacts as change-over contact

2

Width

60 mm

Height

95 mm

Depth

95 mm

Country of origin

Spain

Device type

Earth leakage relay for external toroidal transformer

Residual current type

Type A, superimmunised, TRMS measurement

Sensitivity range (IΔn)

30 mA – 30 A, adjustable

Tripping delay

0.02 – 10 s, adjustable

Toroidal transformer series

Circutor WG / WGC range (external, ordered separately)

Outputs

2 independently programmable (main trip and pre-alarm)

Remote input

External 230 V AC input for remote reset / test

Neutral earthing arrangements

TT, TN and IT

Programmable

Yes, fully programmable

Mounting

DIN rail, 3 modules

Manufacturer

Circutor, Spain

Manufacturer model

RGU-10

HS Code

8536.20
