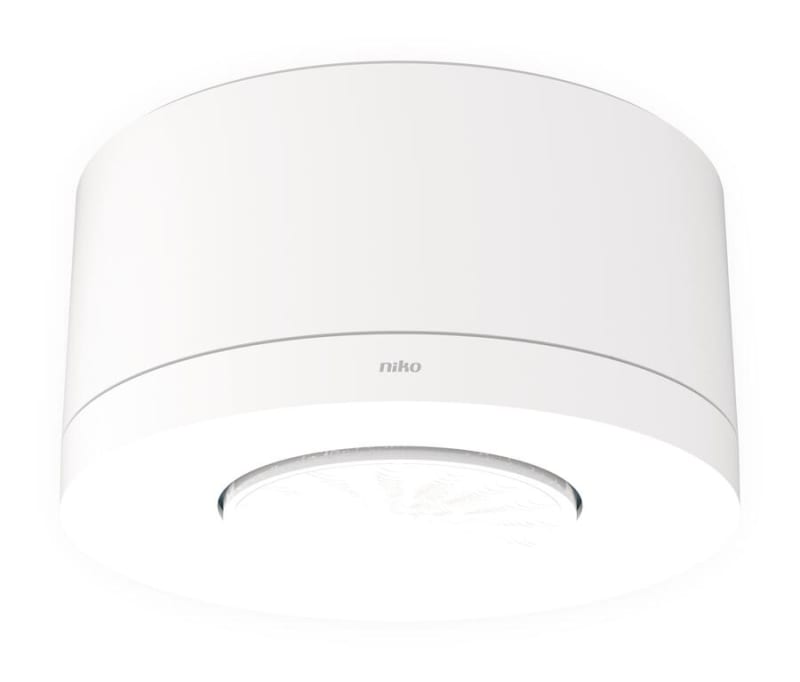

Function P42MR 230 V Ceiling Presence Detector 360° 12-13 m Master
Pricing
Request a quote
We reply within 24 hours
Product Description
Function 353-602121 is a P42MR master presence detector for 230 V AC surface ceiling mounting, with a 360° horizontal scan and a lateral range of 12 to 13 m at a 3 m mounting height. It switches loads up to 2300 W, offers adjustable luminosity response between 20 and 2000 lx and an adjustable switch-off delay up to 7200 s, with staircase-light and remote-control functions. The IP54 white thermoplastic housing includes push-in terminals and creep-under protection. Typical use is lighting control in corridors, open-plan offices, staircases and warehouses.
Technical Specifications
- Manufacturer part number (MPN)
- 353-602121
- EAN / GTIN
- 5413736374324
- HS code
- 8536.90
- Sales unit
- pcs
- Package quantity
- 36 pcs
- Voltage
- 230 V
- Nominal voltage
- 230 V
- Mounting method
- Surface mounted
- Colour
- White
- Width
- 100 mm
- Model
- Presence detector
- Halogen free
- Yes
- Height
- 50 mm
- Depth
- 50 mm
- RAL-number
- 9010
- Connection type
- Push-in clamp
- Surface protection
- Untreated
- Creep-under protection
- Yes
- Voltage type
- AC
- Switch-off delay
- 7200 s
- Frequency
- 50 Hz
- With remote control
- No
- Diameter
- 100 mm
- Staircase light controller
- Yes
- Bridging switch
- No
- Suitable for wireless transmission
- Yes
- Material quality
- Thermoplastic
- Max. reach frontally
- 3 m
- Max. reach sideways
- 13 m
- Max. switching power
- 2300 W
- Temperature
- 25–40 °C
- Max. starting current
- 800 A
- Material
- Plastic
- Response value sensitivity adjustable
- Yes
- Dim function with dimmer basic element
- No
- Response value luminosity
- 20–2000 lx
- Suitable for C-load
- Yes
- Diameter reach on floor
- 13 m
- Remote operation
- Yes
- HVAC-control
- No
- Constant light control
- No
- Substation input
- Yes
- With signal unit
- No
- Teach-function for response value luminosity
- No
- Networkable
- No
- Forced switch off
- Yes
- Scan angle
- 360 °
- Impact strength
- IK02
- Degree of protection (IP)
- IP54
- With alarm function
- No
- Transparent
- No
- Animal zone
- No
- Surface finishing
- Matt
- Detection angle horizontal
- 360 °
- Suitable for wall mounting
- No
- Response value luminosity adjustable
- Yes
- Optimum mounting height
- 3 m
- Pivoting range sensor, horizontal
- 360 °
- Pivoting range sensor, vertical
- 360 °
- Number of switching zones
- 1
- With DALI interface
- No
- IFTTT support available
- No
- Forced switch on
- No
- Max. presence range
- 20 m²
- Compatible with Apple HomeKit
- No
- Compatible with Google Assistant
- No
- Compatible with Amazon Alexa
- No
- Max. switching power LED
- 350 W
- Sensor type
- Passive infrared
- Suitable for ceiling mounting
- Yes
- Anti-bacterial treatment
- No
- Country of origin
- Thailand
