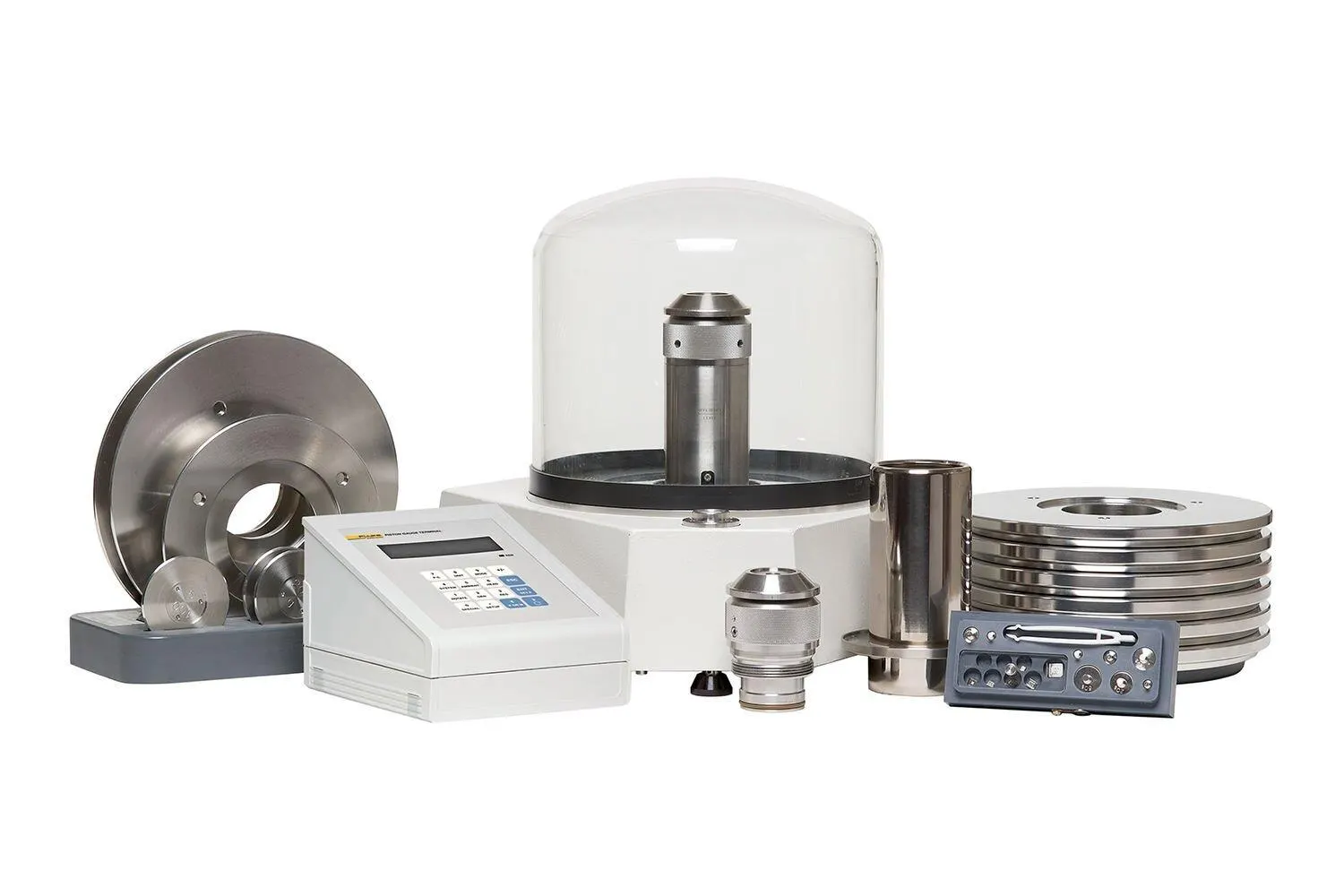

PG7601 Piston Gauge

The piston gauge from Fluke Calibration offers pressure calibration standards that provide automated operations and thermal transpiration correction.

Manufacturer part number (MPN)

3069028 Brand: Fluke Category: Tools Power requirements: 85 V ac to 264 V ac, 47 Hz to 440 Hz, 22 VA max consumption Normal operating temperature range: 18 °C to 28 °C (64 °F to 82 °F) Weight: Instrument platform with no mass loaded: 17 kg (37 lb) PG terminal 1.4 kg (3 lb) Dimensions: Instrument platform (HxWxD): 36 cm x 40 cm x 35 cm (14.5 in x 15.8 in x 13.8 in) Height: top of bell jar Communications ports: RS-232 COM1: Host computer COM2: AMH automated mass handler, external barometer COM3: Automated pressure controller IEEE-488.2: Host computer Maximum pressure ranges: Actual range depends on piston-cylinder and mass set selection. Operating media: Gas: air, helium, nitrogen CE conformance: Available, must be specified Mass set specifications: All masses are delivered in molded, reusable transit cases with custom inserts. Masses: material: 304L non-magnetic stainless steel Finish: Electropolished Adjustment tolerance: ± 20 ppm of nominal value Accuracy of measured values: ± 5 ppm or 1 mg, whichever is greater Traceability of measured values: National Institute of Standards and Technology (NIST) Temperature: Piston- Cylinder Temperature Range: 0 to 40 degrees C Resolution: 0.01 degrees C Accuracy: ± 0.1 degrees C Ambient Temperature Range: 0 to 40 degrees C Resolution: 0.1 degrees C Accuracy: ± 1 degrees C Barometric pressure with internal sensor: Range: 70 kPa to 110 kPa Resolution: 10 Pa Accuracy: ± 140 Pa Barometric pressure can also be read automatically from any RS-232 device such as DHI RPM4 Relative humidity: Range: 5 % to 95 % RH Resolution: 1 % RH Accuracy: ± 10 % RH Piston position: Range: ± 4.5 mm Resolution: 0.1 mm Piston rotation (rate and deceleration): Range: 2 to 150 rpm Resolution: 1 rpm Vacuum: Range: 0 to 20 Pa Resolution: 0.1 Pa Accuracy: ± 0.1 Pa or 10 % of reading, whichever is greater Pressure measurement uncertainty: Typical pressure measurement uncertainty All sources of uncertainty under typical operating conditions are identified, quantified and combined following ISO/TAG4/WG3. The result is rounded upwards to provide conservative global uncertainty figures for the typical user under typical conditions

• OEM-URL https://www.fluke.com/en-us/product/calibration-tools/pressure-calibration/piston-gauges/pg7601
