PG9602/9607 Piston Gauge

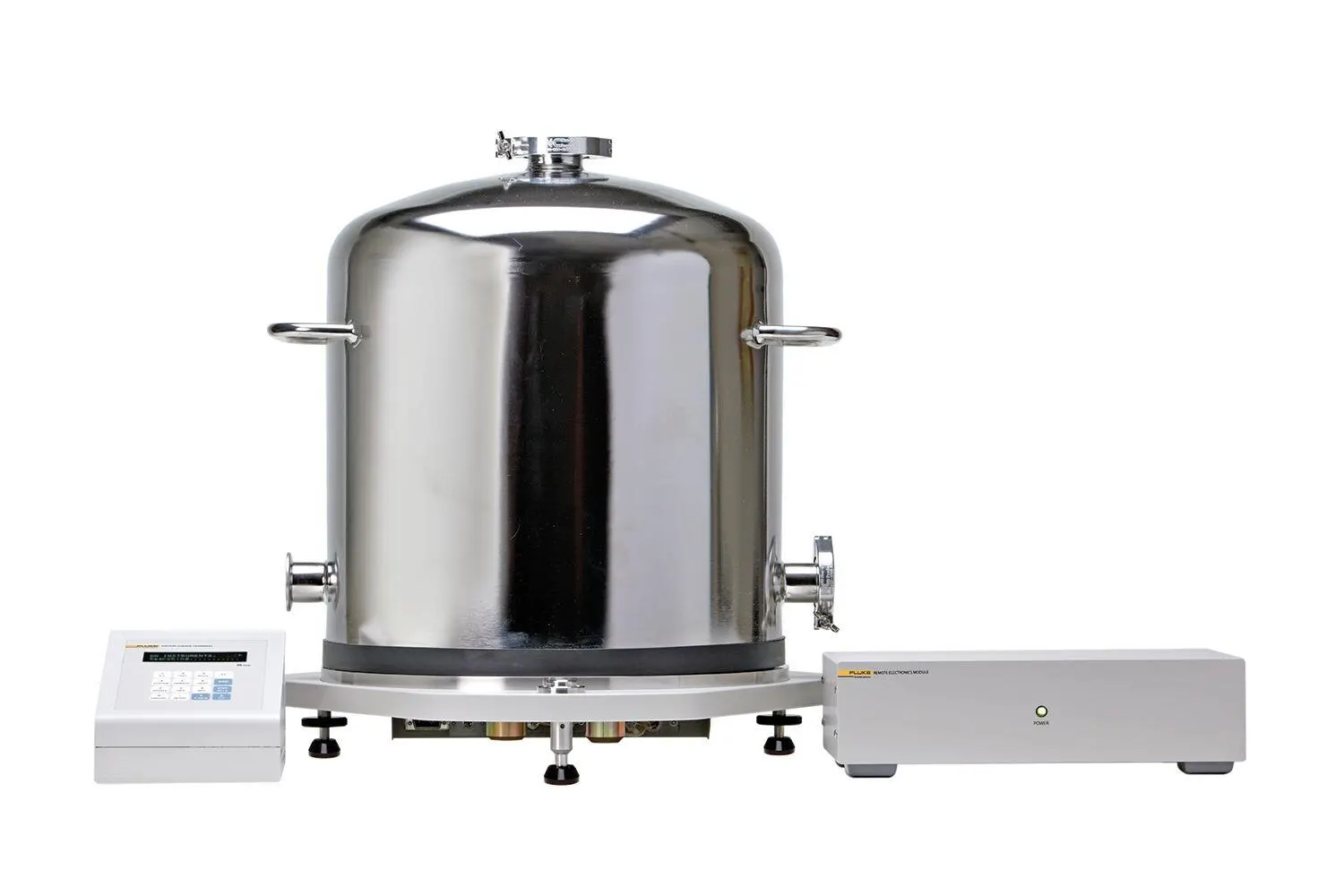

The PG9607 piston gauge from Fluke Calibration is the next generation of absolute pressure piston gauge. It supports the use of a 100 kg mass set to define gauge and absolute pressures from 11 to 500 kPa with a single piston-cylinder.

Manufacturer part number (MPN)

3821488 Brand: Fluke Category: Tools Electrical power: 85/264 V ac, 50/60 Hz, 22 VA maximum consumption Temperature: Operating: 15 °C to 35 °C (59 °F to 95 °F) Storage: -20 °C to 70 °C (-4 °F to 158 °F) Humidity: Operating: 5 % to 95 % RH, non-condensing Weight: Instrument platform with no mass or piston-cylinder loaded PG9602/9607 (without vacuum hardware): 34 kg (74 lb) Remote electronics module: 1.9 kg (4 lb) PG terminal: 1.4 kg (3 lb) Optional vacuum reference hardware: 16 kg (36 lb) Microprocessors: Instrument platform: Motorola 68302 PG terminal: Hitachi 64180 Communication ports: RS-232 COM 1: Host computer COM2: Residual vacuum sensor (external) COM3: Automated pressure controller COM4: Unused/spare IEEE-488 Host computer Overall pressure range: Gauge: 11 kPa to 500 kPa, 0.11 bar to 5 bar, (1.6 to 72.5 psi)1 Absolute: 11 kPa to 500 kPa, 0.11 bar to 5 bar, (1.6 to 72.5 psi)1 Operating media: Gas: nitrogen, helium, dry air (dewpoint ≤ -40 ºC) Maximum mass load: 100 kg1 Power requirements: 15 V dc @ 2 A, 30 W max. consumption Dimensions (H x W x D): 41 cm x 41 cm x 36 cm (16.3 in x 16.1 in x 14.1 in) Power/communications: Custom 8-pin connector AMH drive air supply: 550 kPa (80 psi), ± 10 %, minimal flow AMH vacuum supply: At least 50 kPa (7.5 pi) under atmosphere, minimal flow Piston material: Tungsten carbide Cylinder material: Tungsten carbide Nominal diameter: 50 mm (1.97 in) Nominal area: 2000 mm2 Mounting system: Free deformation with controlled clearance pressure (CCP) available on inside of piston. Typical drop rate (Full mass load): < 0.25 mm/min (0.009 in/min) at 500 kPa Sensitivity1: 0.005 Pa + 0.5 ppm Reproducibility2: ± 2 ppm + 0.05 Pa Temperature (Ambient): Range: 0 °C to 40 °C (32 °F to 104 °F) Resolution: 0.1 °C (32.18 °F) Measurement uncertainty: ± 1 °C (33.8 °F) Temperature (Piston-cylinder module): Range: 0 °C to 40 °C (32 °F to 104 °F) Resolution: 0.01 °C (32.02) Measurement uncertainty: ± 0.1 °C (32.18 °F) Barometric pressure with internal sensor: Range: 70 kPa to 110 kPa Resolution: 10 Pa Measurement uncertainty: ± 140 Pa Barometric pressure can also be read automatically with any RS-232 device such as a DHI RPM. Relative humidity: Range: 5 % to 95 % RH Resolution: 1 % RH Measurement uncertainty: ± 10 % RH Piston position: Range: ± 4.5 mm Resolution: 0.1 mm Piston rotation (Rate and deceleration): Range: 2 rpm to 99 rpm Resolution: 1 rpm Vacuum (optional): Range: 0 Pa to 13 Pa Resolution: 0.01 Pa Measurement uncertainty: ± 0.05 Pa + 0.5 % of reading
