Fluke

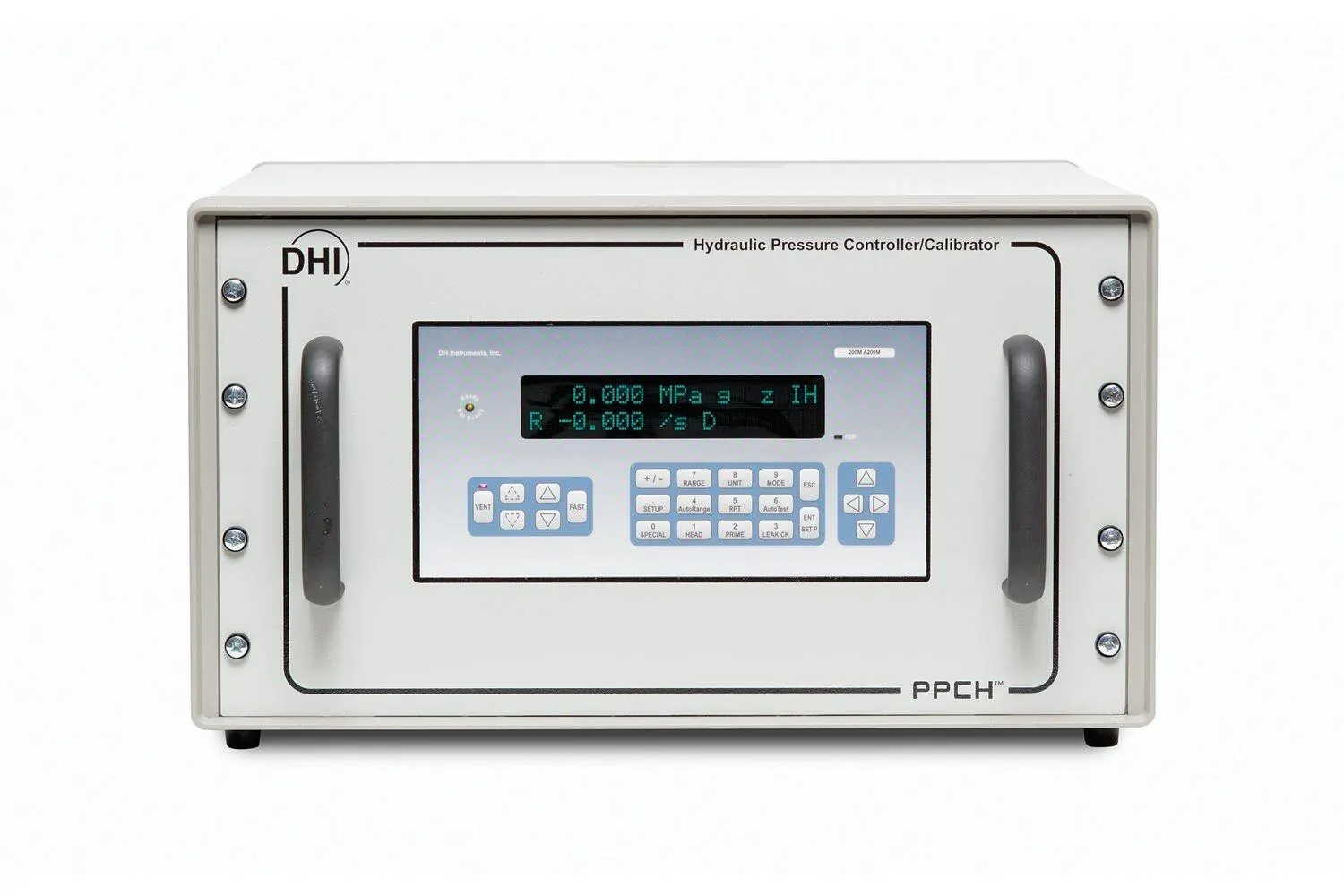

PPCH Automated Pressure Controller / Calibrator
Part number3072503HS code9031.80
Safety & Detection
Tools
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
Fluke Calibration offers PPCH™ Automated Pressure ontroller/Calibrator for Hydraulic Pressure Applications.
Technical Specifications
- Manufacturer part number (MPN)
- 3072503
- Brand
- Fluke
- Category
- Tools
- Power Requirements
- 85 to 264 VAC, 50/60 Hz, 75 W max
- Normal Operating Temperature Range
- 15 to 35 °C
- Vibration
- Meets MIL-T-28800D
- Weight (Typical)
- 50 kg approx (110 lb)
- Dimensions
- 30 cm H x 52 cm W x 50 cm D (12 in. x 20.5 in. x 20 in.) with enclosure 6U H rack mount version
- Communications Ports
- RS232 (COM1, COM2), IEEE-488.2
- Operating Modes
- Gauge, absolute
- Pressure Ranges
- Atmosphere to 200 MPa (30,000 psi)
- Operating Media
- Sebacate oil standard. Others optional (consult Fluke Calibration)
- Internal Reservoir Volume
- 250 cc (external unlimited)
- Drive Air Supply
- 70M - 500 kPa (75 psi), 300 l/m (10cfm) 140M - 500 kPa (75 psi), 450 l/m (15cfm) 100M - 700 kPa (100 psi), 300 l/m (10cfm) 200M - 700 kPa (100 psi), 450 l/m (15cfm)
- Pressure Connections
- DRIVE AIR SUPPLY 1/8 in. NPT F TEST DH500 (equivalent to AE F250C, HIP HF4)
- Utility Sensor
- Precision/Resolution ± 0.10 % span / 0.001 % span
- Drivers
- (8) 12V, 1 A max total output
- CE Conformance
- Available, must be specified
- Control Precision
- To ± 0.003 % of Q-RPT span
- Control Volume
- 0 to 100 cc, 50 cc optimum (operates in larger volumes but pressure stabilizing time increases)
- Control Speed
- 180 seconds into a 50 cc volume and 20 % FS excursions with default hold limits.
- Lowest Controllable Pressure
- 1 MPa (150 psi)(lower in optimum conditions and with PG7302)
- Warm Up Time
- 30 minute temperature stabilization recommended from cold power up
- Resolution
- To 1 ppm, user adjustable
- Calibration
- A2LA accredited calibration report included
- Q-RPTs Less than A200M
- A200M
- Precision1 ± 0.012 % of reading5
- ±0.015 % of reading5
- Measurement Uncertainty Delivered ± 0.013 % of reading5
- ± 0.018 % of reading5
- ± 0.016 % of reading5
- ± 0.020 % of reading5
Standards & Compliance
- HS Code
- 9031.80
Cross References
- OEM-URL https://www.fluke.com/en-us/product/calibration-tools/pressure-calibration/automated-pressure-controller-and-calibrators/ppch
Product Documentation
Document preview: PPCH | Operators manual
