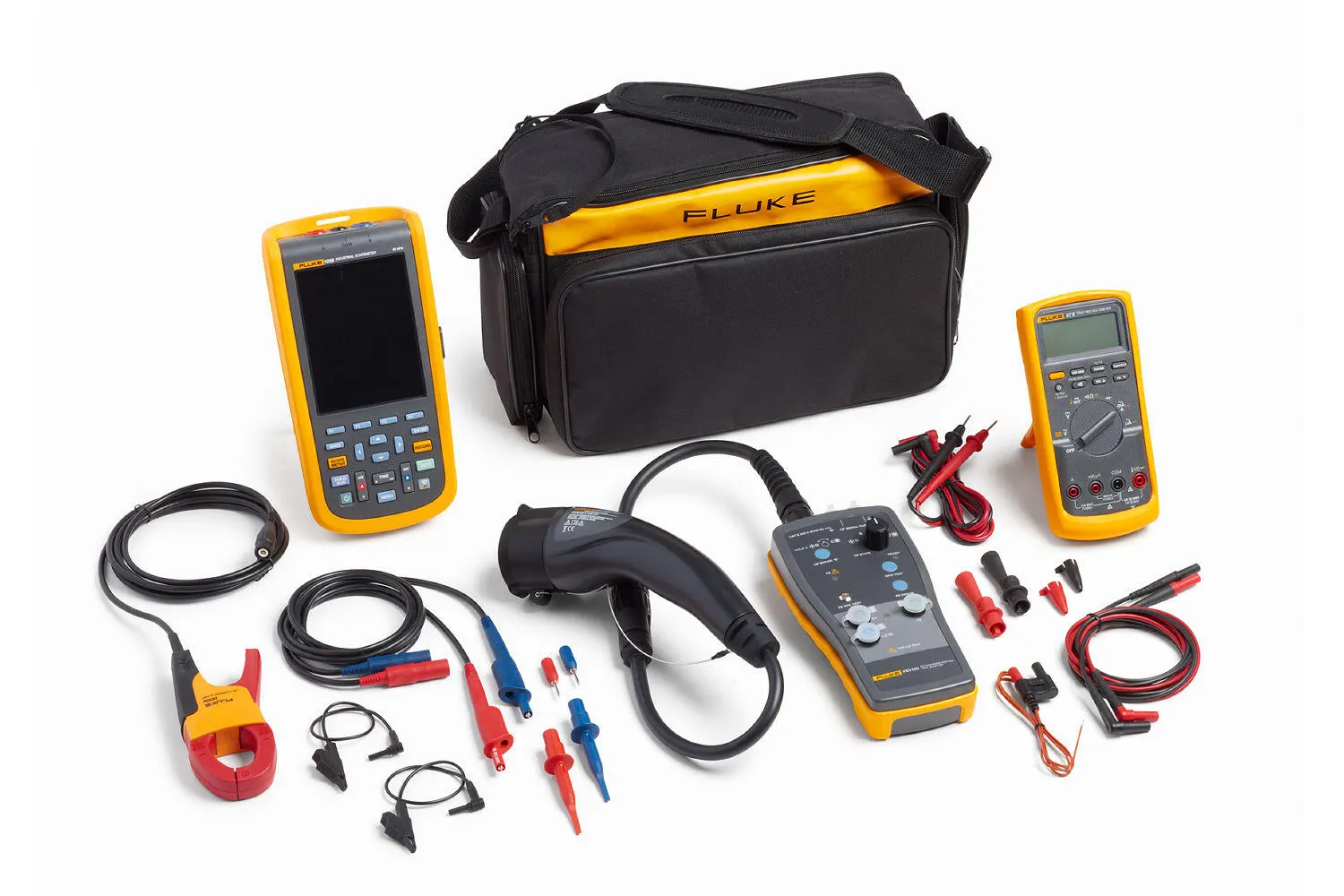

Fluke eMobility Tools Kit with FEV100 Test Adapter, 125B ScopeMeter®, 87V Multimeter and Test Leads

Ideal for EVSE installation technicians, the Fluke eMobility Tools Kit includes the FEV100 test adapter, a ScopeMeter®, multimeter and test leads.

Manufacturer part number (MPN)

5348161 Brand: Fluke Category: Tools Input voltage: UL1/N = 120 V, UL2/N = 120 V, UL1/L2 = 208 V, 60 Hz (three-phase system) or UL1/N = 120 V, UL2/N = 120 V, UL1/L2 = 240 V, 60 Hz (single-phase system), ±10% voltage fluctuations from nominal EV connector (EVC-13): SAE J1772 socket, 16 A (type 1, 5P single-phase) Internal power consumption: 2 W max. Operating temperature: -4 °F to 104 °F (-20 °C to 40 °C) Storage temperature: -4 °F to 122 °F (-20 °C to 50 °C) Operating humidity range: 10 % to 85 % relative humidity non-condensing Storage relative humidity: 0 % to 85 % non-condensing Operating altitude: 6561 ft (2000 m) max. Dimensions (H × W × D): Approx. 8.66 x 4.33 x 1.77 in (220 x 110 × 45 mm) without cable assembly Weight: Approx. 4.4 lb (2 kg) Safety standards: IEC 61010-1, Pollution Degree 2 IEC 61010-2-030 Measurement category: CAT II 250 V IP protection class: IP54 USA (FCC): 47 CFR 15 subpart B. This product is considered an exempt device per clause 15.103. CP States: A, B, C, D CP Error “E”: On/off PE Error: On/off GFCI Test: Yes, test resistor of 2 kΩ connected between L1 and PE, time limitation 40 ms PE Pre-Test (typical): Visible indication >30 V on PE conductor Measuring terminals L1, L2/N, PE: Max. 250 V 50/60 Hz, CAT II 250 V CP signal output terminals: Approx. ±12 V (under normal conditions), in case of wrong wiring or error of the charging station these terminals can be hazardous ≥ max. 250 V against PE Without probes and test leads (with BB120): 123B: dc to 20 MHz (-3 dB) 124B and 125B: dc to 40 MHz (-3 dB) Without probes and test leads: <10 Hz (-3 dB) Rise time, excluding probes, test leads: 123B <17.5 ns 124B and 125B <8.75 ns Input impedance Without probes and test leads: 1 MΩ//20 pF Input impedance With BB120: 1 MΩ//24 pF Sensitivity: 5 mV to 200 V/div analogue bandwidth limiter: 10 kHz Display modes: A, -A, B, -B Direct, with test leads, or with VP41 Probe: 600 Vrms Cat IV, 750 Vrms maximum voltage. Max. input voltage A and B With BB120: 600 Vrms Max. floating voltage, from any terminal to ground: 600 Vrms Cat IV, 750 Vrms up to 400Hz Scope modes: Normal, Single, Roll Ranges (normal) Equivalent sampling: 123B: 20 ns to 500 ns/div, Ranges (normal) Real time sampling: 1 μs to 5 s/div Ranges (normal) Single (real time): 1 μs to 5 s/div Ranges (normal) Roll (real time): 1s to 60 s/div Equivalent sampling (repetitive signals): Up to 4 GS/s Real time sampling 1 μs to 60 s/div: 40 MS/s Screen update: Free run, on trigger Source: A, B Sensitivity A and B @ DC to 5 MHz: 0.5 divisions or 5 mV Sensitivity A and B @ 40 MHz: 123B: 4 divisions Sensitivity A and B @ 60 MHz: 123B: N/A Sensitivity A and B Slope: Positive, negative Display modes Normal: Captures up to 25 ns glitches and displays analogue-like persistence waveform Display modes Smooth: Suppresses noise from a waveform Display modes Glitch off: Does not capture glitches between samples Display modes Envelope: Records and displays the minimum and maximum of waveforms over time Auto set (Connect-and-View™): Continuous fully automatic adjustments of amplitude, time base, trigger levels, trigger gap, and hold-off. Manual override by user adjustment of amplitude, time base, or trigger level. Ranges: 500 mV, 5 V, 50 V, 500 V, 750 V Accuracy: ±(0.5% +5 counts) Common mode rejection (CMRR): >100 dB @ dc, >60 dB @ 50, 60, or 400 Hz Full scale reading: 5000 counts DC to 60 Hz (V ac+dc): ±(1% +10 counts) 1 Hz to 60 Hz (V ac): ±(1% +10 counts) 60 Hz to 20 kHz: ±(2.5% +15 counts) DC rejection (only VAC): >50 dB Modes: Max peak, Min peak, or pk-to-pk Accuracy Accuracy Max peak or Min peak: 5% of full scale Accuracy Accuracy Peak-to-Peak: 10% of full scale Frequency range: 15 Hz (1 Hz) to 50 MHz in continuous autoset Accuracy @1 Hz to 1 MHz: ±(0.5% +2 counts) Max reading: 50.00 kRPM Range: 2% to 98% With current clamp Ranges: Same as V dc, V ac, V ac+dc, or PEAK With current clamp Scale factors: 0.1 mV/A, 1 mV/A, 10 mV/A, 100 mV/A, 400 mV/A, 1 V/A, 10 mV/mA With current clamp Accuracy: Same as V dc, V ac, V ac+dc, or PEAK (add current clamp uncertainty) Scale factor: 1 mV/°C and 1 mV/°F 0 dBV: 1 V 0 dBm (600 Ω /50 Ω): 1 mW referenced to 600 Ω or 50 Ω dB on: V dc, V ac, or Vac+dc Resolution: 1 degree Configurations: 1 phase / 3 phase 3 conductor balanced loads (3 phase: fundamental component only, AUTOSET mode only) Power factor (PF): Ratio between watts and VA range - 0.00 to 1.00 Watt: RMS reading of multiplying corresponding samples of input A (volts) and input B (amperes) VA: Vrms x Arms VA reactive (var): √((VA)2-W2) Purpose: To measure on pulse width modulated signals, like motor drive inverter outputs Principle: Readings show the effective voltage based on the average value of samples over a whole number of periods of the fundamental frequency Ranges 123B and 124B: 500 Ω , 5 kΩ, 50 kΩ, 500 kΩ, 5 MΩ, 30 MΩ Ranges 125B: 50 Ω, 500 Ω , 5 kΩ, 50 kΩ, 500 kΩ, 5 MΩ, 30 MΩ Measurement current: 0.5 mA to 50 nA, decreases with increasing ranges Open circuit voltage: <4 V Beep: <(30 Ω ±5 Ω) in 50 Ω range Detection of shorts of: ≥1 ms Measurement voltage @0.5 mA: >2.8 V Measurement voltage @open circuit: <4 V Polarity: + on input A, - on COM Zero Set: Set actual value to reference AutoHold (on A): Captures and freezes a stable measurement result. Beeps when stable. AutoHold works on the main meter reading, with thresholds of 1 Vpp for AC signals and 100 mV for DC signals. Fixed decimal point: Activated by using attenuation keys Sources: A, B Single vertical line: Average, min and max readout Dual vertical lines: Peak-peak, time distance and reciprocal time distance readout Dual horizontal lines: High, low and peak-peak readout Rise or fall time: Transition time, 0%-level and 100%-level readout (manual or auto leveling; auto leveling only possible in single channel mode) Measurement Speed: Maximum 2 measurement/s Record Size (min, max, average): 2 M readings for 1 channel Recorded Time Span: 2 weeks Maximum number of events: 1024 Maximum sample rate: 400 K sample/s Size Internal memory: 400 M samples Recorded Time Span internal memory: 15 minutes at 500 μs/div 11 hours at 20 ms/div Record Size SD card: 1.5 G samples Recorded Time Span SD card: 11 hours at 500 μs/div 14 days at 20 ms/div Readings: Watt, VA, var, PF, DPF, Hz Watt, VA, var ranges (auto): 250 W to 250 MW, 625 MW, 1.56 GW DPF: 0.00 to 1.00 PF: 0.00 to 1.00, ±0.04 Number of Harmonics: DC to 51 Vrms / Arms /Watt: Each harmonic from fundamental maybe selected for individual readings Type Subtype: Protocol AS-i: NEN-EN50295 CAN: ISO-11898 Interbus S RS-422: EIA-422 Modbus RS-232: RS-232/EIA-232 Modbus RS-485: RS-485/EIA-485 Foundation Fieldbus H1: 61158 type 1, 31.25 kBit Profibus DP: EIA-485 Profibus PA: 61158 type 1 Display Type: 5.7-inch color active matrix TFT Display Resolution: 640 x 480 pixels Waveform Display Vertical: 10 div of 40 pixels Waveform Display Horizontal: 12 div of 40 pixels Power External: Via Power Adapter BC430 Power Input voltage: 10 V DC to 21 V DC Power Power consumption: 5 W typical Power Input connector: 5 mm jack Power Internal: Via Battery Pack BP290 Power Battery power: Rechargeable Li-Ion 10.8 V Power Operating time: 7 hours with 50% backlight brightness Power Charging time: 4 hours with test tool off, 7 hours with test tool on Power Allowable ambient temp: 0 to 40 °C (32 to 104 °F) during charging Mechanical Size: 259 x 132 x 55 mm (10.2 x 5.2 x 2.15 in) Mechanical Weight: 1.4 kg (3.2 lb) including battery pack Interface Optically isolated: Transfer screen copies (bitmaps), settings and data Interface USB to PC/laptop: OC4USB optically isolated USB adapter/cable, (optional), using FlukeView® software for Windows®. Interface Optional WiFi adapter: Fast transfer of screen copies (bitmaps), settings and data to PC/laptop, tablet, smartphone, etc. A USB port is provided for attaching the WiFi dongle. Do not use the USB port with a cable for safety reasons. Environmental: MIL-PRF-28800F, Class 2 Temperature Battery Operation: 0 to 40 °C (32 to 104 °F) Temperature Power Adapter Operation: 0 to 50 °C (32 to 122 °F) Temperature Storage: -20 to 60 °C (-4 to 140 °F) Humidity (Operating) @ 0 to 10 °C (32 to 50 °F): Non-condensing Humidity (Operating) @ 10 to 30 °C (50 to 86 °F): 95% Humidity (Operating) @ 30 to 40 °C (86 to 104 °F): 75% Humidity (Operating) @ 40 to 50 °C (104 to 122 °F): 45% Storage @ -20 to 60 °C (-4 to 140 °F): Non-condensing Altitude Operating at 3 km (10,000 feet): CAT III 600 V Altitude Operating at 2 km (6,600 feet): CAT IV 600 V Altitude Storage: 12 km (40,000 feet) EMC electromagnetic compatibility International: IEC 61326-1: Industrial, CISPR 11: Group 1, Class A EMC electromagnetic compatibility Korea (KCC): Class A Equipment (Industrial Broadcasting & Communication Equipment) EMC electromagnetic compatibility USA (FCC): 47 CFR 15 subpart B. This product is considered an exempt device per clause 15.103. Wireless radio with adapter Frequency range: 2412 MHz to 2462 MHz Wireless radio with adapter Output power: <100 mW Enclosure protection: IP51, ref: EN/IEC60529 Safety General: IEC 61010-1: Pollution Degree 2 Safety Measurement: IEC 61010-2-033: CAT IV 600 V/CAT III 750 V Direct on input or with leads: 600 Vrms CAT IV for derating With Banana-to-BNC Adapter BB120: 600 Vrms for derating Voltage DC Maximum voltage: 1000 V Voltage DC Accuracy: ±(0.05% + 1) Voltage DC Maximum resolution: 10 µV Voltage AC Maximum voltage: 1000 V Voltage AC Accuracy: ±(0.7% + 2) True RMS Voltage AC AC bandwidth: 20 kHz with low pass filter; 3 dB @ 1 kHz Voltage AC Maximum resolution: 0.1 mV Current DC Maximum amps: 10 A (20 A for 30 seconds maximum) Current DC Amps accuracy: ±(0.2% + 2) Current DC Maximum resolution: 0.01 µA Current AC Maximum amps: 10 A (20 A for 30 seconds maximum) Current AC Amps accuracy: ±(1.0% + 2) True RMS Current AC Maximum resolution: 0.1 µA Resistance Maximum resistance: 50 MΩ Resistance Accuracy: ±(0.2% + 1) Resistance Maximum resolution: 0.1 Ω Capacitance Maximum capacitance: 9,999 µF Capacitance accuracy: ±(1% + 2) Capacitance Maximum resolution: 0.01 nF Frequency Maximum frequency: 200 kHz Frequency Accuracy: ±(0.005% + 1) Frequency Maximum resolution: 0.01 Hz Duty cycle Maximum duty cycle: 99.9% Duty cycle Accuracy: ±(0.2% per kHz + 0.1%) Duty cycle Maximum resolution: 0.1% Temperature measurement: –200.0 °C – 1090 °C –328.0 °F – 1994.0 °F excluding probe 80 BK temperature probe: –40.0 °C – 260 °C –40.0 °F – 500 °F, 2.2 °C or 2% whichever is greater Conductance Maximum conductance: 60.00 nS Conductance Accuracy: ±(1.0% + 10) Conductance Maximum resolution: 0.01 nS Diode Range: 3 V Diode Resolution: 1 mV Diode Accuracy: ±(2% + 1) Duty cycle range Accuracy: Within ±(0.2% per kHz + 0.1%) Humidity (without condensation): 0% – 90% (0 °C – 35 °C) 0% – 70% (35 °C – 55 °C) Overvoltage category: EN 61010–1 to 1000 V CAT III, 600V CAT IV Agency approvals: CE, CSA, RCM Size: 201 x 98 x 52 mm (with holster) Display digital: 6000 counts updates 4/sec. 19,999 counts in high–resolution mode Display analogue: 32 segments, updates 40/sec Display Frequency: 19,999 counts, updates 3/sec at > 10 Hz Warranty: Lifetime Battery Life Alkaline: ~400 hours typical, without backlight Shock: 1 Meter drop per IEC 61010–1:2001 Vibration: Per MIL–PRF–28800 for a Class 2 instrument

HS Code

9030.33

• OEM-URL https://www.fluke.com/en-us/product/electrical-testing/installation-testers/emobility-kit-125b
