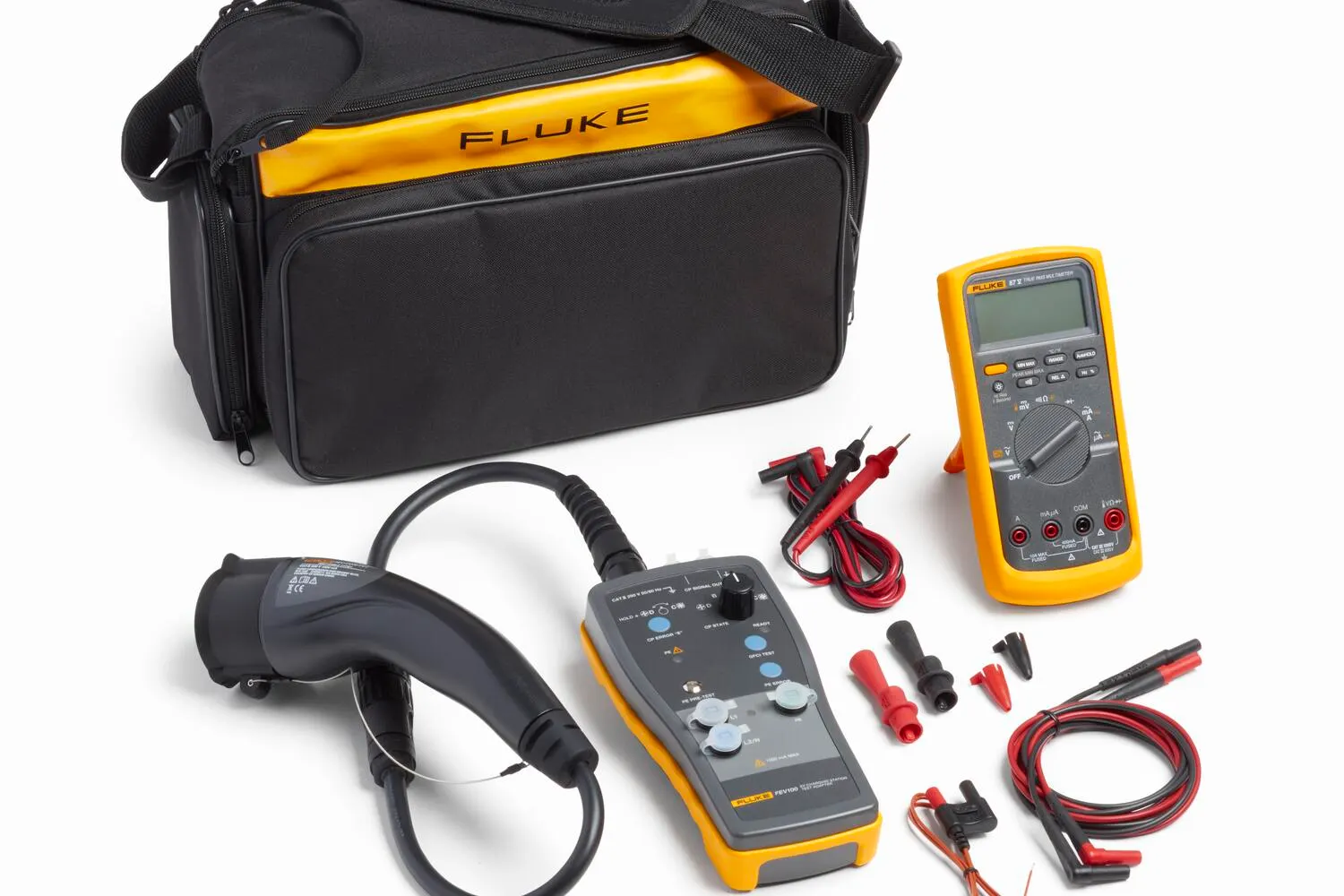

eMobility Tools Kit with FEV100 Test Adapter, 87V Multimeter and Test Leads

Ideal for EVSE installation technicians, the Fluke eMobility Tools Kit includes the FEV100 test adapter, multimeter and test leads.

Manufacturer part number (MPN)

5348150

Brand

Fluke

Category

Tools

Input voltage

UL1/N = 120 V, UL2/N = 120 V, UL1/L2 = 208 V, 60 Hz (three-phase system) or UL1/N = 120 V, UL2/N = 120 V, UL1/L2 = 240 V, 60 Hz (single-phase system), ±10% voltage fluctuations from nominal

EV connector (EVC-13)

SAE J1772 socket, 16 A (type 1, 5P single-phase)

Internal power consumption

2 W max.

Operating temperature

-4 °F to 104 °F (-20 °C to 40 °C)

Storage temperature

-4 °F to 122 °F (-20 °C to 50 °C)

Operating humidity range

10 % to 85 % relative humidity non-condensing

Storage relative humidity

0 % to 85 % non-condensing

Operating altitude

6561 ft (2000 m) max.

Dimensions (H × W × D)

Approx. 8.66 x 4.33 x 1.77 in (220 x 110 × 45 mm) without cable assembly

Weight

Approx. 4.4 lb (2 kg)

Safety standards

IEC 61010-1, Pollution Degree 2 IEC 61010-2-030

Measurement category

CAT II 250 V

IP protection class

IP54

USA (FCC)

47 CFR 15 subpart B. This product is considered an exempt device per clause 15.103.

CP States

A, B, C, D

CP Error “E”

On/off

PE Error

On/off

GFCI Test

Yes, test resistor of 2 kΩ connected between L1 and PE, time limitation 40 ms

PE Pre-Test (typical)

Visible indication >30 V on PE conductor

Measuring terminals L1, L2/N, PE

Max. 250 V 50/60 Hz, CAT II 250 V

CP signal output terminals

Approx. ±12 V (under normal conditions), in case of wrong wiring or error of the charging station these terminals can be hazardous ≥ max. 250 V against PE

Voltage DC Maximum voltage

1000 V

Voltage DC Accuracy

±(0.05% + 1)

Voltage DC Maximum resolution

10 µV

Voltage AC Maximum voltage

1000 V

Voltage AC Accuracy

±(0.7% + 2) True RMS

Voltage AC AC bandwidth

20 kHz with low pass filter; 3 dB @ 1 kHz

Voltage AC Maximum resolution

0.1 mV

Current DC Maximum amps

10 A (20 A for 30 seconds maximum)

Current DC Amps accuracy

±(0.2% + 2)

Current DC Maximum resolution

0.01 µA

Current AC Maximum amps

10 A (20 A for 30 seconds maximum)

Current AC Amps accuracy

±(1.0% + 2) True RMS

Current AC Maximum resolution

0.1 µA

Resistance Maximum resistance

50 MΩ

Resistance Accuracy

±(0.2% + 1)

Resistance Maximum resolution

0.1 Ω

Capacitance Maximum capacitance

9,999 µF

Capacitance accuracy

±(1% + 2)

Capacitance Maximum resolution

0.01 nF

Frequency Maximum frequency

200 kHz

Frequency Accuracy

±(0.005% + 1)

Frequency Maximum resolution

0.01 Hz

Duty cycle Maximum duty cycle

99.9%

Duty cycle Accuracy

±(0.2% per kHz + 0.1%)

Duty cycle Maximum resolution

0.1%

Temperature measurement

–200.0 °C – 1090 °C –328.0 °F – 1994.0 °F excluding probe

80 BK temperature probe

–40.0 °C – 260 °C –40.0 °F – 500 °F, 2.2 °C or 2% whichever is greater

Conductance Maximum conductance

60.00 nS

Conductance Accuracy

±(1.0% + 10)

Conductance Maximum resolution

0.01 nS

Diode Range

3 V

Diode Resolution

1 mV

Diode Accuracy

±(2% + 1)

Duty cycle range Accuracy

Within ±(0.2% per kHz + 0.1%)

Humidity (without condensation)

0% – 90% (0 °C – 35 °C) 0% – 70% (35 °C – 55 °C)

Overvoltage category

EN 61010–1 to 1000 V CAT III, 600V CAT IV

Agency approvals

CE, CSA, RCM

Size

201 x 98 x 52 mm (with holster)

Display Digital

6000 counts updates 4/sec. 19,999 counts in high–resolution mode

Display Analog

32 segments, updates 40/sec

Display Frequency

19,999 counts, updates 3/sec at > 10 Hz

Warranty

Lifetime

Battery Life Alkaline

~400 hours typical, without backlight

Shock

1 Meter drop per IEC 61010–1:2001

Vibration

Per MIL–PRF–28800 for a Class 2 instrument

HS Code

9030.33

• OEM-URL https://www.fluke.com/en-us/product/electrical-testing/installation-testers/emobility-kit-87v
