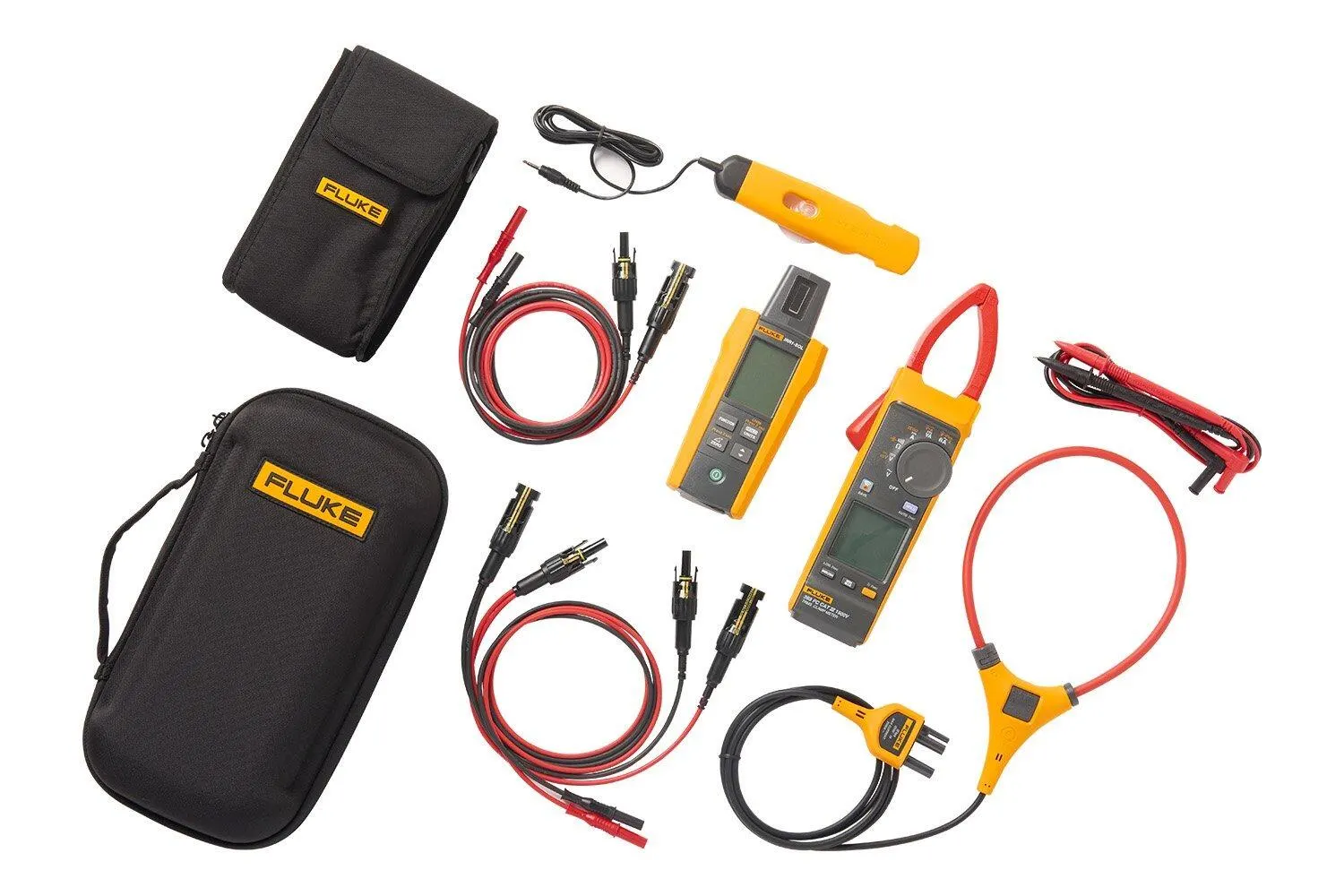

Solar Tools Kit with 393 FC Clamp Meter, Irradiance Meter and Solar Test Leads

Get the CAT III 1500 V 393 Solar Clamp Meter in the Fluke solar tools kit including the irradiance meter and solar test leads.

Manufacturer part number (MPN)

5337401

Brand

Fluke

Category

Tools

Temperature Coefficients

Add 0.1 x specified accuracy for each °C > 28 °C or < 18 °C

Distance from Optimum i2500-10 Flex

i2500-18 Flex

A 0.5 in (12.7 mm)

1.4 in (35.6 mm)

B 0.8 in (20.3 mm)

2.0 in (50.8 mm)

C 1.4 in (35.6 mm)

2.5 in (63.5 mm)

International

IEC 61326-1: Portable, Electromagnetic Environment, IEC 61326-2-2 CISPR 11: Group 1, Class A

Korea (KCC)

Class A equipment (Industrial Broadcast & Communications Equipment)

USA (FCC)

47 CFR 15 subpart B. This product is considered an exempt device per clause 15.103.

Measuring Range

0 to 1400 W/m²

Resolution

1 W/m²

Measuring Accuracy

± (5 % + 5 Digit)

Measuring range (°C)

-22 °F to 212 °F (-30 °C to 100 °C)

Operating Temperature IRR1-SOL

-20 °C to 50 °C (humidity <80%), noncondensing

Operating Temperature 80PR-IRR

-30 °C to +100 °C

Storage Temperature

-30 °C to 60 °C (humidity <80%)

Altitude

0 m to max. 2000 m

IP Protection

IP40

Batteries

4 AA Alkaline Batteries

Battery Life (typical)

50 hours (≤9000 readings)

Auto Power Off

30 minutes

L x W x H

5.90 x 3.14 x 1.37 in (150 x 80 x 35 mm)

Weight

0.5 lb (231 g)

PVLEAD1

PVLEAD3

Length 60”

36”, 12”

HS Code

9030.33
