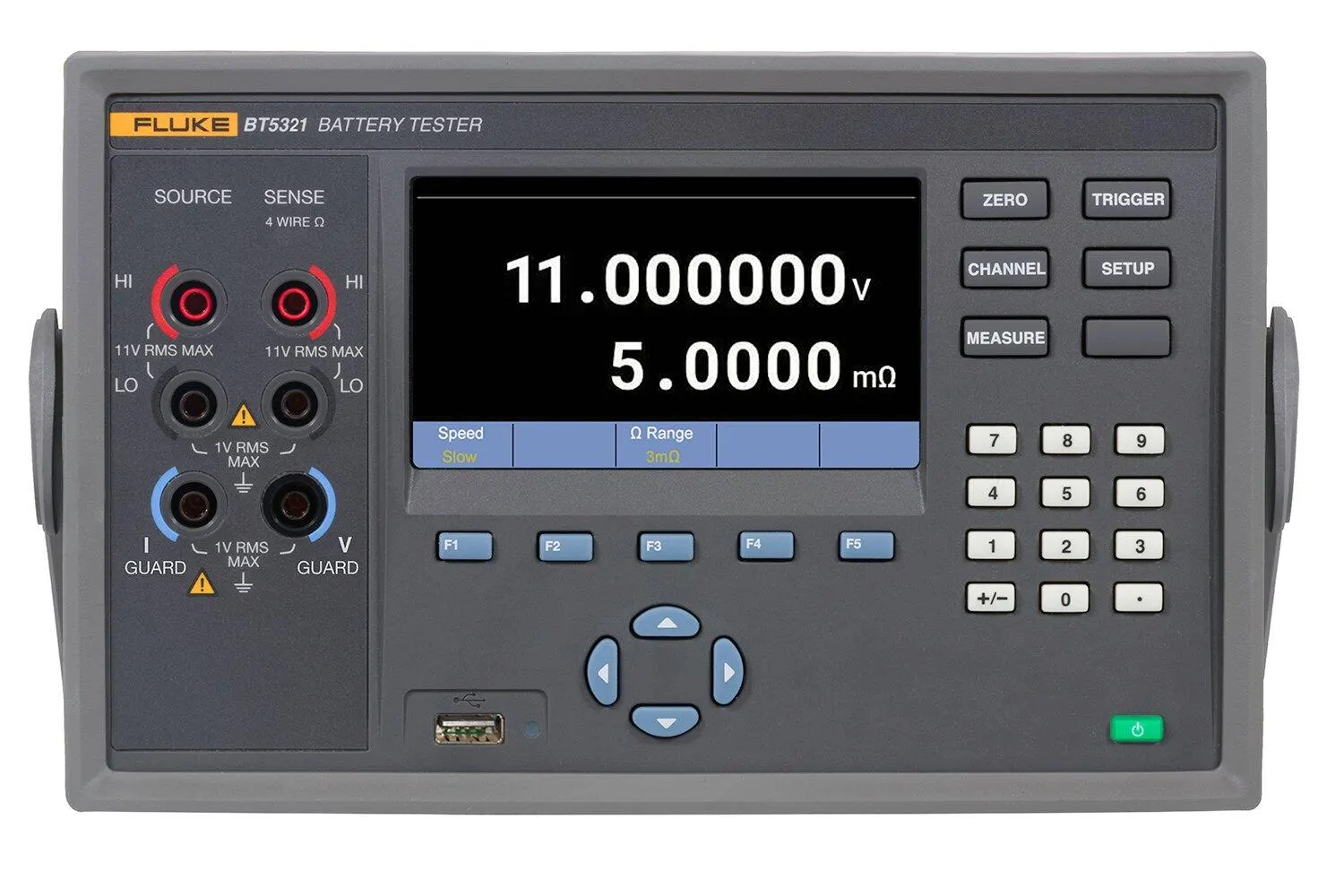

Fluke BT5300 Series Battery Tester
Pricing
Request a quote
We reply within 24 hours
Product Description
The Fluke’s first product for battery sorting, 6.5/7.5-digit voltmeter + high-accuracy battery tester + multiplexer cards - three-in-one, 7 major performance improvements
Technical Specifications
- Manufacturer part number (MPN)
- 5319188
- Brand
- Fluke
- Category
- Tools
- Functions
- ACR, DCV, enclosure potential measurement
- Measurement method
- AC 4-wire method (1 kHz)
- Rated input
- DC ±11V
- Input impedance
- 10 MΩ, high-z (>10 GΩ)
- Sampling speed
- Ex-Fast, Fast, Medium, Slow
- Allowable total line resistance
- ≤ 10Ω @ 3 mΩ measurement range
- Trigger
- Internal/external
- Trigger delay
- ON/OFF, Delay time: 0 to 9.999 s
- Average
- ON/OFF, Average count: 2 to 16
- Measurement storage
- Up to 512 sets
- Channel extension
- Internal: Up to 2 SW9010 multiplexer cards can be added for up to 64 channels (BT5311 and BT5321 only) External: Up to 256 channels by using SW1080 switch mainframe
- External interface
- RS-232C , LAN
- Other functions
- Contact check
- Ex-Fast
- 10 ms / 8.3 ms
- Fast
- 20 ms / 16.7 ms
- Medium
- 100 ms / 83.3 ms
- Slow
- 200 ms / 166.7 ms
- Range 3 mΩ
- 30 mΩ
- Max. Display value 5.0000 mΩ
- 50.000 mΩ
- Resolution 0.1 µΩ
- 1 µΩ
- Test current1 100/200/300 mA²
- 100 mA
- Test current frequency
- 1 kHz ± 1Hz
- Accuracy³
- 0.2% * rdg + 6 dgt
- Temperature coefficient （ 28 °C）
- (0.05% * rdg + 0.005% * F.S.) / °C
- BT5310/BT5311
- BT5320/BT5321
- Digit 6.5 digits
- 7.5 digits
- Range
- 10 V
- Max. Display value ±11.00000V
- ±11.000000V
- Resolution 10 µV
- 1 µV
- Accuracy1 25 ppm * rdg + 50 µV
- 18 ppm * rdg + 25 µV
- (5 ppm * rdg + 1 ppm * F.S.) / °C
- (1 ppm * rdg + 1 ppm * F.S.) / °C
- Features BT5310
- BT5311
- DCV resolution 6.5 digit
- 7.5 digit
- No
- Yes. Up to 2 cards
- Dimensions (W x H x L)
- BT5300 Battery Tester: 216 mm x 133 mm x 383 mm
- Weight
- BT5300 Battery Tester: 7.3 kg (Without SW9010)
- Display
- 4.3-inch TFT LCD, resolution 480 x 272
- Operation temperature
- 0 °C to +40 °C
- Storage temperature
- -10 °C to +50 °C
- Altitude
- 3000 m
- Storage altitude
- 12000 m
- Rated voltage
- AC 100V to 240V (Auto-selection)
- Rated frequency
- 50/60Hz
- Rated power
- 60 VA
- Safety
- IEC 61010-1: Pollution Degree 2
- EMC
- IEC 61326-1: Industrial
- Warranty
- BT5300 Battery Tester: 3 years SW1080 Switch Mainframe: 3 years SW9010 Multiplexer Card: 1 year Note: Relays, fuses and connectors are not covered by warranty.
Standards & Compliance
- HS Code
- 9030.33
