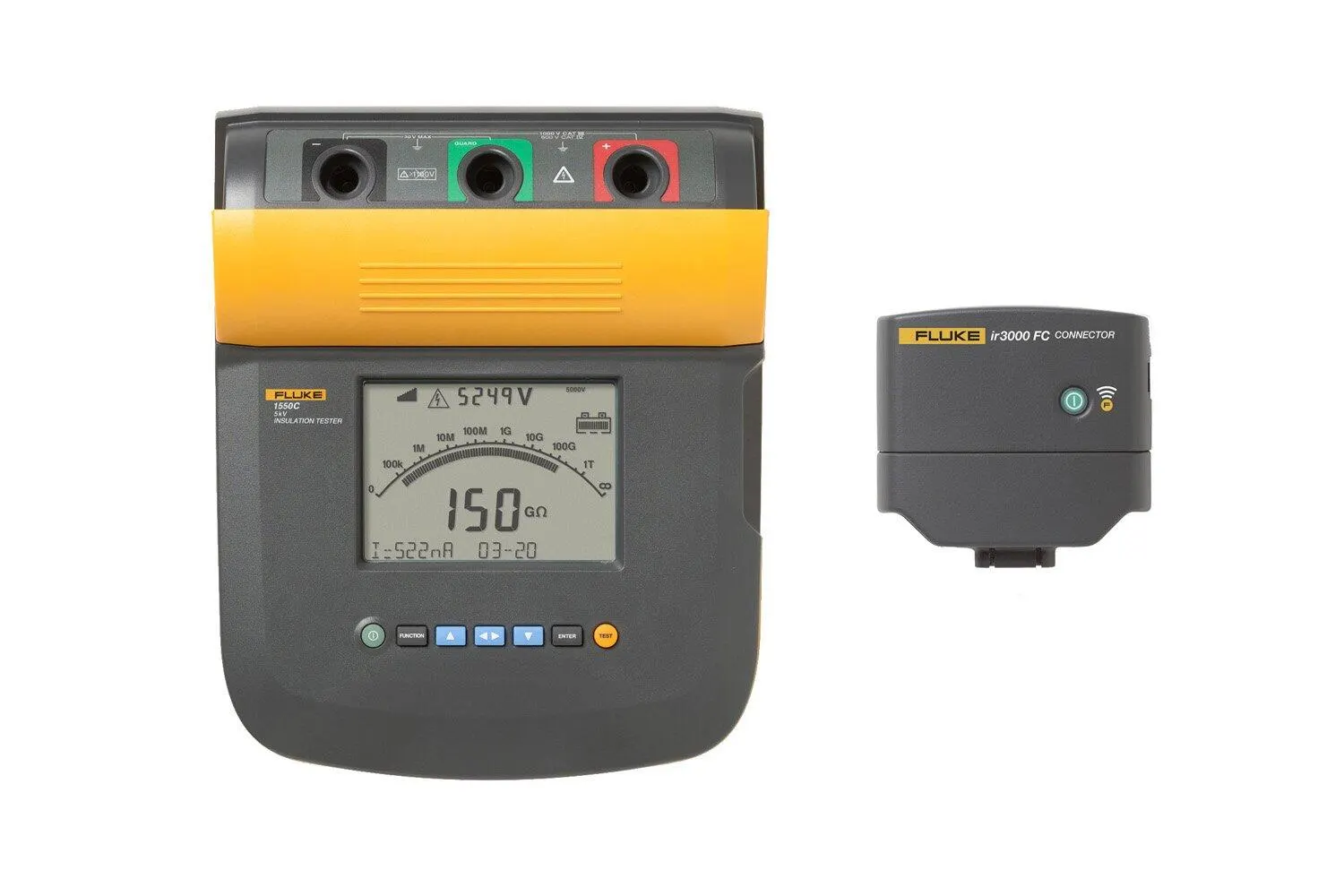

Fluke 1550C FC 5 kV Digital Insulation Tester
Pricing
Request a quote
We reply within 24 hours
Product Description
The Fluke 1550C is a megohmmeter insulation resistance tester that offers insulation testing for up to 5 kV; this Fluke insulation tester is ideal for high voltage equipment like switch gear, motors, & cables.
Technical Specifications
- Manufacturer part number (MPN)
- 4977402
- Brand
- Fluke
- Category
- Tools
- 250 V Range
- 50 GΩ
- 250 V Accuracy (± reading)
- Unspecified 5% 20% Unspecified
- 500 V Range
- 100 GΩ
- 500 V Accuracy (± reading)
- Unspecified 5% 20% Unspecified
- 1000 V Range
- 200 GΩ
- 1000 V Accuracy (± reading)
- Unspecified 5% 20% Unspecified
- 2500 V Range
- 500 GΩ
- 2500 V Accuracy (± reading)
- Unspecified 5% 20% Unspecified
- 5000 V Range
- 1 TΩ
- 5000 V Accuracy (± reading)
- Unspecified 5% 20% Unspecified
- Bar graph range
- 0 to 1 TΩ (1550C) - 0 to 2 TΩ (1555)
- Insulation test voltage accuracy
- -0%, +10% at 1 mA load current
- Induced AC mains current rejection
- 2 mA maximum
- Charging rate for capacitive load
- 5 seconds per μF
- Discharge rate for capacitive load
- 1.5 s/μF
- Leakage current measurement Range
- 1 nA to 2 mA
- Leakage current measurement Accuracy
- ± (20% + 2 nA)
- Capacitance measurement Range
- 0.01 μF to 15.00 μF
- Capacitance measurement Accuracy
- ± (15% rdg + 0.03 μF)
- Timer Range
- 0 to 99 minutes
- Timer Resolution setting
- 1 minute
- Timer Resolution indication
- 1 second
- Live circuit warning Warning range
- 30 V to 660 V AC/DC, 50/60 Hz
- Live circuit warning Voltage accuracy
- ± (15% + 2 V)
- Software specifications
- FlukeView Forms™ basic software requires a PC running Windows XP, Windows Vista , Windows 7 or Windows 8.
- Display
- 75 x 105 mm
- Power
- 12 V lead-acid rechargeable battery, Yuasa NP2.8-12
- Charger Input (AC)
- 85 V to 250 V AC 50/60 Hz 20 VA
- Dimensions
- 269 x 277 x 160 mm (10.6 x 10.9 x 6.3 in)
- Weight
- 3.7 kg (8.2 lb)
- Temperature (operating)
- -20°C to 50°C (-4°F to 122°F)
- Temperature (storage)
- -20°C to 65°C (-4°F to 149°F)
- Humidity
- 80% to 31°C decreasing linearly to 50% at 50°C
- Altitude
- 2000 m
- Enclosure sealing
- IP40
- Input overload protection
- 1000 V AC
- Electromagnetic compatibility
- EN 61326
- Safety compliance
- IEC 61010-1: Overvoltage category II, Pollution Degree 2. IEC 61010-2-030: Measurement 600V CAT IV / 1000V CAT III IEC 61557-1, IEC 61557-2
Standards & Compliance
- HS Code
- 9030.33
Cross References
- OEM-URL https://www.fluke.com/en-us/product/electrical-testing/insulation-testers/fluke-1550c
Product Documentation
More from Fluke
Fluke
Fluke 1623-2 GEO Earth Ground Resistance Meter
4325155
Fluke

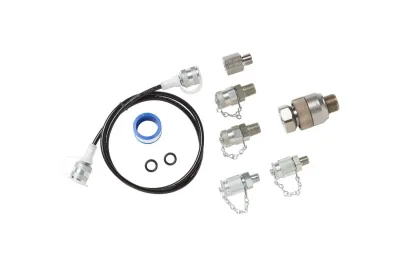

Fluke 700M20TH Premium Transmitter Test Hose Kit
4623338
Fluke

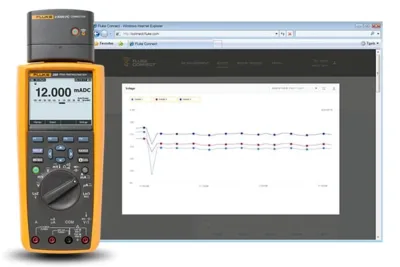

Fluke 289 True-RMS Data Logging Multimeter
2675778
Fluke

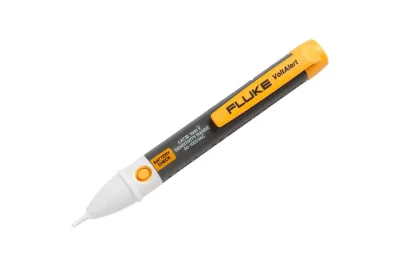

Fluke 2AC Non-Contact Voltage Tester
3807928
Fluke

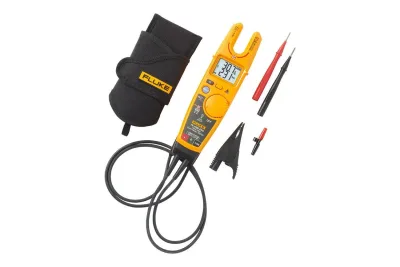

Fluke T6-1000 PRO Electrical Tester
5134747
Fluke

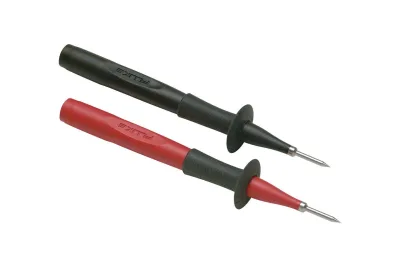

Fluke TP220 SureGrip™ Industrial Test Probes
1670056
Fluke

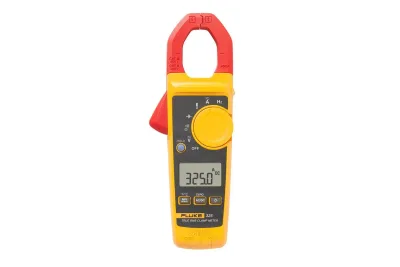

Fluke 325 True RMS Clamp Meter
5065866
Fluke

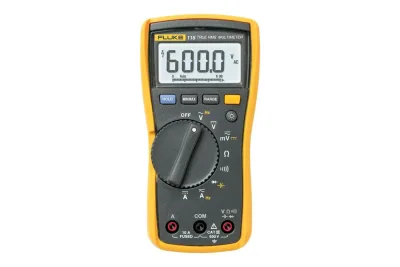

Fluke 115 Field Technicians Digital Multimeter
